System Requirements
• USB Requirements
- Windows 2000, XP, Vista / MAC OS 9.0 higher / Linux 2.4.x higher
- Available USB 2.0, 1.1 Port (Recommend USB 2.0)
• Network Requirements
- Windows 2000, XP, Vista
- Available 10/100 Ethernet LAN Port, RJ-45 (Recommend 100Mbps)
Package Content
• Mediastation network multimedia drive, Remote Control (+Battery), Stand, Composite video / Stereo audio cable, USB Cable, External AC
Power Adapter, User manual CD , Quick start guide
Product Overview
1. Use as External USB HDD
1.1 Copy Data via USB
Your MediaStation may be used an external hard drive for your PC once connected via USB port. Once connection via USB port is made video
outputs will be disabled.
* When connecting PC, you have to connect power cable of MediaStation.
① POWER
② PLAY/PAUSE
③ PRE / REW / LEFT
⑥ PWR
⑦ NET
⑧ HDD
⑨ IR
④ NEXT / FF / RIGHT
⑤ STOP / DOWN
① LAN
② USB
③ OPTICAL
⑤ S-VIDEO
⑦ Y, PB, PR
⑨ PWR
⑩ STEREO L-R
⑪ COAXIAL
⑪ CVBS
Back View Front View

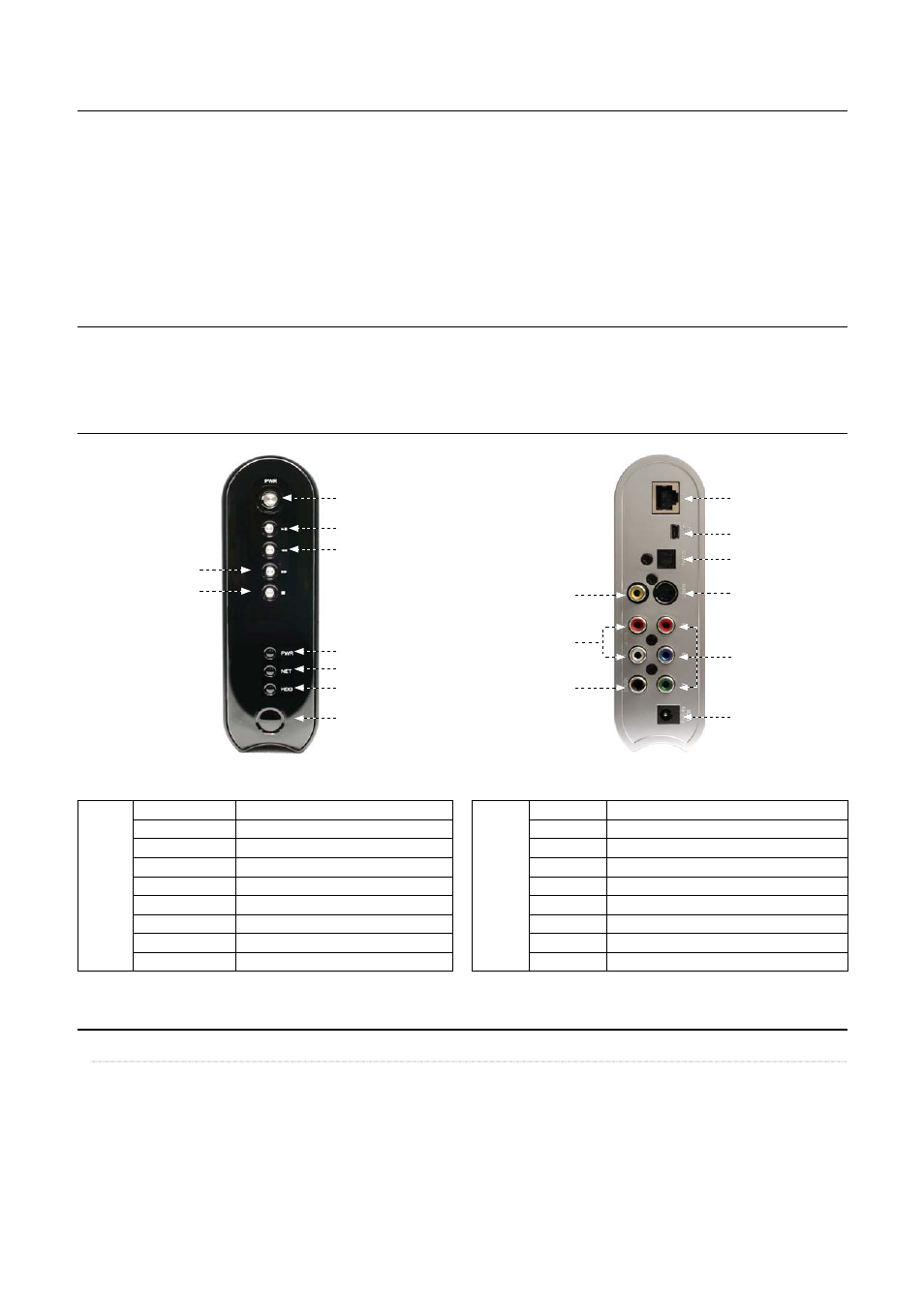

Front View
① POWER Power On, Off
② PLAY / PAUSE Play all fi les from selected fi le / Pause
③ PRE / REW / LEFT Go to the previous page or Rewind / Left key
④ NEXT / FF / RIGHT Go to the next page or Fast Forward / Right key
⑤ STOP / DOWN Stop / Scroll down key
⑥ IPWR Power LED
⑦ NET Network LED
⑧ HDD HDD running LED
⑨ IR IR Receiver
Back View
① USB Connect USB cable
② OPTICAL Connect Optical cable for 5.1 ch. digital audio output
③ S-VIDEO Connect s-video for video output
④ COAXIAL Connect coaxial cable for 5.1 ch. digital audio output
⑤ Y, PB, PR Connect component Y, Pb, Pr cable for video output
⑥ LAN Connect Lan cable for networking
⑦ PWR Connect power cable
⑧ CVBS Connect composite cable for video output
⑨ STEREO L-R Connect stereo cable for audio output
