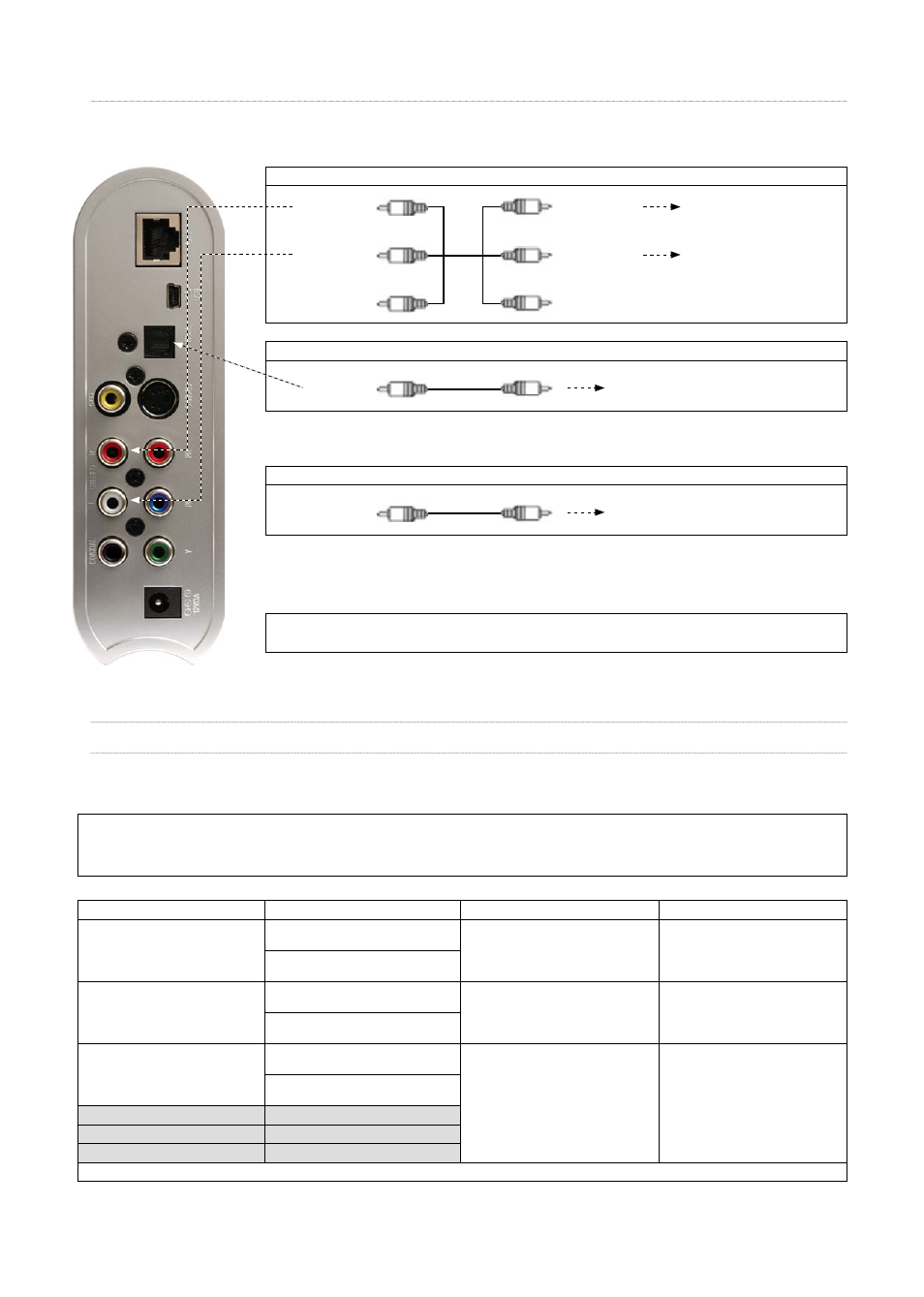

③ Coaxial: Coaxial cable for Digital 5.1 ch. (not supplied)
② Optical ( ): Optical Cable for Digital 5.1 ch. (not supplied)
① Stereo: Red & White RCA Cable (supplied)
Red (STEREO-R) Red (STEREO-R)
White (STEREO-L) White (STEREO-L)
Connect to Composite
(CVBS) Jack of TV
Connect to Composite
(CVBS) Jack of TV
OPTICAL ( )
COAXIAL
Connect Optical Jack of Amplifi er or Receiver
Connect Coaxial jack of Amplifi er or Receiver.
3.1.2 Connect Audio Cable
MEDIASTATION supports 3 type of audio output; “Stereo, Coaxial, Optical”. Use audio connection that your TV or Audio set supports. Normally,
TV supports stereo audio connection, and this package supplies stereo audio cable
3.2 Basic Setup
3.2.1 Video Setup
This is guide for setting video output of MEDIASTATION. You have to setup MEDIASTATION video output mode same as TV set’s video input
mode.
✓ When you can not see normal screen after connecting video cable, check followings,
1. “TV “– Switch to Video Input Mode: Turn on TV, and switch to video input mode same as video connection. See TV user manual.
2. “MEDIASTATION” – Switch to Video Output Mode: Press [VIDEO] button repeatedly. Whenever press [VIDEO], video output signal is changed.
3. After you see normal screen, you have to save video confi gurations of MEDIASTATION.
✓ When you can not hear sound after connecting Optical or Coaxial Cable, you have to change audio setup of MediaStation as Encoded
Digital. See “3.2.2 Audio Setup”
✓ Don’t connect optical and coaxial cable together at the same time.
TV Video Input Mode MEDIASTATION Video Output Mode Connection Jack of TV, MEDIASTATION Video Cable Type
Normal Video
TV Out: NTSC C/S-Video
(HD Component OFF)
CVBS or Composite Jack
(Generally Yellow Jack) Yellow RCA Cable
(Supplied)
TV Out: PAL C/S-Video
(HD Component OFF)
S-Video
TV Out: NTSC C/S-Video
(HD Component OFF)
S-Video Jack
S-Video Cable
* Black rounded
TV Out: PAL C/S-Video
(HD Component OFF)
Component 480i
TV Out: NTSC C/YPbPr
(HD Component OFF)
Component 3 Jack
* Y(Green), Pb(Blue), Pr(Red) Component Cable
* Y(Green), Pb(Blue), Pr(Red)
TV Out: PAL C/YPbPr
(HD Component OFF)
Component 480p HD Component Out On 480p
Component 720p HD Component Out On 720p
Component 1080i HD Component Out On 1080i
✓ NTSC, PAL : Standard of TV Output. Select a proper one for using in your country.
