Getting connected continued
Connecting TVs/Monitors to the DA-8808VE
The DA-8808VE has three VIDEO OUTPUT jacks which send video and/or decoded CD+G graphics patched
from your players to TVs and other video monitor devices. This enables multiple TV configurations for per-
formers to enjoy and KJs and VJs to program a set.

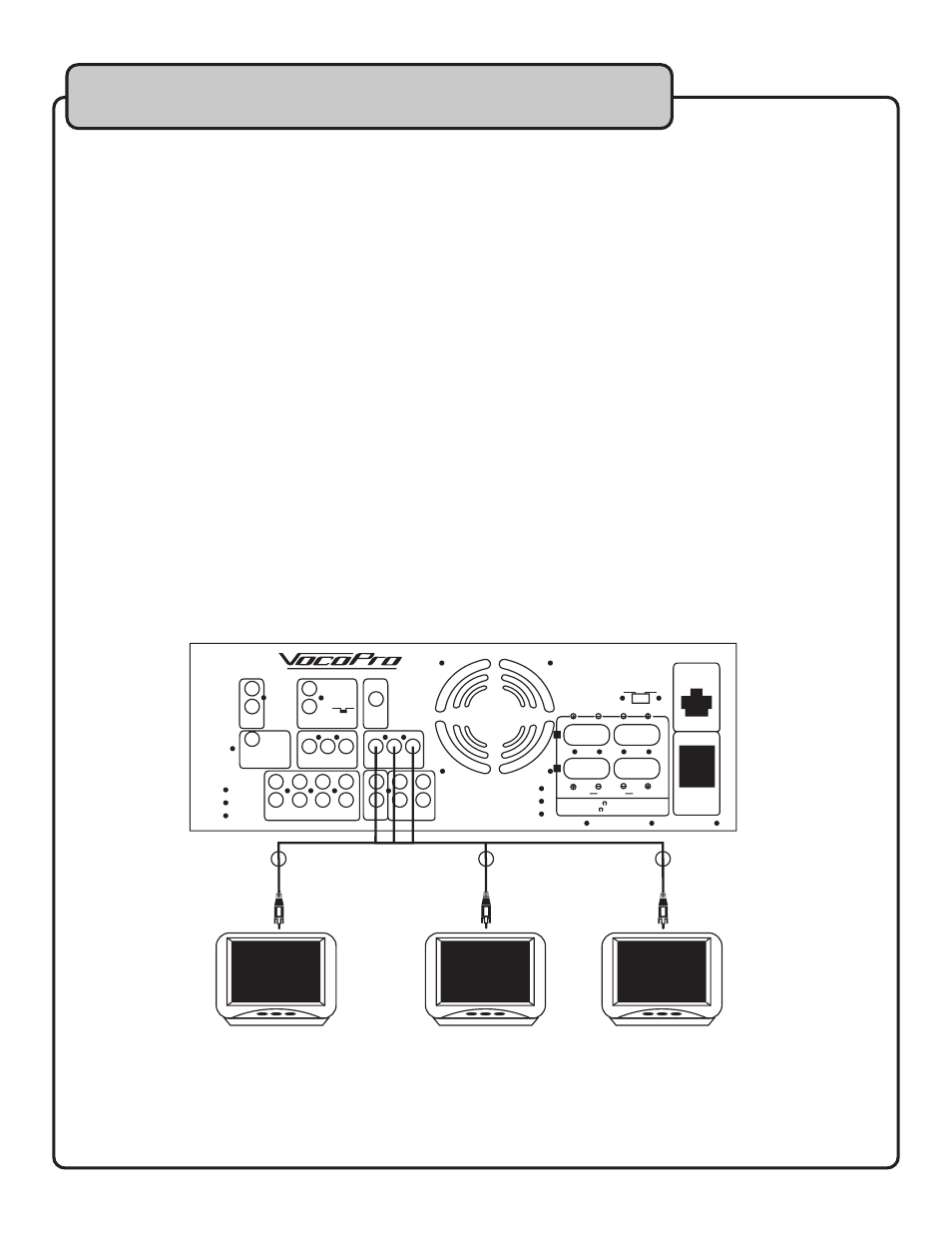

1. Connect RCA style video cables from VIDEO OUTPUT jacks 1, 2 and 3 on the DA-8808VE to the VIDEO
INPUT jack on your TV or other monitor. You may need to manually switch your TV to video mode, while
some models automatically switch when a video signal is detected. On most TVs, the INPUT jack is labeled
AUX or VIDEO.
-- If the TV does not have a VIDEO IN jack, you may be able to connect the video cable to the
VIDEO INPUT of a VCR or DVD player and connect the RF OUTPUT on the VCR or DVD
player to the TV ANTENNA INPUT jack.
-- If you do not have a VCR or DVD player, you will need to use an RF Modulator to make the
adaption between jacks. RF Modulators are easy to find in the electronics section of many
stores.
