COOKING
Professional Built-In Gas 36”W. Oven
VGSO166
36”W. Single Oven
✪
Please see
Installation Notes
and Accessories for
important installation
information, including
center trim and
conversion kits.
Star-K Kosher
certification for use
on the Jewish
Sabbath or Jewish
holidays
VGSO166 VGSO166 X 2 + trim
Overall width 35-1/4” (89.5 cm)
Overall height 23” (58.4 cm) 48.5” (123.2 cm)
Overall depth (from rear)
To edge of side 25-1/4” (64.1 cm)
To end of handle bracket 27-3/8” (69.5 cm)
With door open 39-1/2” (100.3 cm)
Interior (each oven)
Width 24-1/8” (61.3 cm)
Height 13-3/4” (34.9 cm)
Depth 17-1/8” (43.5 cm)
Approx. ship weight 257 lbs. (115.7 kg)
VGSO166 VGSO166 X 2 + trim
Dimensions & Specifications

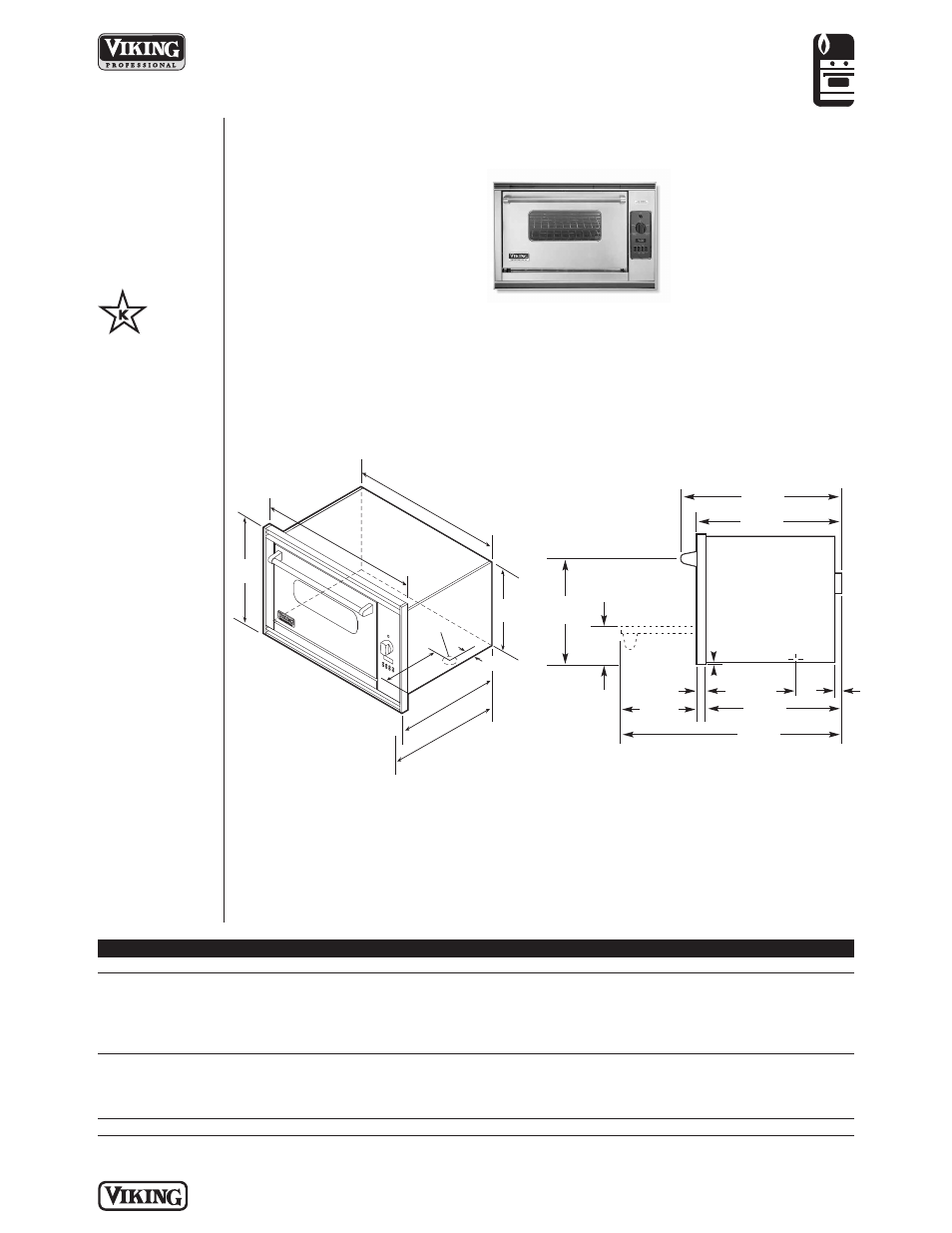

PRODUCT DIMENSIONS & DOOR SWING
ALL MODELS
27
-3/
8”
(69
.5
cm
)
33-3
/4“ (85.7
cm
)
11
-7/
8“
(30
.2
cm
)
35-1
/4” (89.5
cm
)
25
-1/
4”
(64
.1
cm
)
2-1
/8“ (5.4
cm
)
Gas inlet
22-1
/2” (57.2
cm
)
23”
(58.4
cm
)
39-7/8”
(101.3 cm)
1/4”*
(.6 cm)
27-3/8”
(69.5 cm)
25-1/4”
(64.1 cm)
5-13/16”
(14.8 cm)
1-3/8”
(3.5 cm)
14-5/8”
(37.1 cm)
23-7/8”
(60.6 cm)
Gas inlet
11-7/8”
(30.2 cm)
2”
(5.1 cm)
19-3/16”
(48.7 cm)
Note: Bottom of cutout to bottom of trim-used for installing warming drawer below oven.
