3. To install the sensor on a length of thick-walled PVC pipe, remove and replace the Quick Clip
bracket with the pipe-mount adapter. To provide friction between the components, ensure the
star washer is installed between the adapter and housing tab as shown in Figure 14.
4. Check the sensor module for vertical alignment. To adjust, loosen the bracket screw slightly,
align vertically and tighten screw. See Figure 15.

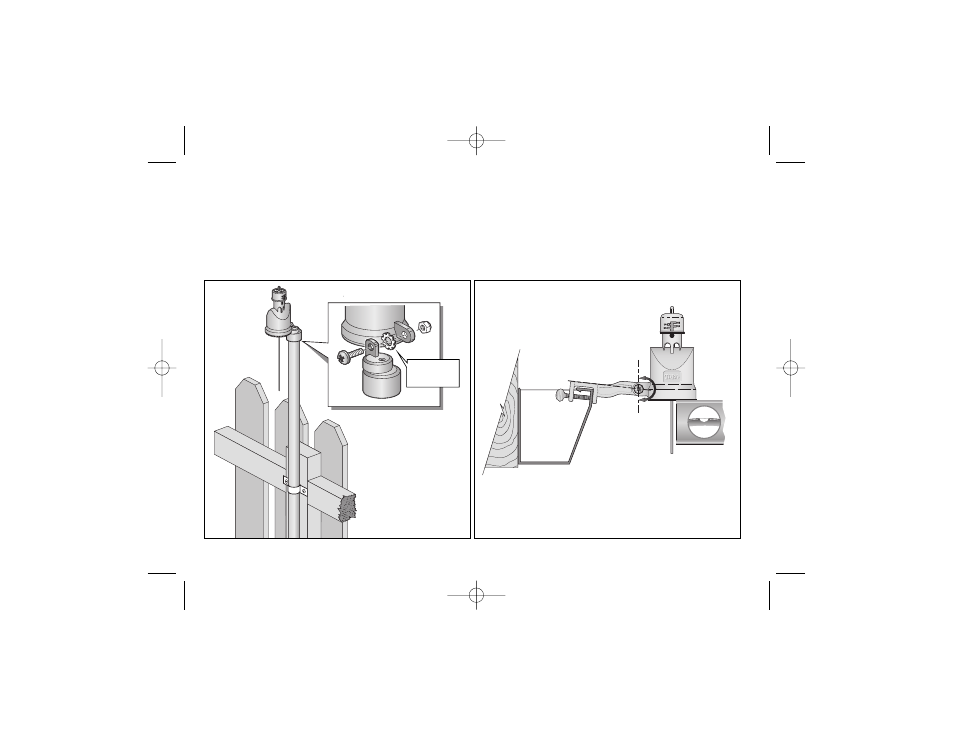

Figure 14 Figure 15
Star
Washer
