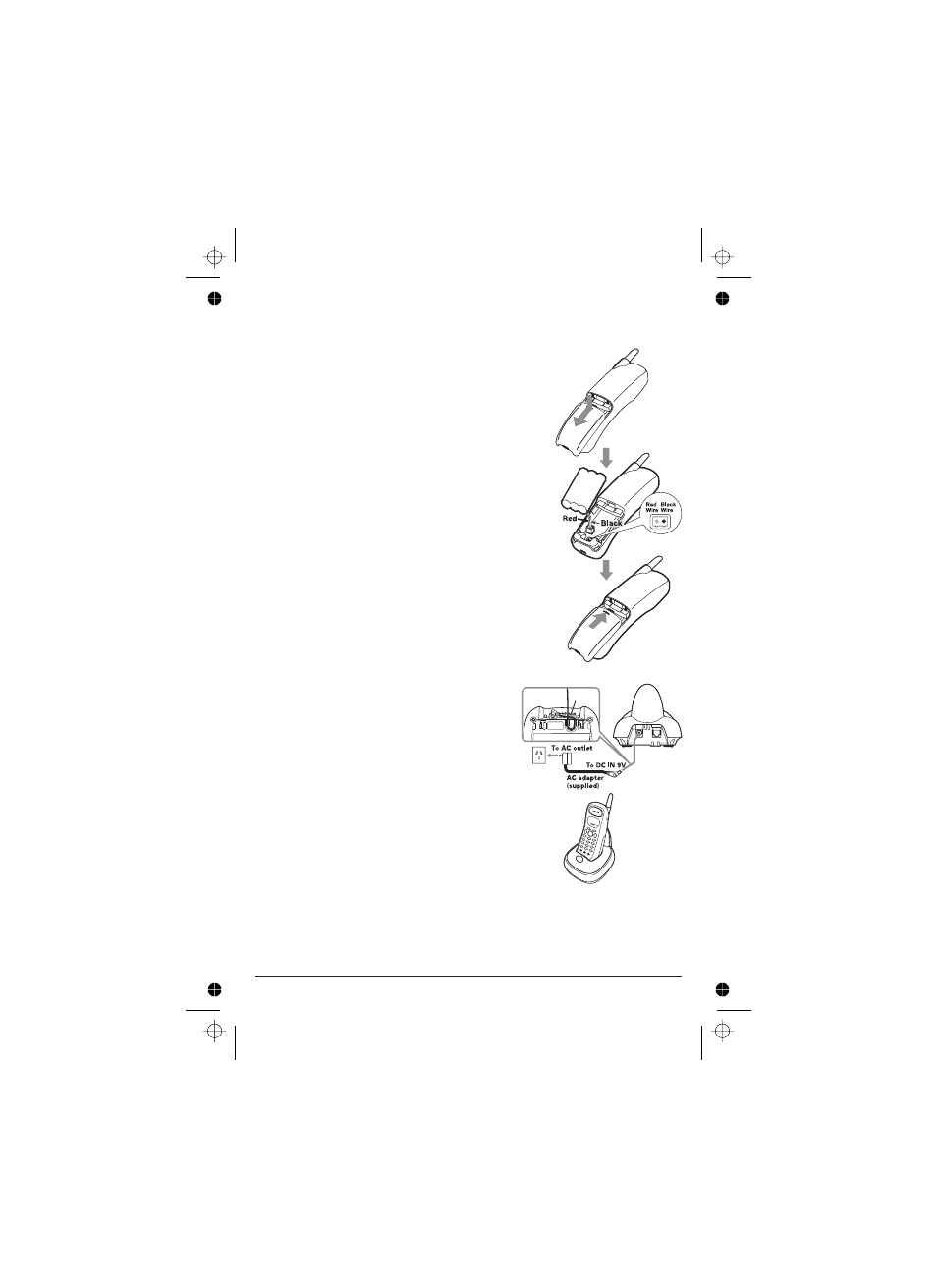

B. Install the rechargeable battery pack into the handset
C. Connect the base unit and charge the handset
The handset is powered by a rechargeable battery pack. The battery recharges
automatically when the handset is placed in the base unit.
1. Press down on the handset battery case cover
(use the finger indention for a better grip) and
slide the cover downward to remove.
2. Plug the battery pack connector (red & black wires) into
the jack inside the battery compartment (the connector
notches fit into the grooves of the jack only one way).
Match the wire colours to the polarity label in the battery
compartment, connect the battery and listen for a click
to insure connection.
3. Before replacing the battery cover, pull on the battery
wires slightly. If the connection is secure, the jack will
stay in place. Then place the battery case cover back on
the handset by sliding it upwards until it clicks into place.
1. Connect the AC adaptor to the jack
and a standard wall outlet.
2. Set the base unit on a desk or tabletop, and
place the handset in the base unit with the
keypad facing forward.
3. Make sure the LED illuminates.
If the LED does not illuminate, check to see that the
AC adaptor is plugged in and the handset makes
good contact with the base charging contacts.
4. Charge your handset at least
NOTE:
NOTE: For optimum performance, use only the Uniden
battery (BT- 905) supplied with your phone.
charge/in use
NOTICE:
NOTE: • Use only the supplied AAD-210 AC adaptor.
Do not use any other AC adaptor.
If your home has specially wired alarm equipment
connected to the telephone line, be sure that
installing the system does not disable your alarm
equipment. If you have questions about what will
disable your alarm equipment, contact your
telephone company or a qualified installer.
Do not place the power cord where it creates
a trip hazard or where it could become chafed and
create a fire or electrical hazard.
• Connect the AC adaptor to a continuous power supply.
• Place the base unit close to the AC outlet to avoid long extension cords.
DC IN 9V
240V AC
15-20 hours before plugging the phone line.
When fully charged the battery will provide up to 7hrs talk time and 14
days standby time.
