INSTALLATION
INSTALLATION OPTIONS
Ì Read this entire manual before you install and use your Ashley Heritage stove. Failure to follow
instructions may result in property damage, bodily injury, or even death!
(See specific installation details for clearances and other installation requirements)
A Freestanding Unit—supported by (4) legs and placed on a non-combustible floor surface in compliance with
clearance requirements for a freestanding stove installation.
An Alcove Unit—supported by (4) legs and placed on a non-combustible floor surface in compliance with clearance
requirements for an alcove installation.
Your Ashley Heritage Model 5700 stove may be installed to code in either a conventional or mobile home
(see SPECIAL MOBILE HOME REQUIREMENTS).
It is recommended that only a authorized technician install your Ashley Heritage stove, preferably an NFI certified
specialist.
FLOOR PROTECTION
This unit must be installed on a non-combustible floor surface. If a floor pad is used, it should be UL listed or equal.
The floor pad or non-combustible surface should be large enough to extend a minimum of 6-inches in front, 6-
inches on each side, and 1-inch behind the stove (see FIGURE 1).
Floor protection must extend under and 2-inches to each side of the chimney tee for an interior vertical installation
(see FIGURE 2).
Your Ashley Heritage Model 5700 stove will need a minimum 36 1/4” x 30 3/8” floor protector.
CLEARANCES
IMPROPER INSTALLATION: The manufacturer will not be held responsible for damage caused by the
malfunction of a stove due to improper venting or installation. Call (800) 750-2723 and/or consult a pro-
fessional installer if you have any questions.

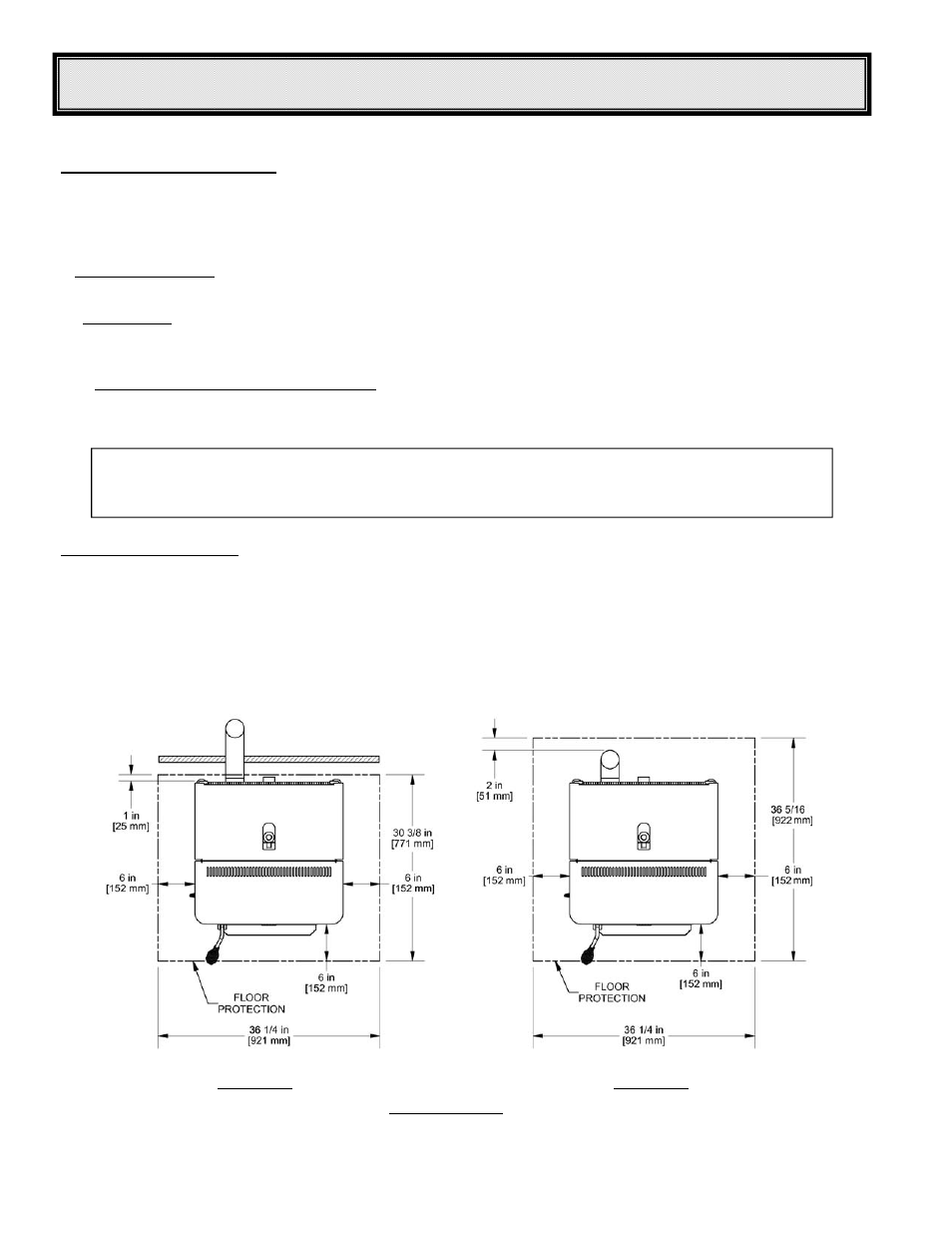

FIGURE 1
THROUGH THE WALL INSTALLATION
FIGURE 2
INTERIOR VERTICAL INSTALLATION
