Reversing the Door
All units may be left- or right-hand opening.
Note: The grille should not yet be installed. If it has been installed,
remove it for door reversing.
To reverse the door:

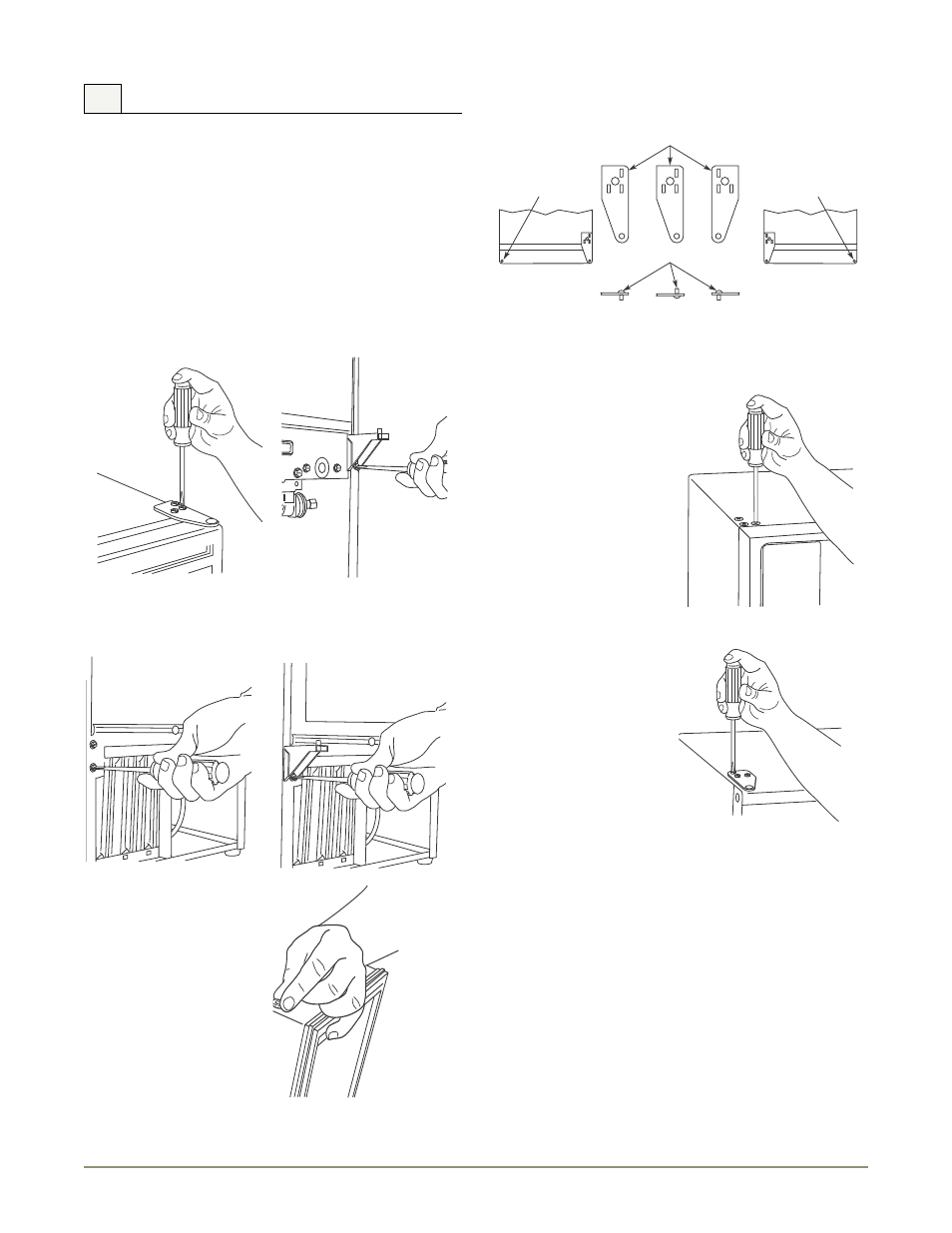

1. Remove top hinge from cabinet (three screws). See Figure 1.
Hold door to keep it from falling.
2. Lift the door off the bottom hinge.
3. Remove bottom hinge from cabinet (two screws). See Figure 2.
Remove screws on opposite side of cabinet (Figure 3). Note
that there may be a nut behind one or both screws on either
side.
4. Install hinge on opposite side,
bottom of cabinet. See
Figure 4. Replace nut on
back side where installed.
Align hinge outer edge with
cabinet before tightening
screws.
5. Relocate plastic spacer/
bushing on bottom of door
to opposite side, and place
door on bottom hinge pin.
See Figure 5. Clean out
bushing hole in door bottom
with a screwdriver if necessary.
6. Remove plastic hole plug from door handle and relocate on
opposite side. See Figure 6.
7. Remove pivot screw from top hinge, invert screw and reinstall
pivot screw in top hinge. See Figure 7.
8. Remove three plastic screw
plugs from hinge holes, top of
cabinet, opposite side. Be
careful not to scratch
cabinet. See Figure 8.
9. Place door on lower hinge
pin. Invert and install upper
hinge on door.
10. Fasten upper hinge to unit
(three screws). Partially
tighten screws. See Figure
9.
11. Adjust door to assure proper
seal. Tighten upper and lower
hinge screws securely.
12. Replace three plastic plugs
removed in Step 8 into holes
on top of unit. Replace
screws in holes in bottom of
unit on opposite side.
