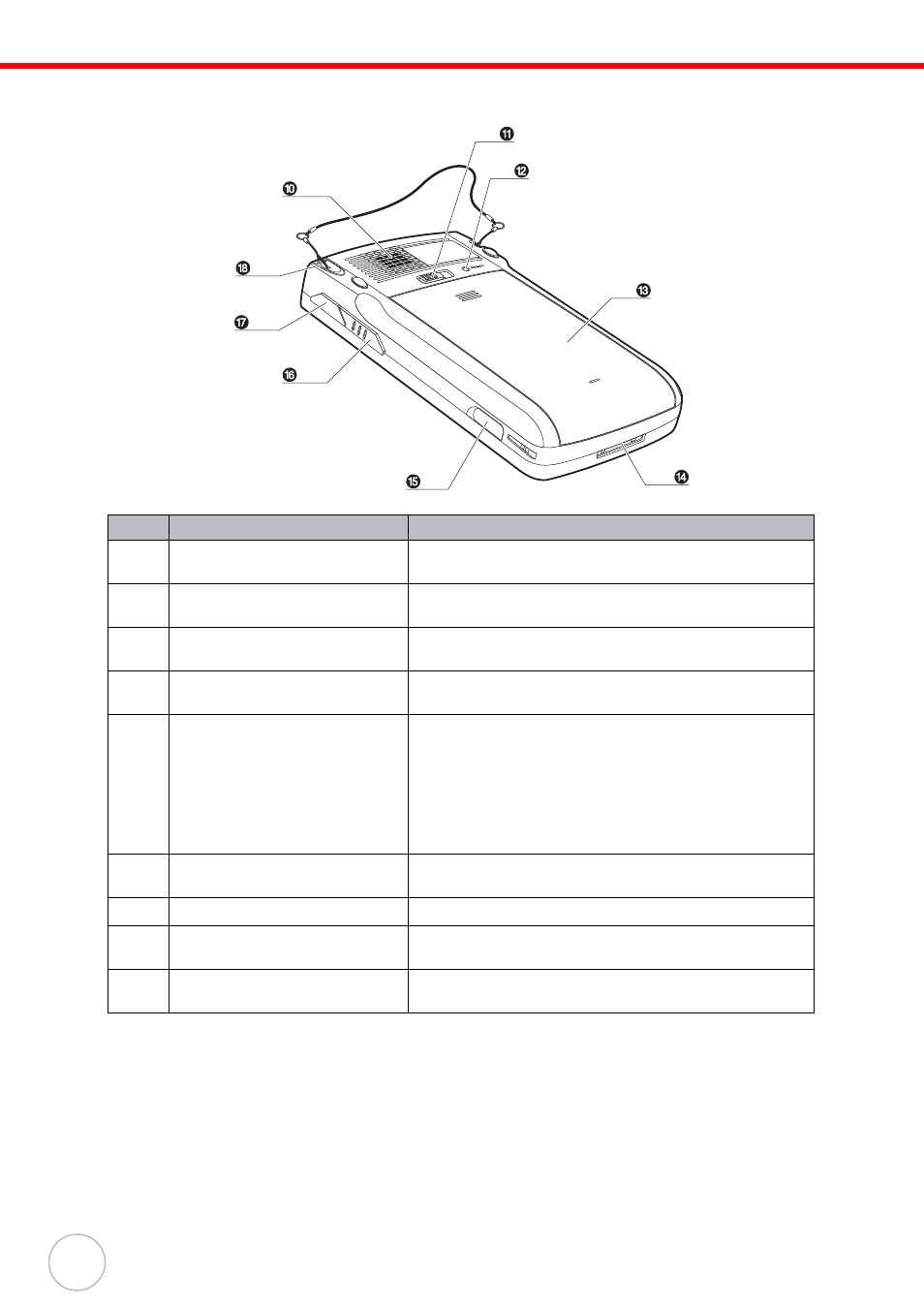

Back View
No. Component Description
10. Speaker Listen to audio media. When speaker phone is active,
sounds are emitted here.
11. Battery release latch Slide toward the right side of the device and hold firmly,
then detach the battery from its bay.
12. Reset button Press the end of the stylus into the button to reset your
device.
13. Main battery Removable and rechargeable 3.7 V, 2200 mAh battery
pack.
14. Universal connector Connects your device to a USB charging cable, which in
turn connects to the computer’s USB port and through
the AC adapter to an electrical outlet. This allows you to
recharge your device and perform an ActiveSync
operation.
You can also use it to connect a peripheral hardware,
such as a docking station, to your device.
15. Earphone jack Lift the rubber cover from the earphone jack and connect
an audio line-out device (earphone or headphone).
16. Right scanner trigger key Press to activate the barcode laser scanner.
17. Infrared (IR) port Uses infrared technology to transmit and receive data
from other IR-enabled devices.
18. Stylus To use the stylus, remove it from its holder and hold it the
same way you hold a pen or pencil.
