VX1505 Servers
6–18
7017 6300–005
Configuration Guidelines VX1505
Table 6–15 lists guidelines for configuring VX1505 servers. Figure 6–4 shows the
connection from a VX1505 server to the CIOM card in the CEC module or to the PCI Thru
card in channel racks.
Table 6–15. Configuration Guidelines, VX1505 Servers
Area
Rule/Recommendation
Windows NT Connection
Packages
See Table 6–13 for details.
Processor Addition
Up to three CPUs may be added to a maximum of four per server. See
Table 6–11 for details.
Memory Additions
See Table 6–12.
PCD Generation
Refer to Appendix B of the A Series and ClearPath HMP NX Systems I/O
Hardware Configuration Guide (7008 6087) for information on PCD
generation.
0617H
10
9
8
7
6
5
4
3
2
1
Server A
7019 7488-001
(CSB3-10C)
Remaining Servers
7019 7488-002
(CSB3-15C)
To CS Bus in CEC or PCI
Thru card in channel racks

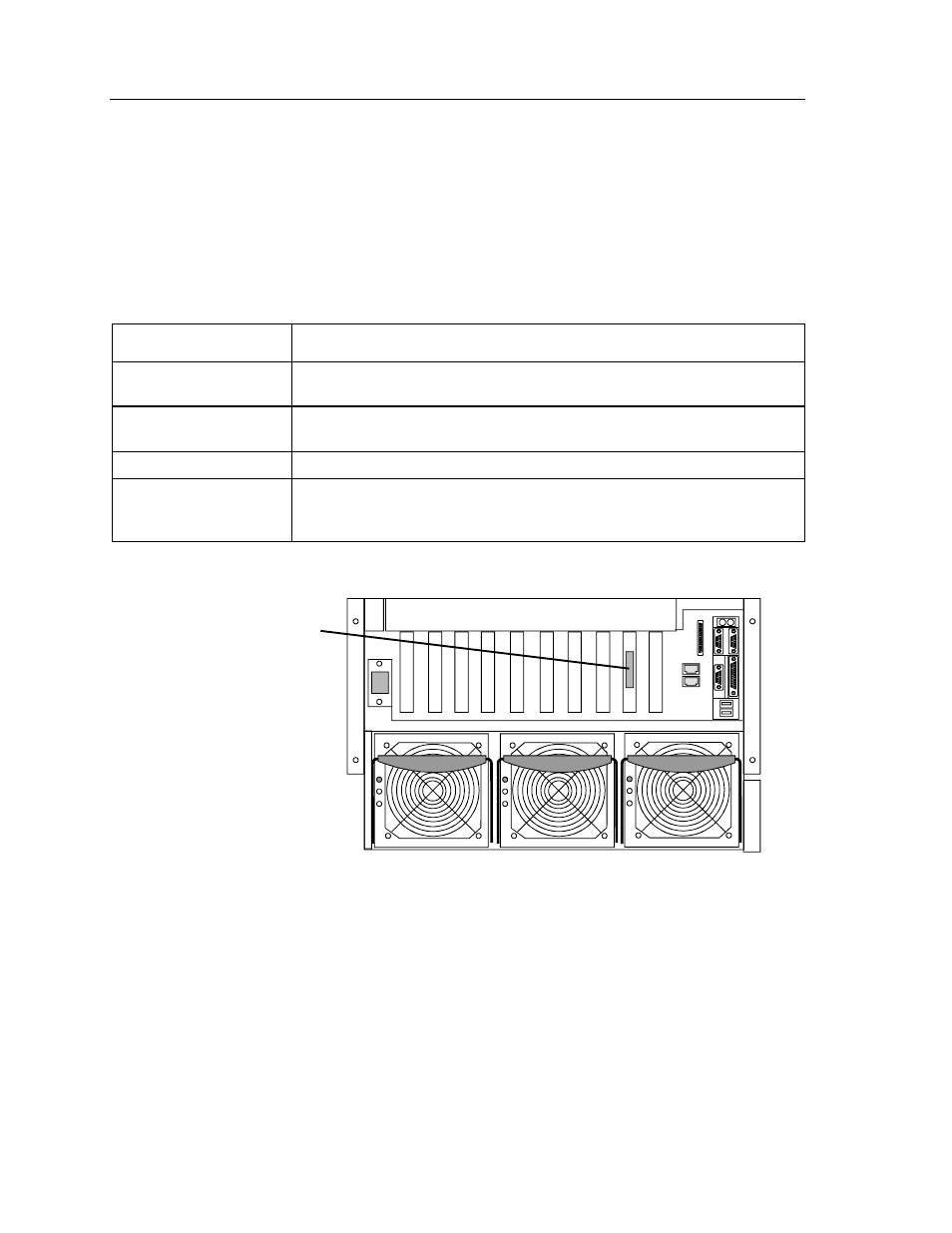

Figure 6–4. VX1505 Server CS Bus Cable Connection
