NTI UNIMUX MULTI-USER KVM SWITCH
3
FEATURES AND FUNCTIONS
1. Keypad- buttons for user control over switch functions
2. LCD - for visual indication of connection between the user and a specific CPU.
3. CPU x- USB Type B female connectors- for connection of CPU device cables
4. USB User Device x- USB Type A female connectors- for connection of user device cables
5. Power switch- for turning the power to the UNIMUX On/Off
6. IEC Power Connector- for attachment of power cord (not available on all units)
7. Fuse Holder- holder for replaceable 2A 240VAC overcurrent protection fuse (not available on all units)
8. RS232- for attaching RS232 interface cable from a CPU to control the functions of one or more switches
9. MONITOR x- 15HD female connectors- for connection of user monitors
10. VIDEO x- 15HD female connectors- for attachment of video cables from CPUs

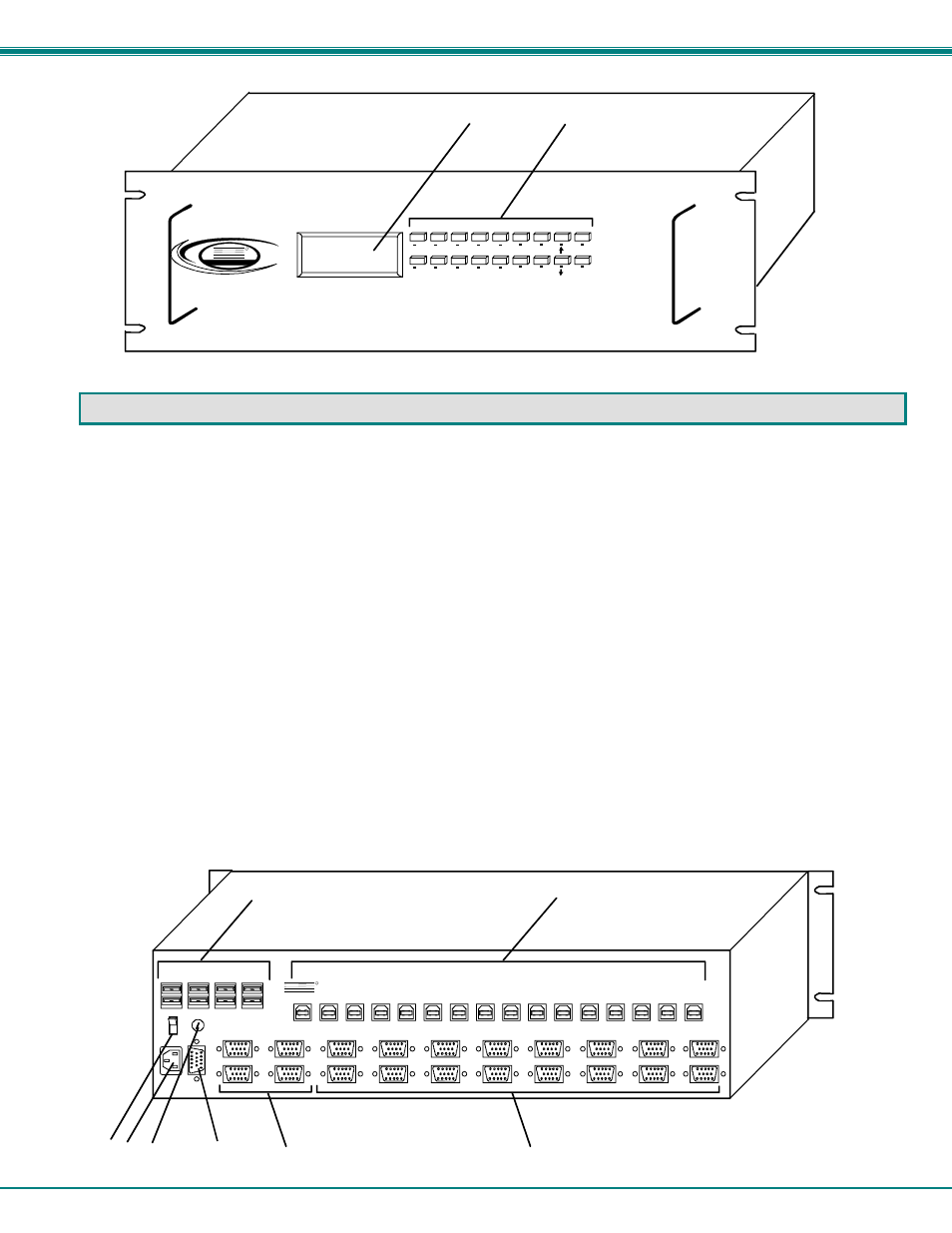

Front View of UNIMUX
1
2
NTI
R
Network Technologies Inc
UNIMUX
TM
1
2
3
CPU
4
5
6
USR
7
8
9
0
*
ESC
ENTER
MENU
Rear View of UNIMUX
3
4
5 6 7
8
10
9
MONITOR 1
MONITOR 2
MONITOR 3
MONITOR 4
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 4
VIDEO 5
VIDEO 6
VIDEO 7
VIDEO 8
VIDEO 9
VIDEO 10
VIDEO 11
VIDEO 12
VIDEO 13
VIDEO 14
VIDEO 15
VIDEO 16
USER 1
USER 2
USER 3
USER 4
R
S
2
3
2
NTI
NETWORK
TECHNOLOGIES
INCORPORATED
Tel:330-562-7070
Fax:330-562-1999
1275 Danner Dr
Aurora, OH 44202
www.nti1.com
R
CPU 1
CPU 2
CPU 3
CPU 4
CPU 5
CPU 6
CPU 7
CPU 8
CPU 9
CPU 10
CPU 11
CPU 12
CPU 13
CPU 14
CPU 15
CPU 16
