NTI UNIMUX MULTI-USER KVM SWITCH
7
2. Connect the user devices to the USB type A female ports labeled USB USER DEVICES on the rear of the UNIMUX switch.
(See Figure 3.) Ensure that the monitors and related user devices are connected to ports having the same port numbers.
(See Figure 5.)
Note: If device cables are not long enough to reach the UNIMUX switch, they can be extended either 5 or 10 meters
using either 1 or 2 NTI USB-A+A-5M Improved Active USB 5 Meter Extensions (purchased separately). (See Figure 4.)
Contact your NTI salesperson for more details by calling (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our
website at http://www.networktechinc.com.

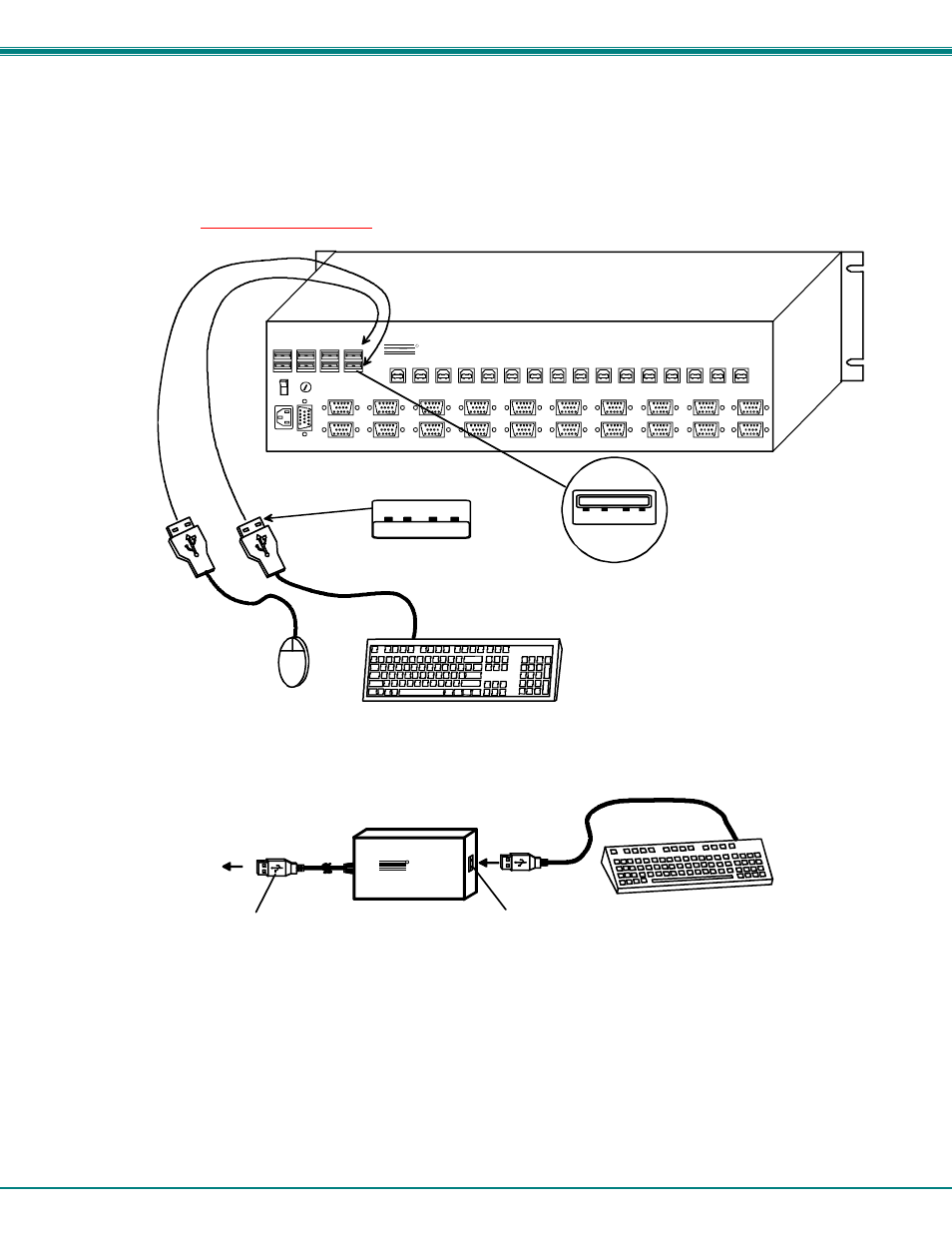

Figure 3- Install user devices (mouse and keyboard)
Figure 4- Use USB-A+A-5M to extend a device, or a computer
NTI
NETWORK
TECHNOLOGIES
INCORPORATED
Tel: 330-562-7070
www.nti1.com
1275 Danner Drive
Fax: 330-562-1999
R
Aurora,Ohio 44202
USB-A+A-5M
US
B
DE
V
IC
E
CP
U
USB KEYBOARD
USB TYPE A
MALE CONNECTOR
USB TYPE A
FEMALE CONNECTOR
TO UNIMUX
SWITCH
Rear View of UNIMUX
MONITOR 1
MONITOR 2
MONITOR 3
MONITOR 4
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 4
VIDEO 5
VIDEO 6
VIDEO 7
VIDEO 8
VIDEO 9
VIDEO 10
VIDEO 11
VIDEO 12
VIDEO 13
VIDEO 14
VIDEO 15
VIDEO 16
USER 1
USER 2
USER 3
USER 4
R
S
2
3
2
CPU 1
CPU 2
CPU 3
CPU 4
CPU 5
CPU 6
CPU 7
CPU 8
CPU 9
CPU 10
CPU 11
CPU 12
CPU 13
CPU 14
CPU 15
CPU 16
NTI
NETWORK
TECHNOLOGIES
INCORPORATED
Tel:330-562-7070
Fax:330-562-1999
1275 Danner Dr
Aurora, OH 44202
www.nti1.com
R
USB KEYBOARD
USB MOUSE
USB Type A Female
USB Type A Male
