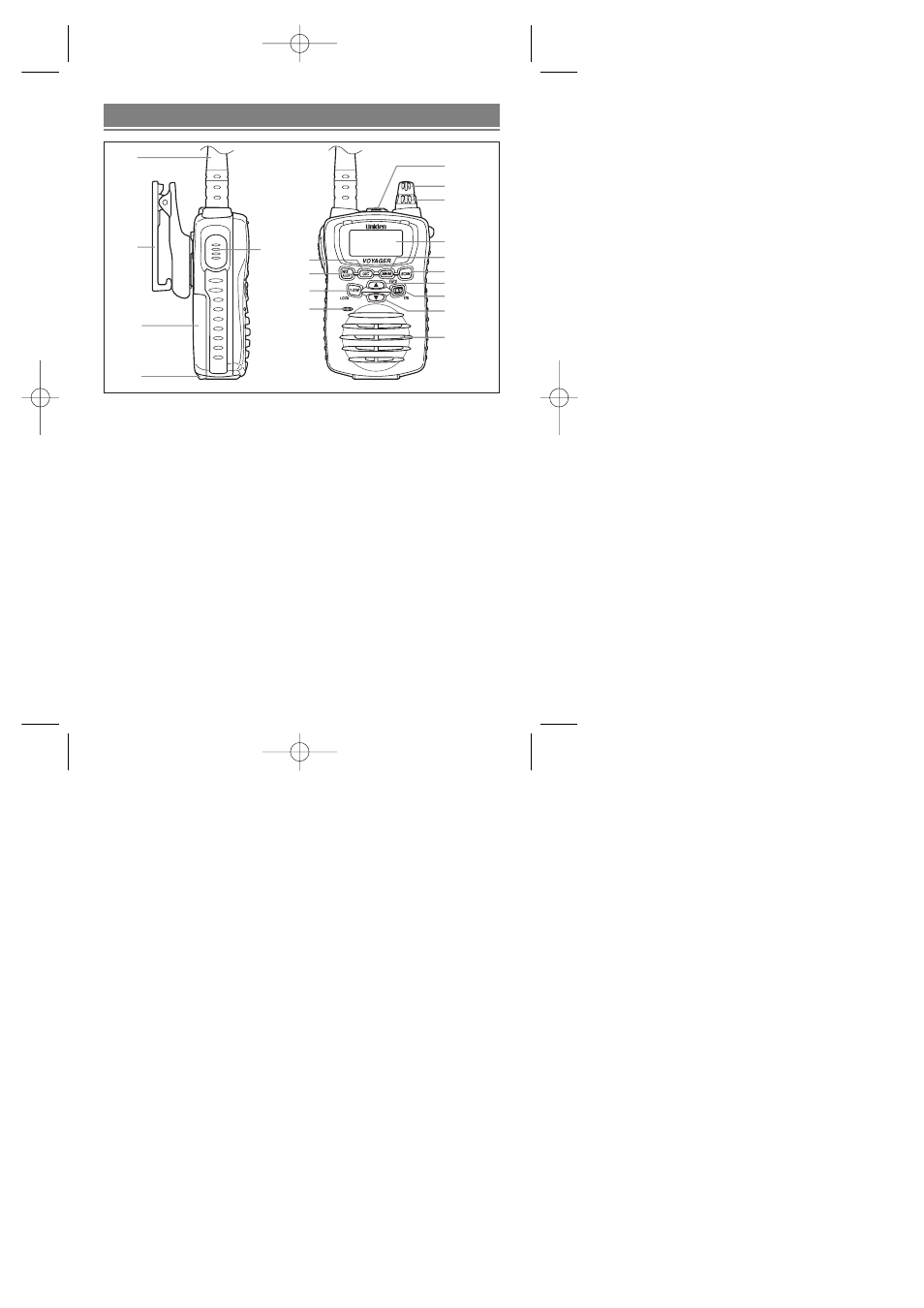

Controls and Indicators
2
1 Antenna
2 Belt
Clip
3 Battery
4 Battery Release Clip
5 PTT (Push to Talk) Key
6 USA/International/Canadian Button (
UIC)
7 WX Mode/Weather Alert Button (WX/ALERT)
8 TX Power/Lock Button (1/5W/LOCK)
9 Microphone
10 Speaker MIC (Optional) Jack
11 Volume/Power
Knob
12 Squelch Knob
13 LCD Display
14 Memory/FIPS Button (MEM/FIPS)
15 Scan Button (SCAN)
16 Channel Up Button (
▲)
17 16/9 - Triple Watch Button (16/9/TRI)
18 Channel Down Button (
▼)
19 Speaker
1
2
3
4
5
6
8
7
9
11
12
13
14
10
15
16
17
18
19
