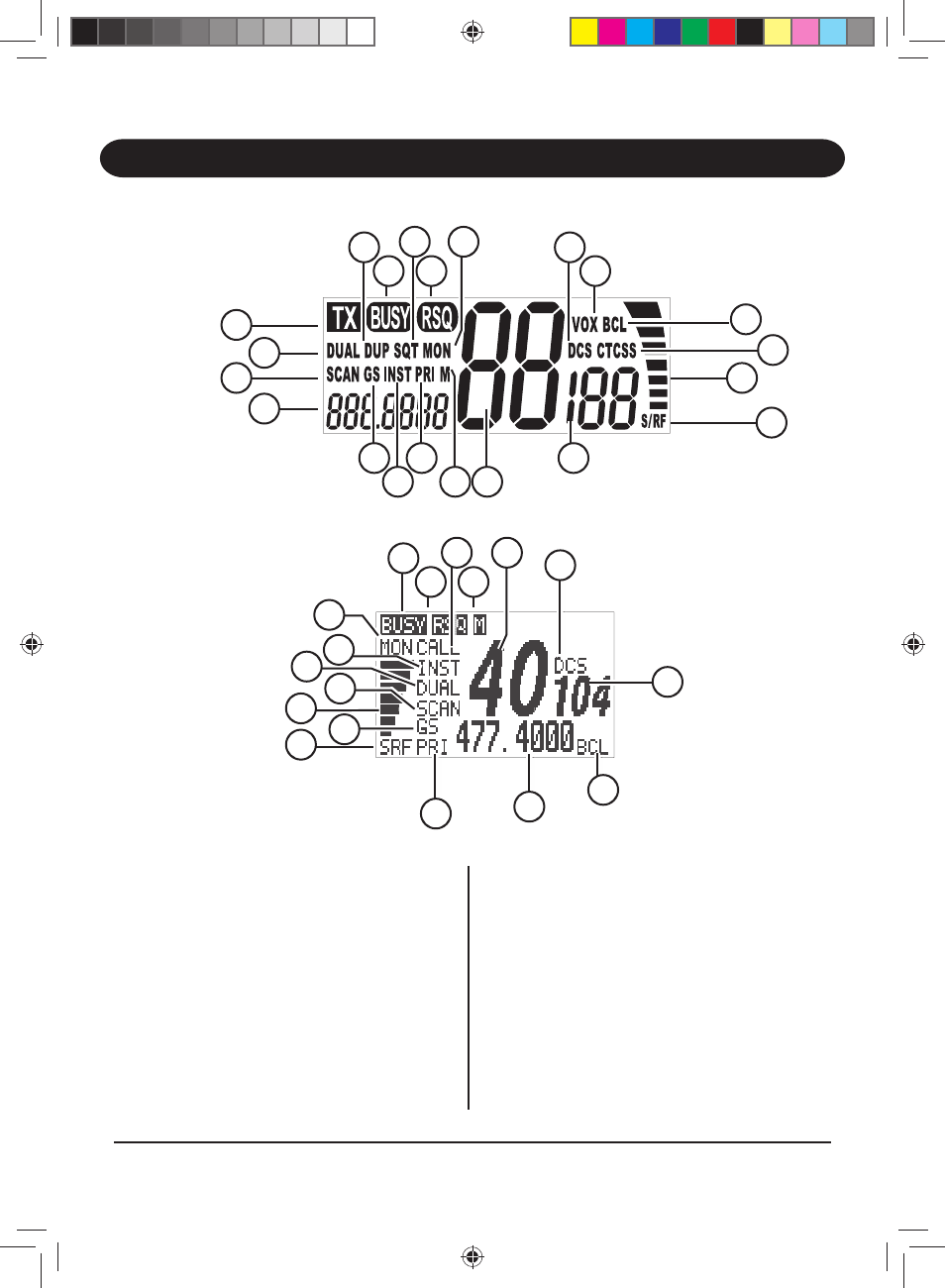

UH500SX and UH400SX LCD (not to scale)
Remote MIC LCD
1. TX - Transmit
2. DUAL - Dual Watch
3. SCAN - Scan mode
4. Channel Frequency
5. GS - Group Scan
6. INST - Instant Channel
7. PRI - Priority Channel
8. M - Channel in Memory
9. Channel Number
10. DCS/CTCSS Code Number
11. S/RF- Receive Signal or Transmit
12. Signal Power Level
13. CTCSS -Continuous Tone
Coded Squelch System
14. BCL - Busy Channel Lockout
15. VOX - Voice Operated Microphone
16. DCS - Digital Coded Squelch
17. MON - Monitor
18. RSQ - Remote Mic Squelch
19. SQT - Tight Squelch Level
20. BUSY - Channel Active
21. DUP - Duplex Channel
22. CALL - Call Tone
