9
6.LINE-LOCK PHASE :
When a video switcher switches two or more
cameras, the picture may fluctuate on the video
monitor due to the different AC line phase of
each camera. In this case, adjust the V PHASE
controller (on rear panel) to get a stable image.
The camera is in the Line-Lock Mode. Line-Lock
phase is set 0-300 degrees by adjusting the V
phase control at the rear of the camera.

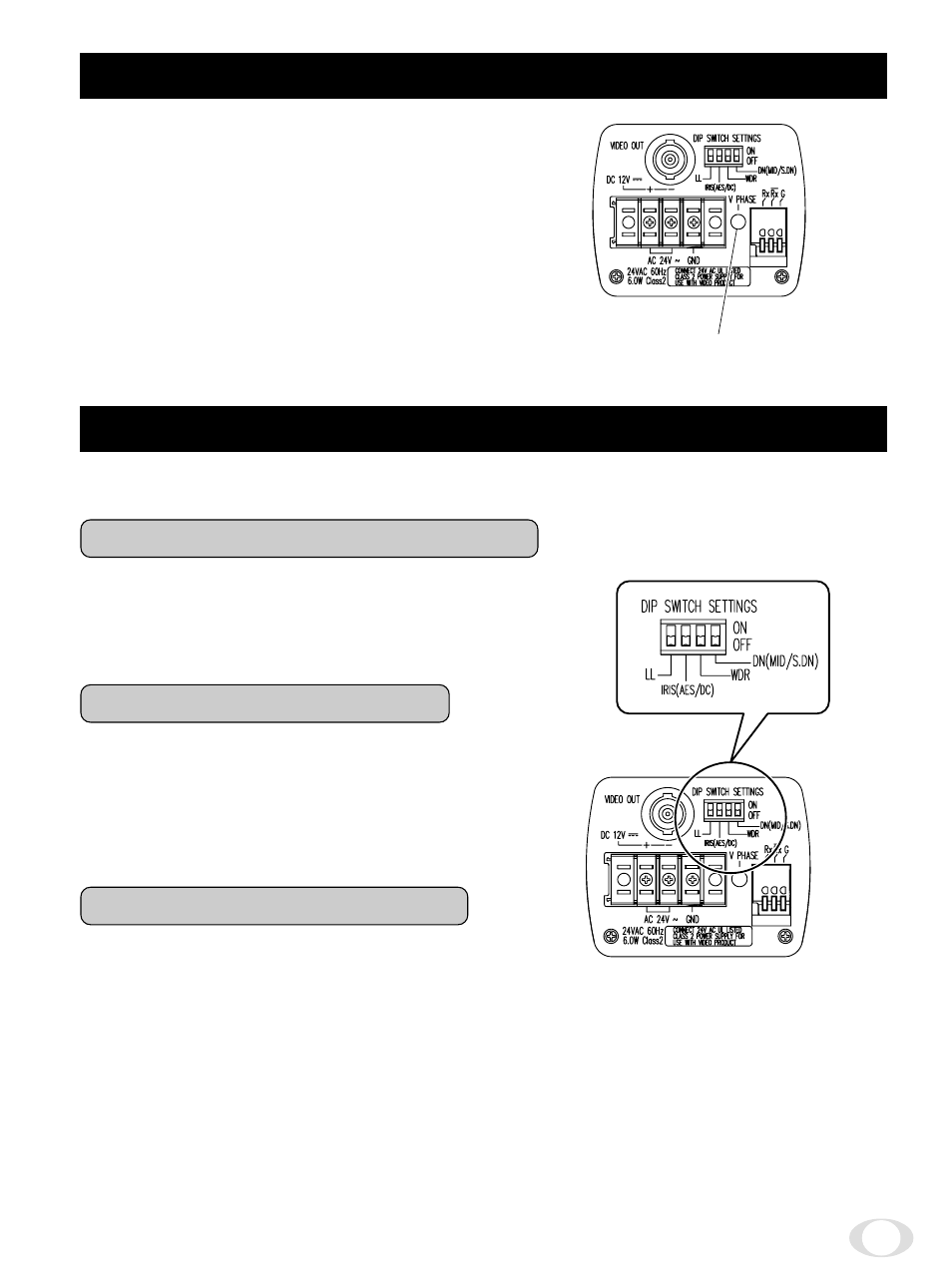

V. PHASE CONTROLLER
7.DIP SWITCH SETTINGS :
The following settings can be performed by setting the rear dip switches.
7.1 LINE LOCK (DIP1) : ON/OFF
The line lock functions with AC24V power and
the switch on the ON side.
7.2 IRIS (DIP2) : AES/DC
AES/DC select switch.
AES (ON side) : Auto electronic shutter function.
DC (OFF side) : When using AI lens without amp.
7.3 WDR (DIP3) : ON/OFF
With this switch ON, wide dynamic range func-
tion (WDR) is activated.
When WDR function is activated, the video of
each Field is mixed. When this happens, verti-
cal resolution And the number of the frames
decrease slightly.
