26
Appendix

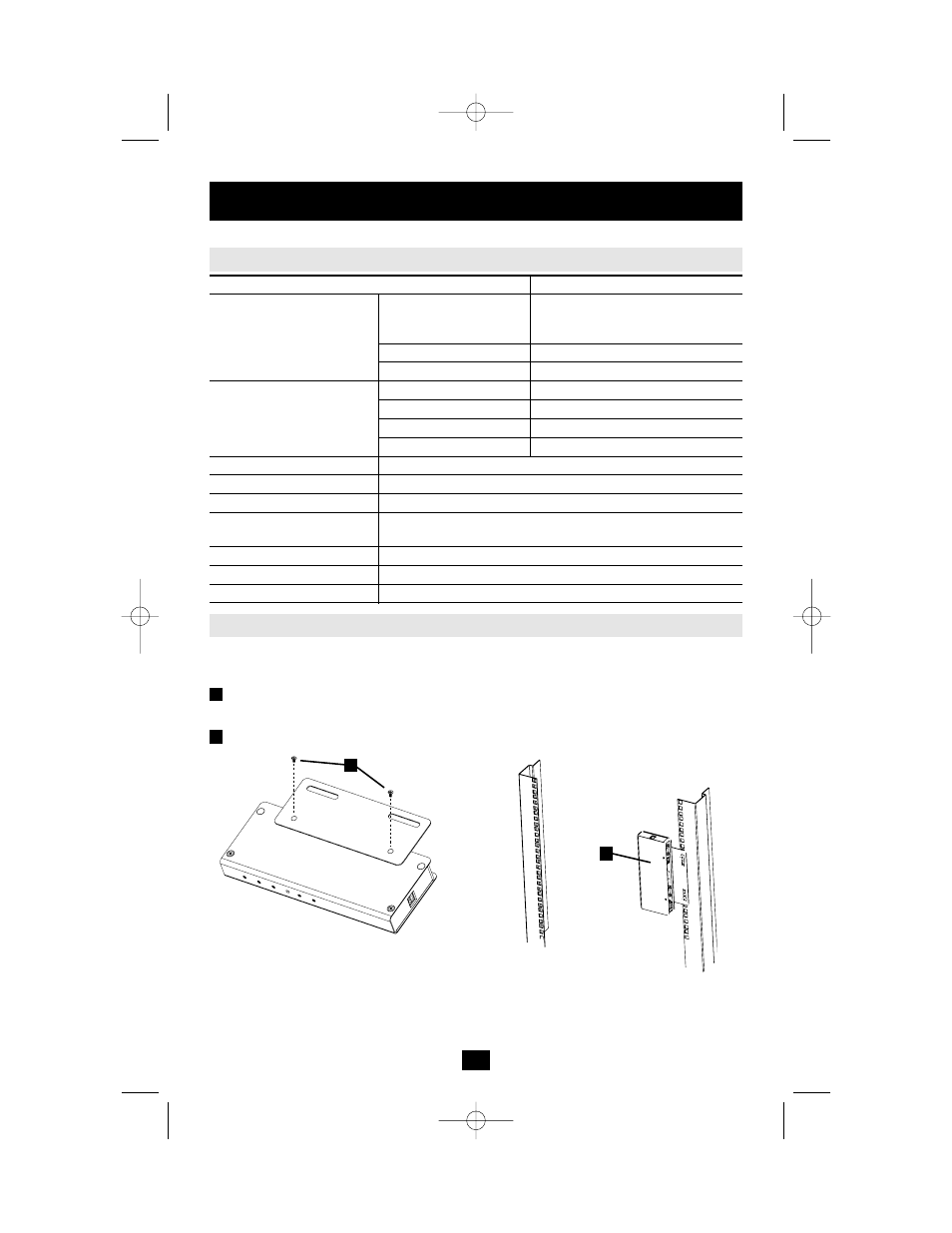

Specifications
Function Specification
Connectors Console Ports 1 x 6 pin mini-DIN F - Keyboard
1 x 6 pin mini-DIN F - Mouse
1 x HDB-15 F - Video
KVM Port 1 x SPHD-15 F
Power 1 x DC Jack (DC 5V; 2.6A max)
LEDs Tx/Rx 1 (Amber)
Link 1 (Green)
Power 1 (Blue)
WLAN 1 (Amber)
Video Up to 1600 x 1200 @ 60 Hz
Power Consumption 1800 mA
Protocols IEEE 802.11b
Environment Operating Temperature: 0 - 40° C, Storage Temperature: 0 - 60° C
Humidity: 0 - 80% RH
Housing Metal
Weight 0.51kg
Dimensions (L x W x H) 17 x 10 x 1.7 in
Rack Mounting
For convenience and flexibility, the B014-000 can be mounted on a system rack. To rack mount
the unit do the following:
1. Screw the mounting bracket into the top or bottom of the unit as shown in the example
diagram below.
2. Screw the bracket into any convenient location on the rack.
1
2
1
2
