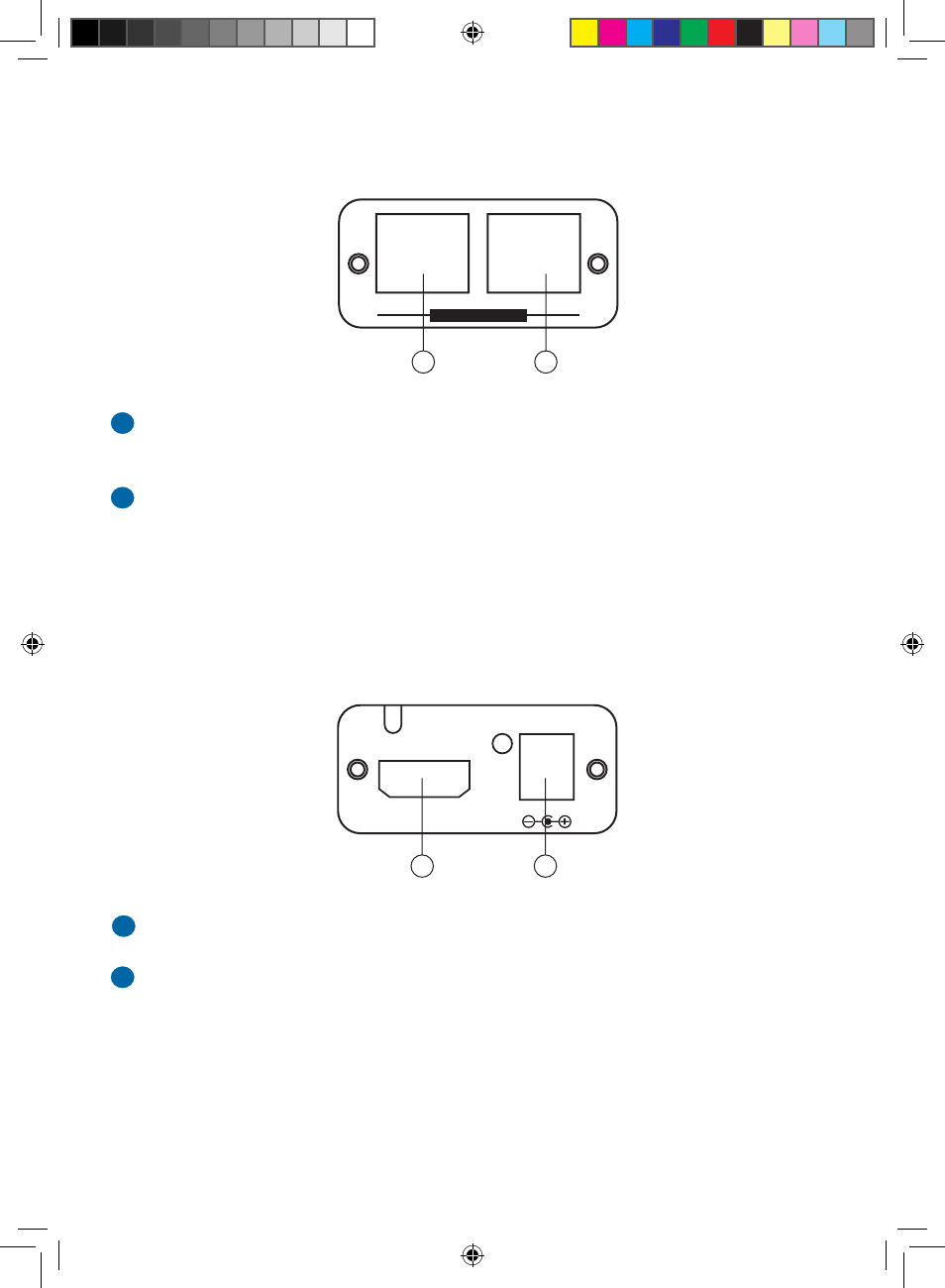

5. Receiver Operational Controls and Functions
5.1 Front Panel
HDMI OUTPUT: Connect the HDMI output to the HDMI input of your display.
POWER: Plug the 5VDC power supply into the unit and connect the adaptor
to AC wall outlet.
1
2
5.2 Rear Panel
DDC INPUT: Connect the DDC input to the DDC output of the transmitter unit
using CAT5E or CAT6.
VIDEO INPUT: Connect the VIDEO input to the VIDEO output of the
transmitter unit using CAT5E or CAT6.
1
2
1 2
DC 5V
POWER
HDMI OUTPUT
1 2
DDC
CAT6 INPUT
VIDEO
4 3
