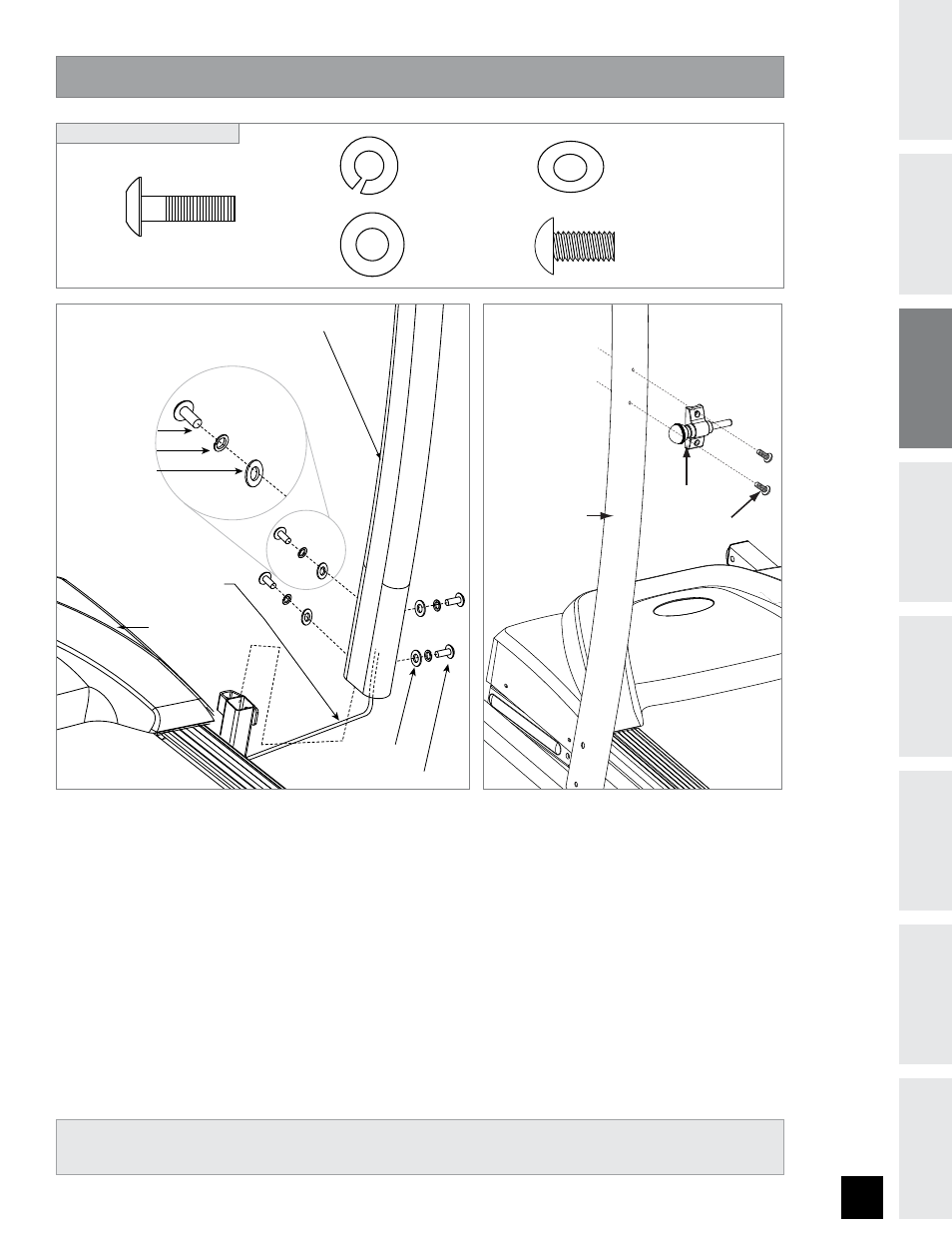

ASSEMBLY STEP 2
Open HARDWARE BAG 2.
Note: On right CONSOLE MAST, the CONSOLE WIRE must be threaded through the MAST.
Slide the right console mast down on to the console mast support tube. Then bolt in place
using 2 BOLTS (A), 2 SPRING WASHERS (B), and 2 ARC WASHERS (D) on the front, then use 2
BOLTS (A), 2 SPRING WASHERS (B), and 2 FLAT WASHERS (C) on the side.
Repeat on the other side.
Attach DECK LOCK LATCH to LEFT CONSOLE MAST using 2 BOLTS (E).
A
B
C
D
BOLT (A)
Qty: 8
SPRING WASHER (B)
Qty: 8
FLAT WASHER (C)
Qty: 4
ARC WASHER (D)
Qty: 4
BOLT (E)
Qty: 2
HARDWARE BAG 2 CONTENTS :
BOLT(A)
SPRING WASHER (B)
ARC WASHER (D)
CONSOLE MAST
CONSOLE MAST SUPPORT TUBE
FLAT WASHER (C)
CONSOLE WIRE
BOLT (A)
* NOTE: Be careful not to pinch any wires while assembling the masts.
DECK LOCK LATCH
LEFT CONSOLE MAST
BOLT (E)
