CONSOLE MAST SUPPORT TUBE
TRANSPORT WHEEL
SCREW (F)
NOTE:
During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before
completely tightening any ONE bolt. NOTE: A light application of grease may aid in the installation of hardware.
Any grease, such as lithium bike grease is recommended.

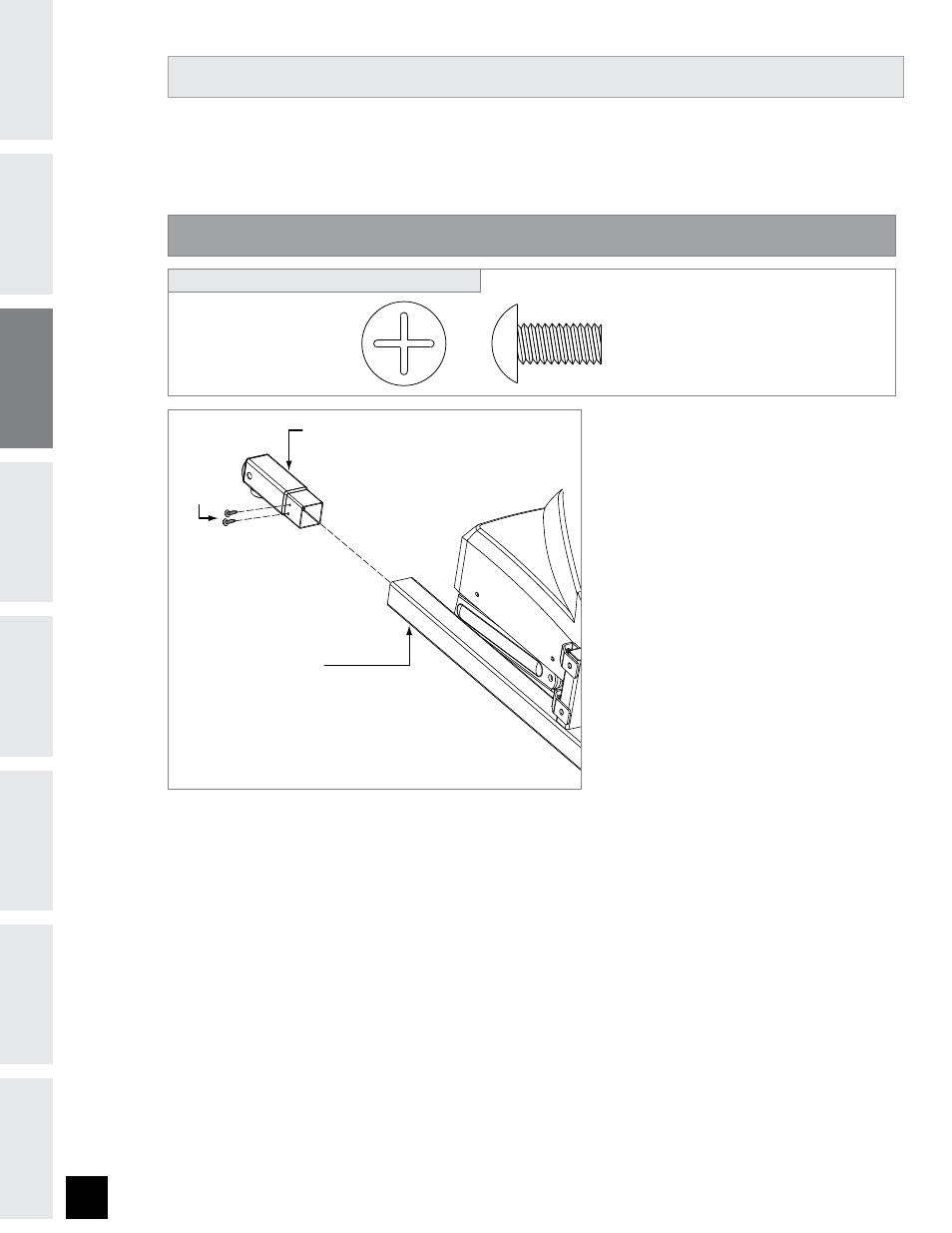

Open HARDWARE BAG 1.
Slide the left transport wheel
onto the console mast support
tube. Bolt in place using 2
SCREW (F) on the side.
Repeat on the other side.
PRE-ASSEMBLY
ASSEMBLY STEP 1
A
B
C
SCREW (F)
Qty: 4
HARDWARE BAG 1 CONTENTS :
