23

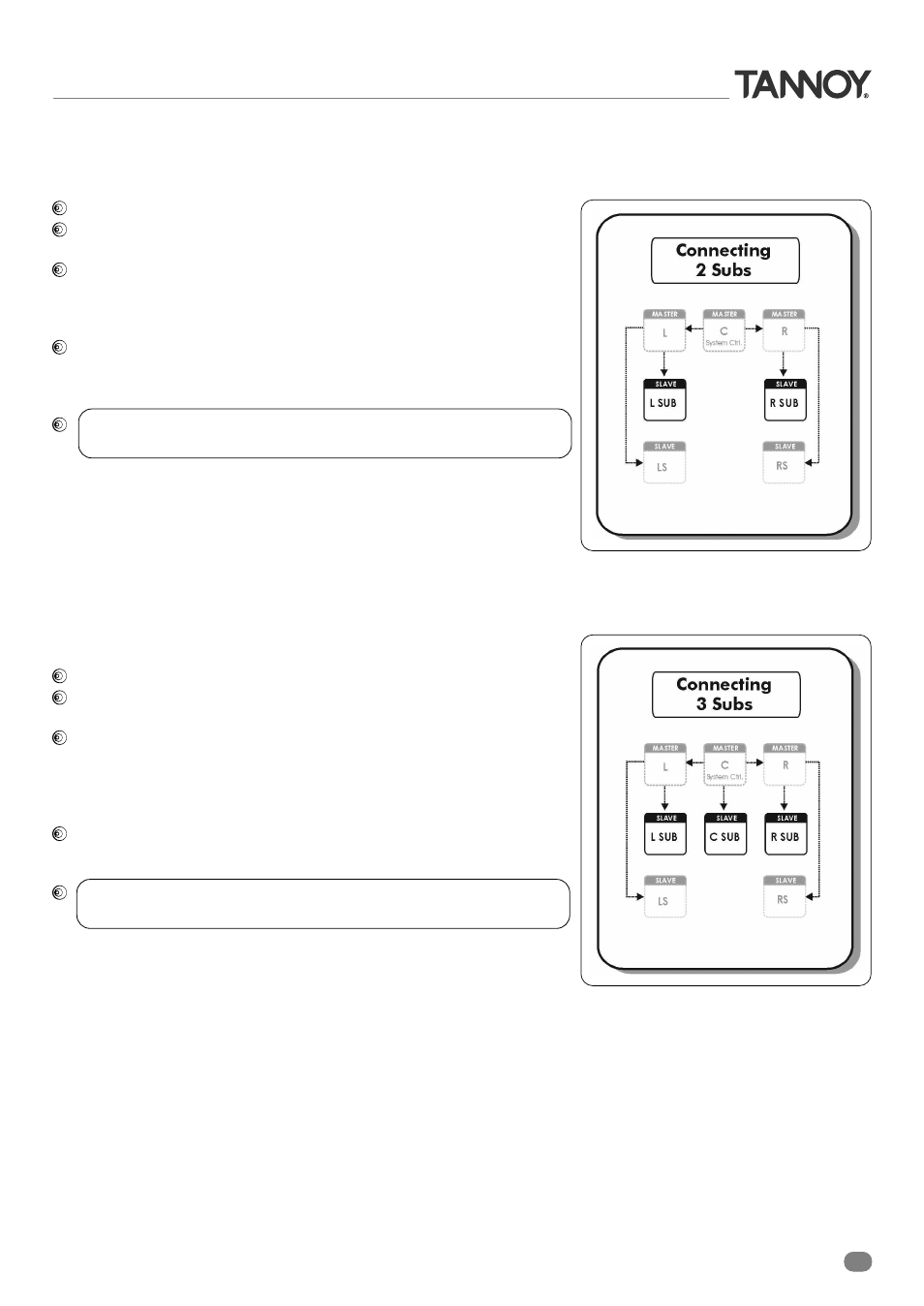

Connecting Two Subs
Two Subs can be connected to any of the above Set-Ups
When no Bass management is selected, no signal will be sent to
the subwoofers.
When Bass management is selected, low frequency content from the
left channel is extracted and sent to the left subwoofer.
Low frequency content from the right channel is extracted and sent to
the right subwoofer.
The iDP
™ Remote, iDP SOFT ™ or PC-iP ™ can be connected to
any spare TC Link “out” connection.
! REMEMBER – To set a master monitor as the system controller the
TC Link button on the rear panel MUST be in the out position.
Connecting Three Subs
Three subs can be connected to any of the above Set-Ups
When no Bass management is selected, no signal will be sent
to the subwoofers.
When Bass management is selected, low frequency content from the
left channel is extracted and sent to the left subwoofer.
Low frequency content from the right channel is extracted and sent to
the right subwoofer. Low frequency content from the centre channel is
extracted and sent to the centre subwoofer.
The iDP
™ Remote, iDP SOFT ™ or PC-iP ™ can be connected to any
spare TC Link “out” connection.
! REMEMBER – To set a master monitor as the system controller the
TC Link button on the rear panel MUST be in the out position.
