Installation
GB GB
AV1
EXT1
AUX1
AV1
IN
OUT
220V/240V - 50Hz
M
aking the connections
Other possible connection schemes are shown on page 6 and 8.
J

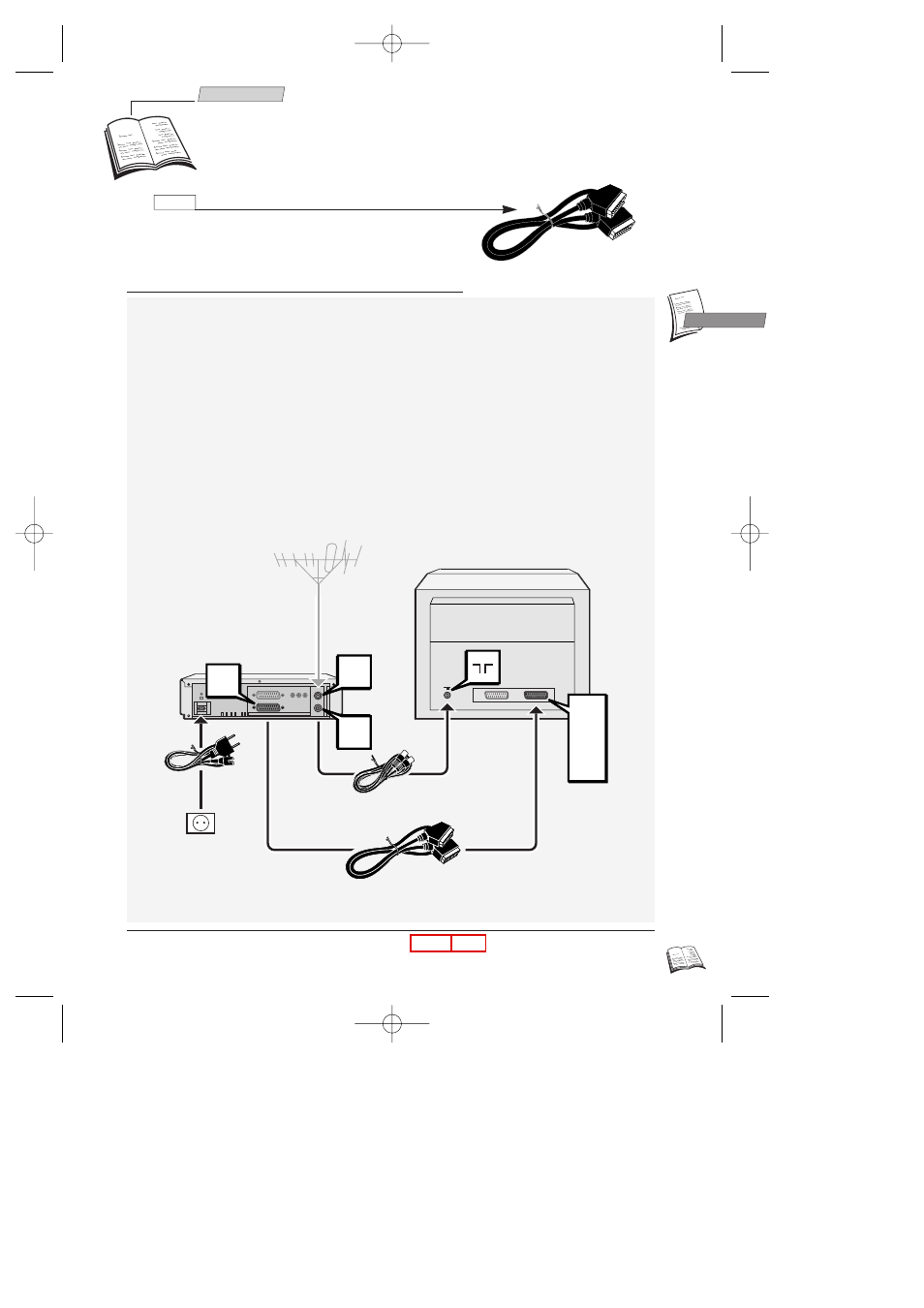

1 Disconnect the aerial cable from your TV set and reconnect it to the IN socket of your
video recorder.
2 By means of the coaxial cable supplied, connect the video recorder's OUT socket to the
television's aerial socket g g.
3 With the SCART cable supplied, connect the video recorder's AV 1 socket
(audio/video 1) to the television's SCART socket (AV 1, EXT 1, AUX 1
depending on the make).
J
Your television socket should be compatible with for the RGB signals (21 pins connected).
If this is not the case, use the AV4 socket on the video recorder (yellow cinch socket).
See your retailer for the appropriate cable.
4 Connect the video recorder to the mains with the power cord supplied by first plugging
in the connector at the video recorder rear.
J
Connecting the video recorder and television set with this
cable simplifies set-up and subsequent use, and
considerably improves the pictures and sound reproduction
quality.
