Introduction
Identification of Controls
See the page in
for details.

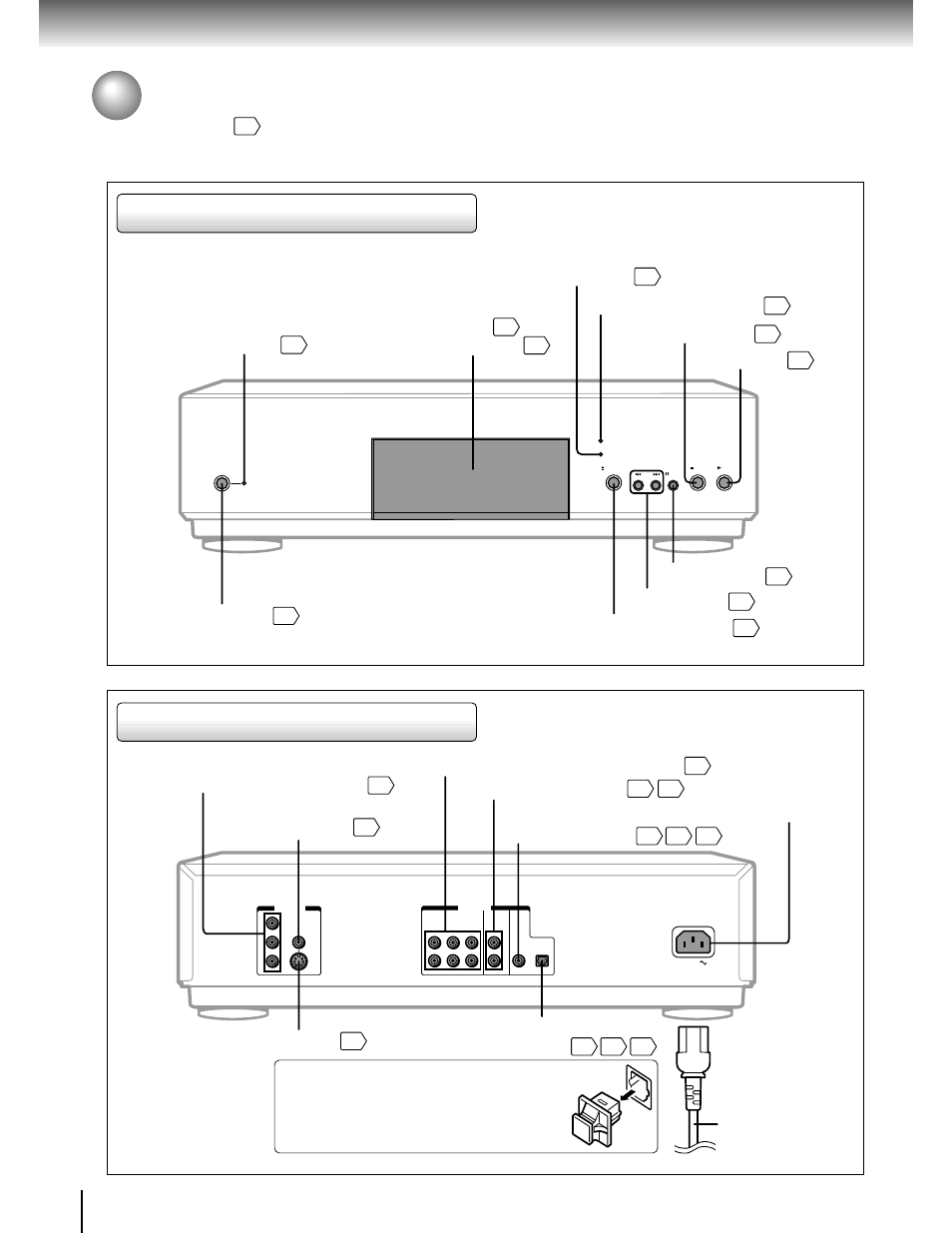

Front panel
Rear panel
PLAY
POWER
PAUSE
DIRECT AUDIO
VIDEO ON
STOP
SKIP
OPEN/CLOSE
POWER indicator
26
OPEN/CLOSE button
26
STOP button
27
VIDEO ON indicator
28
DIRECT AUDIO indicator
28
26
PLAY button
POWER button
26
Disc tray
/DVD display
SKIP buttons
32
27
PAUSE button
26
13
VIDEO
SUBWOOFER SURROUND FRONT
CENTER
COAXIAL
OPTICAL
S
L
R
AC IN
VIDEO OUT
Y
P
B
P
R
AUDIO OUT
5.1CH
SURROUND
2CH
BITSTREAM
/PCM
2CH AUDIO OUT jacks
18
VIDEO OUT jack
BITSTREAM/PCM COAXIAL
AUDIO OUT jack
18 19
5.1CH SURROUND AUDIO OUT jacks
23
ColorStream
®
(Component video)
VIDEO OUT jacks (Y/P
B
/P
R
)
21 22 23
19
18
S VIDEO OUT jack
AC inlet
21 22 23
BITSTREAM/PCM OPTICAL
AUDIO OUT jack
Power cord
When connecting the optical digital cable, remove
the cap and fit the connector into the jack firmly.
When not using the jack, keep the cap inserted
to protect it from dust intrusion.
