CONNECTIONS
CONNECTING TO A VIDEO SYSTEM
CONNECTING A VIDEO COMPONENT FOR INPUT
There are 2 individual group input jacks (AV1 and AV2) to connect another video component for input. Please
follow the steps below to share the display on the Singing Machine’s monitor from the video source:
(4) Press the to switch to AV2 for front panel input connection or switch to AV1
for the back of the Singing Machine input connection.
Note: In order to input the audio source, the video connection be connected. If the video connection is
not completed, there will be no audio output.
FOR AV1
FOR AV2
D must
(1) Locate the multicolored RCA patch cords.
(2)
(3)
Connect the yellow video cable to the Video Input Jack, red audio cable to the Audio Right channel Input jack
and white audio cable to the Audio Left channel Input Jack respectively located on the front of your system
when the jack door is opened (Please refer to page E9 Control Location # 17). The other option is to connect
the respective cables to the back of your Singing Machine as illustrated below.

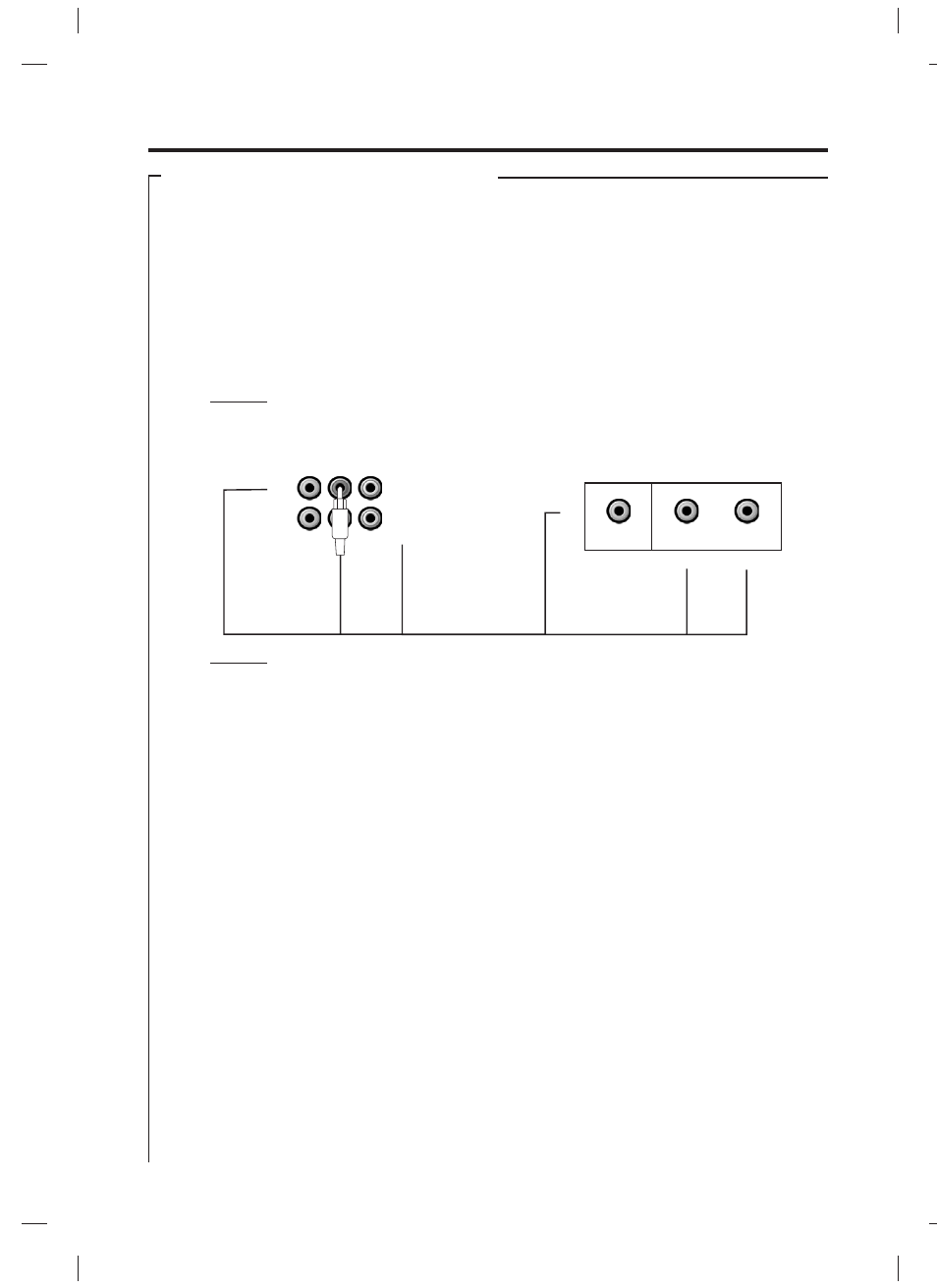

Connect the other end of the cords to the Video Output Jack, AUX Right/Left channel Output jacks on your
video system, as illustrated below.
Function Selector (TV/AV/DVD)
REAR VIEW OF
VIDEO SYSTEM
OUT
IN
L R VIDEO
AV 1
AUDIO
L R VIDEO
AUDIO
AUX OUT
L R
VIDEO
OUT
