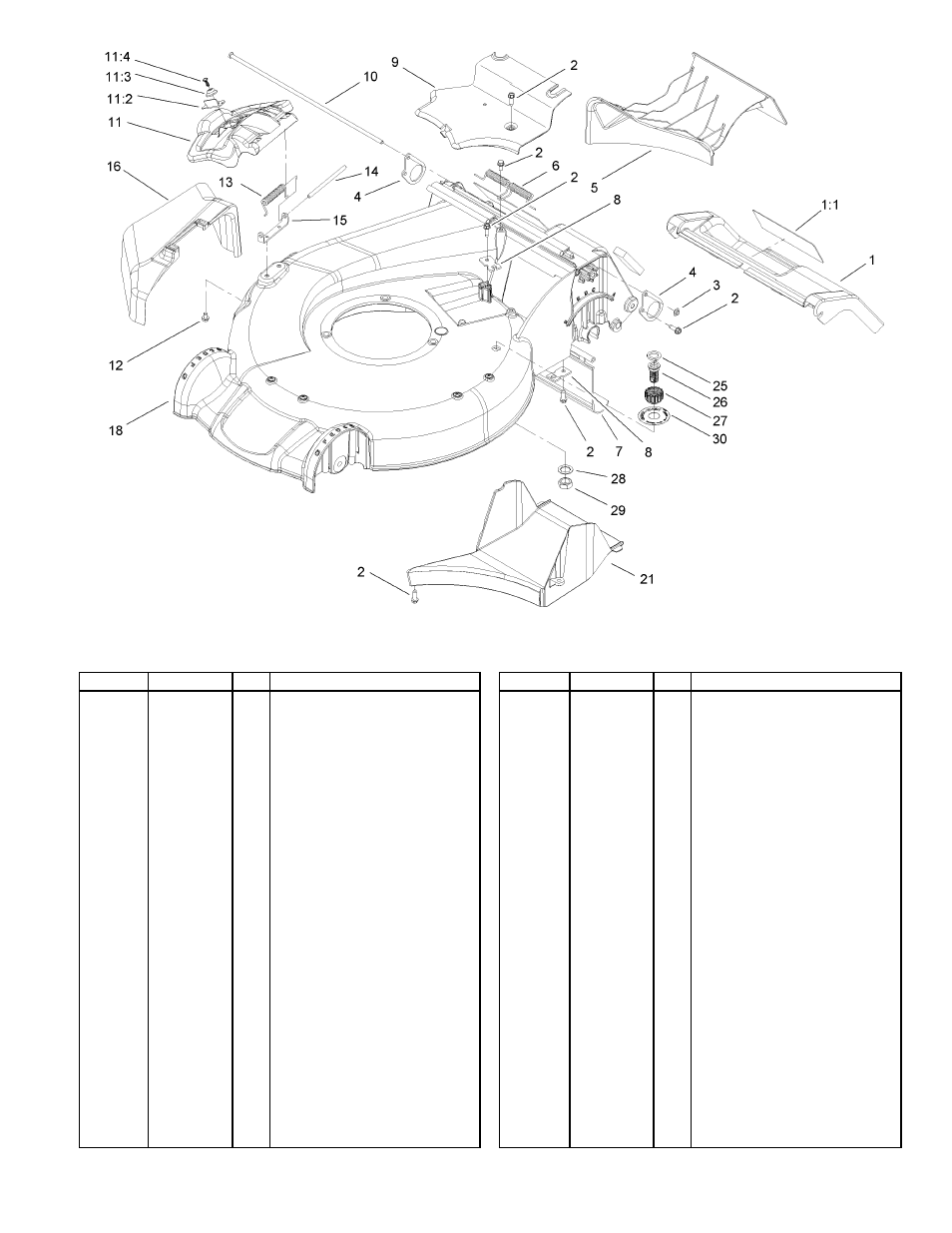

Housing Assembly
2
Ref
Part No.
Qty. Description
Door-Service
1
108-8169
1
Decal-Warning
1:1
105-1295
1
Screw-HWHTF
2
49-2040
7
Nut-Speed
3
3290-337
1
Plate-Support, Door
4
107-7493
2
Plug-Mulch
5
107-7490
1
Spring-Door, Rear
6
105-3032
1
Shield-Trailing
7
114-1586
1
Bracket-Cable, Traction
8
107-7497
1
Cover-Belt
9
107-7494
1
Rod-Support, Door
10
107-7499
1
Discharge Door ASM
11
107-3717
1
Latch-Door
11:2
107-0795
1
Cap-Door
11:3
107-7456
1
Screw-Plastite
11:4
107-7461
1
Screw-HWH
12
99-8445
2
Spring-Torsion
13
99-5293
1
Rod-Cover
14
99-5291
1
Bracket-Cover
15
112-6416
1
Chute-Discharge, Side
16
108-3753
1
Housing ASM
18
112-8862
1
Tunnel-Discharge
21
107-7495
1
Washer-Seal, Washout Port
25
112-6438
1
Port-Washout
26
112-6400
1
Ref
Part No.
Qty. Description
Coupling-Hose, Washout Port
27
112-6401
1
Washer-Tooth
28
3254-5
1
Nut-Jam
29
3218-6
1
Decal-Washout Port
30
112-8868
1
