Connecting a DVD player or satellite receiver
and a VCR
This connection allows you to watch DVD/satellite, VCR, or TV
programs. You can record from the satellite receiver or TV. You can also
record one TV channel while watching another channel.
Note: If your DVD player has component video connections, see “Connecting a
DVD player with ColorStream
® (component video) and a VCR on page 10.
You will need:
• one coaxial cable
• one set of A/V cable
• one pair of audio cables
• one S-video cable (between the TV and DVD player/satellite
receiver)
Note:
To watch a DVD /satellite program, the TV
must select VIDEO 1; to watch a VCR
program, the TV must select VIDEO 2 (see
page 22).
You can use a standard video cable instead
of an S-video cable between the TV and
DVD player/satellite receiver, but the picture
quality will decrease. The illustration at left
shows one S-video cable and one pair of
audio cables connected from the DVD
player/satellite receiver to VIDEO 1 on the
TV.
The unauthorized recording, use,
distribution, or revision of television
programs, videotapes, DVDs, and other
materials is prohibited under the Copyright
Laws of the United States and other
countries, and may subject you to civil and
criminal liability.

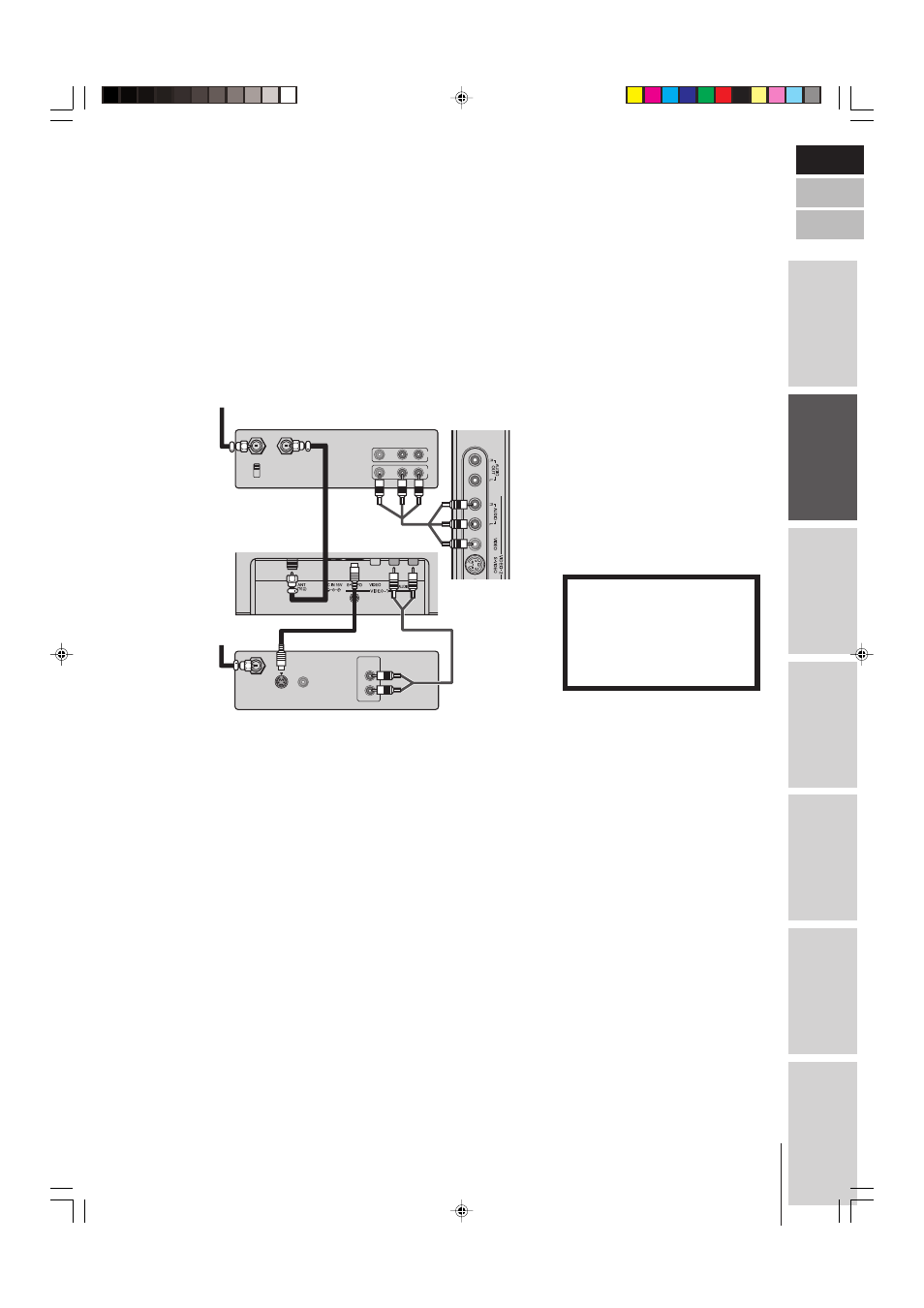

IN from ANT
VIDEO
OUT OUT
S-VIDEO
AUDIO
OUT
L
R
IN from ANT
VIDEO AUDIO
OUT to TV
CH 3
L R
CH 4
IN
OUT
Back of TV
Side of TV
From Antenna
Stereo VCR
* Satellete receiver use only
* From
Satellite Dish
DVD/Satellite receiver
