Tunturi E5R - Manual (Page 9)

48
1 233 9003 User interface 1
2 153 9003 Seat back 1
*- M8 DIN 125 Washer 4
*- M8 DIN 934 Nut 4
3 153 9001 Seat 1
- M8 DIN 985 Nut nylon 2
4 403 1073 Receiver 1
5 533 7024 Handlebar plug 2
6 213 1004 Handle grip 2
7 203 9002 Handle bar (incl.. 5, 6, 8) 1
- M8 DIN 985 Nut nylon 4
8 403 9006 Telemetric hand pulse 1
- 4,2x16 DIN 7504-K PT-Screw 2
9 433 9001 Al-profil for user interface 1
- 4,2x16 DIN 7504-K PT-Screw 2
10 173 9008 Side cover for Al-profil 1
- M8x35 DIN 912 Screw 1
- M8x50 DIN 912 Screw 2
11 173 9009 Side cover for Al-profil 1
- M8x35 DIN 912 Screw 1
- M8x50 DIN 912 Screw 2
12 503 9010 RJ12-plug bracket 1
- KB 40x20 WN-1411 PT-Screw 1
13 403 1070 Cable set (incl. 13a,13d,13e) 1
13c 403 1026 RPM-magnet 1
13k 403 1071 RJ12-plug, Mod 6/6 1
13m 403 9004 RJ12-plug, Mod 8/8 1
13n 403 9005 Cable 1
14 683 1011 Bezel 1
15 103 9010 Tube 1
- M8x20 DIN 7380 Screw 2
16 533 4047 Plug 1
17 103 9005 Frame 1
18 533 1050 Stand plug 4
19 4213 9003 Label set (incl.19a, 19b) 2
20 173 1053 Side cover, LH and RH. 2
- KB 40x20 WN-1411 PT-Screw 4
21 533 9012 Plug 1
22 653 1017 Nut 2
- 12x18x05 DIN 988 Washer 1
24 303 9003 E5R Flywheel 1
21 20
10 4 9
1
13n
2
16
5 8 6
74
75
15
13k
13a
14
72
56
57
54
45 40 53 47
35 32 43 44
22 41 13c 43
33 24 42 43
135
39 38 37 36 18
12 13m
8
2 93 71 62
69
3
61
73
65
70
60 66 67 68 62
64
63
35
62 59
7
39 18
55
58
43 17
13d 60
13e
92 91

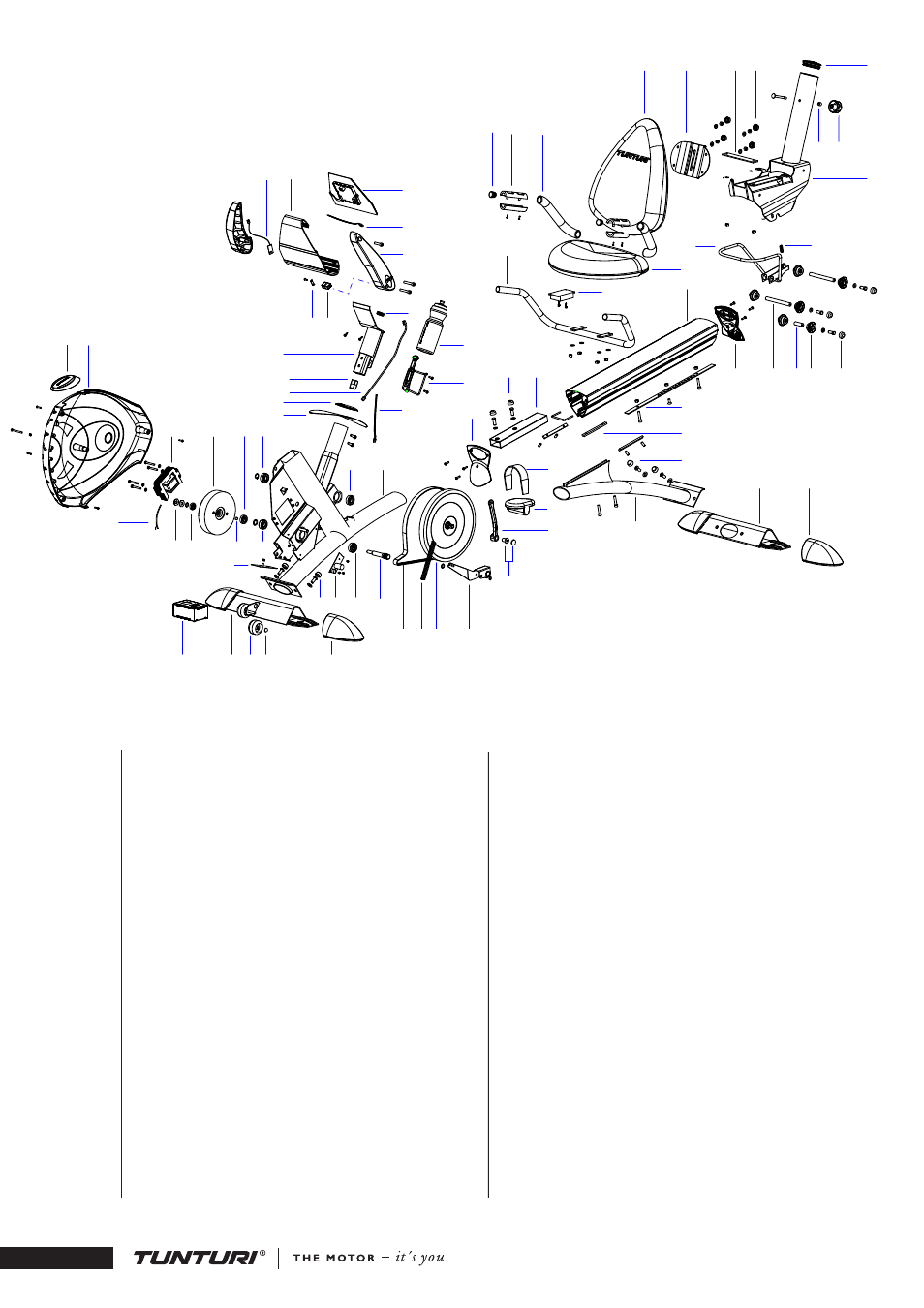

E5R (310020)
