Dimensional
Data

TSC072-120

All dimensions are in inches/millimeters.

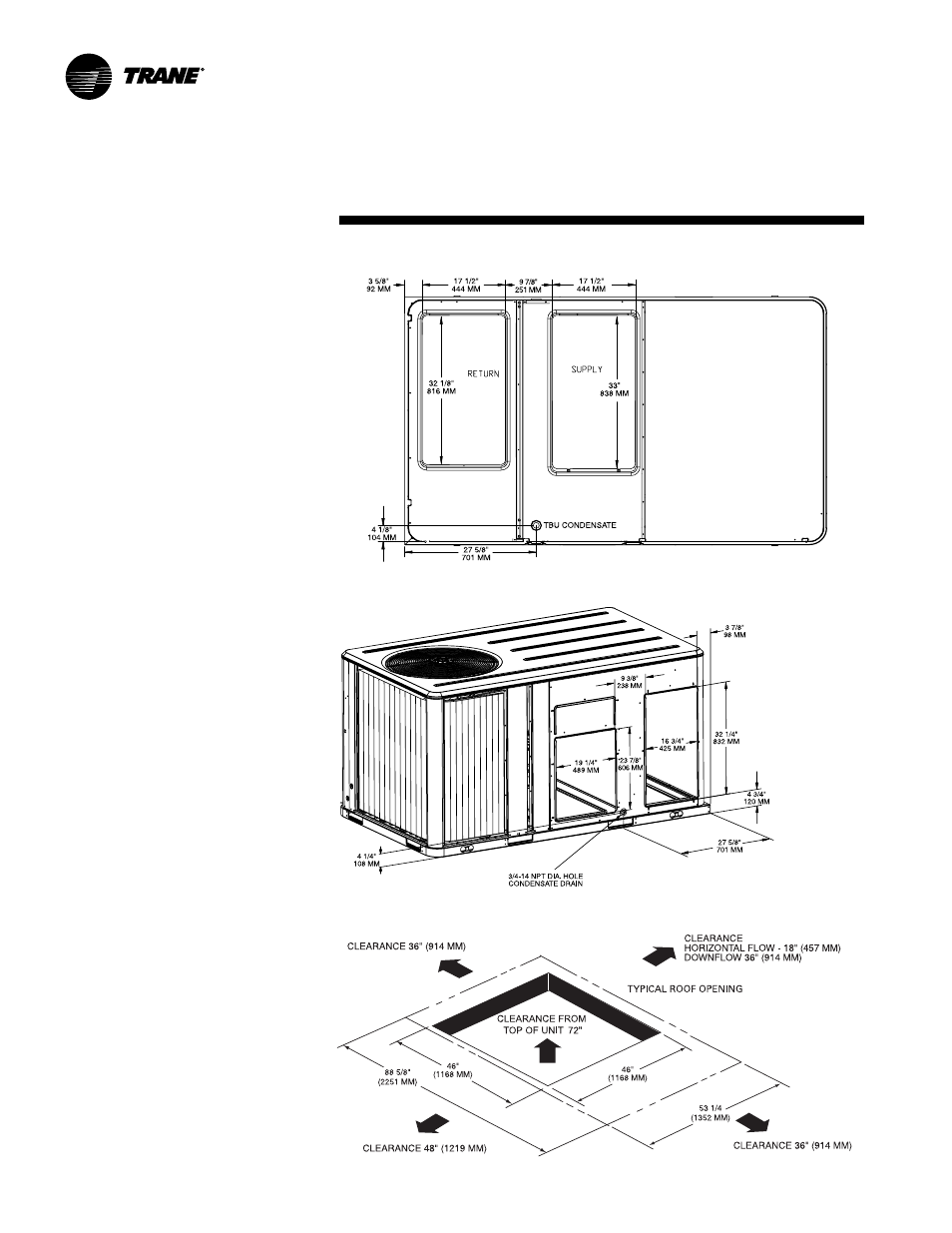

TSC072-120 — Downflow Airflow Supply
and Return

TSC072-120 — Horizontal Airflow Supply
and Return

TSC072-120 — Unit Clearance and Roof
Opening
