Page 11

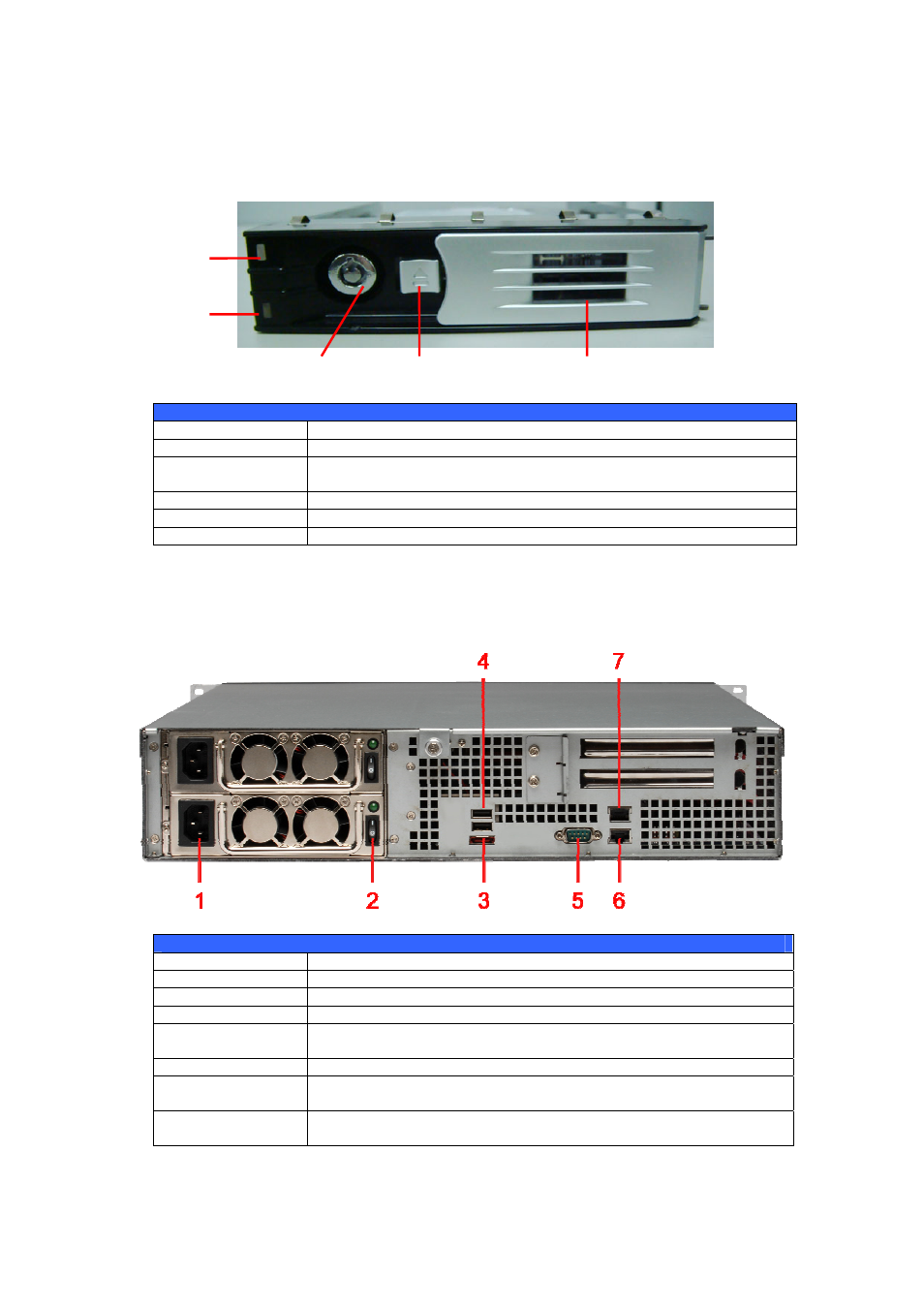

Hard Disk Trays

Each of the N8800’s hard disk trays has a lock, a latch, and two LED indicators:

Hard Disk Trays

Item Description
1.HDD Power LED

• Solid blue: hard disk is powered on

2.HDD
Access/Error LED

• Blinking green: system is accessing data on the hard disk

3.Lock

• Use the lock to physically secure the hard disk to the unit

4.Latch

• Use to open and remove or close and secure the tray

5.Handle

• Pull out HDD tray

Rear Panel

The Thecus ’s rear panel features ports and connectors.

Back Panel

Item Description
1.Power Connector • Connect the included power cords to these connectors
2.Power Switch

• Switch for power supply

3.eSATA Port

• eSATA port for high-speed storage expansion

4.USB Port

• USB 2.0 port for compatible USB devices, such as USB disks,

and USB printers

5.Serial Port

• This port is for external UPS device

6.WAN Port

• WAN port for connecting to an Ethernet network through a

switch or router

7.LAN Port

• LAN port for connecting to an Ethernet network through a switch

or router
