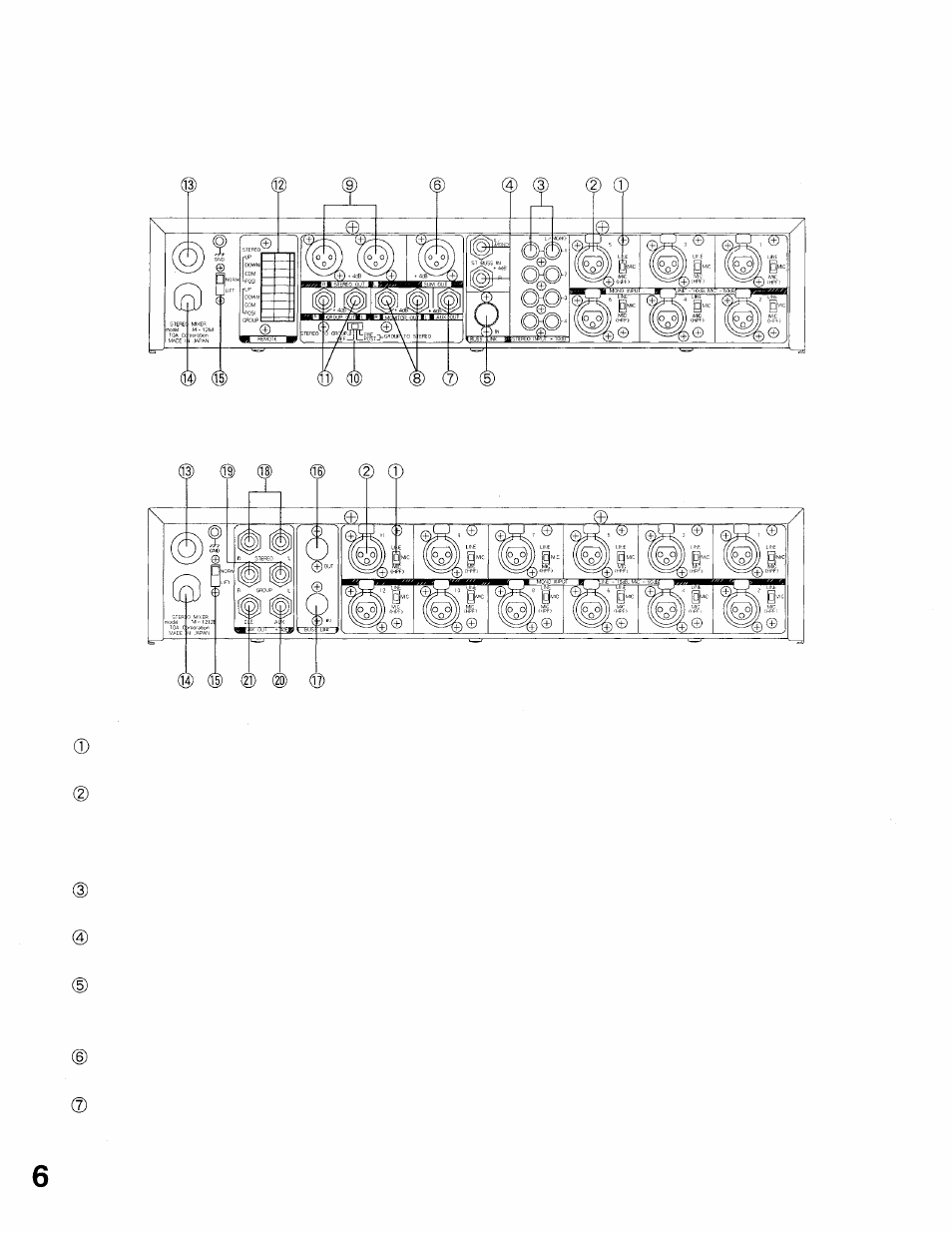

NOMENCLATURE [Rear Panel]

[M-1264] (Main unit)

[M-1212E] (Expansion unit)

Input level selection switches [LINE/MIC/MIC (HPF) ]

Set each monaural input level for Line, Mic or Mic with highpass filter.

Monaural input XLR connectors [MONO INPUT 1~6 (M-1264) /1~12 (M-1212E) ]

This electronically-balanced input can be changed to the transformer-balanced type using an optional input

transformer. (Refer to the section "Input Transformer Mounting" on page 8.) Phantom power (+24V DC) can also

be supplied to each input.

Stereo input RCA jacks [STEREO INPUT 1~4 L/MONO, R]

Unbalanced stereo input.

Auxiliary stereo input phone jacks [ST BUSS IN L/MONO, R]

Unbalanced stereo input to send signals to the stereo bus.

Bus-link input terminal [BUSS LINK IN]

Connects to the M-1212E's bus-link output for monaural input expansion. (For connection, use the cable supplied

with the M-1212E.)

Sum output XLR connector [SUM OUT]

Electronically-balanced stereo sum output.

AUX output phone jack [AUX OUT]

Unbalanced AUX output.
