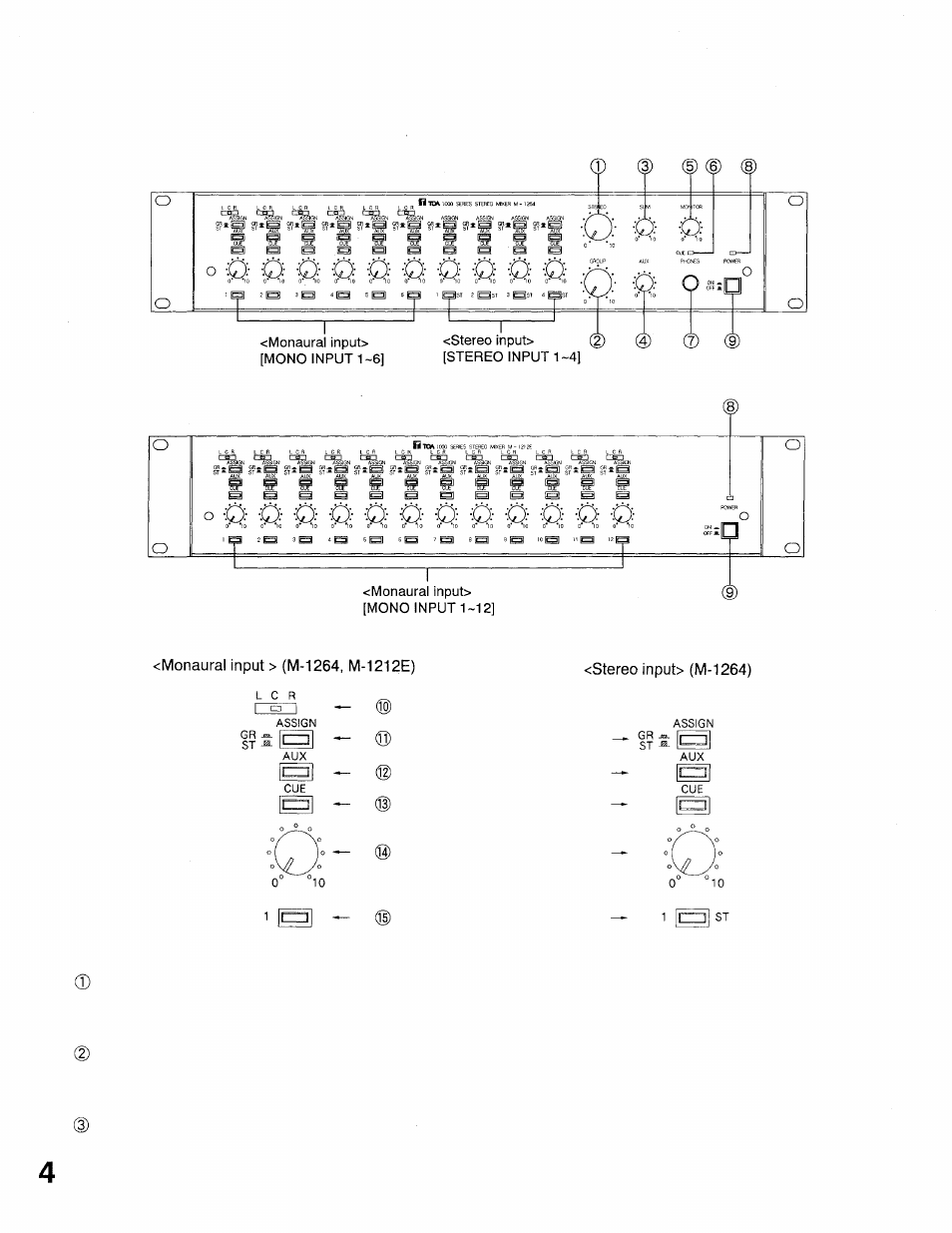

NOMENCLATURE [Front Panel]

[M-1264] (Main unit)

[M-1212E] (Expansion unit)

Stereo output level control [STEREO]

Adjusts the level to send out a mixed input signal from the stereo bus to the stereo output. This control can be

remotely operated.

Group output level control [GROUP]

Adjusts the level to send out a mixed input signal from the group bus to the group output. This control can be

remotely operated.

Sum output level control [SUM]

Adjusts the stereo sum output signal level.

L/C/R assign switch [L/C/R]

Bus assign switch [ASSIGN]

Aux assign switch [AUX]

Cue switch [CUE]

Input level control

Channel switch/indicator
