Upgrading a Phaser¨ 200e, 200i or 220e printer to a Phaser¨ 240

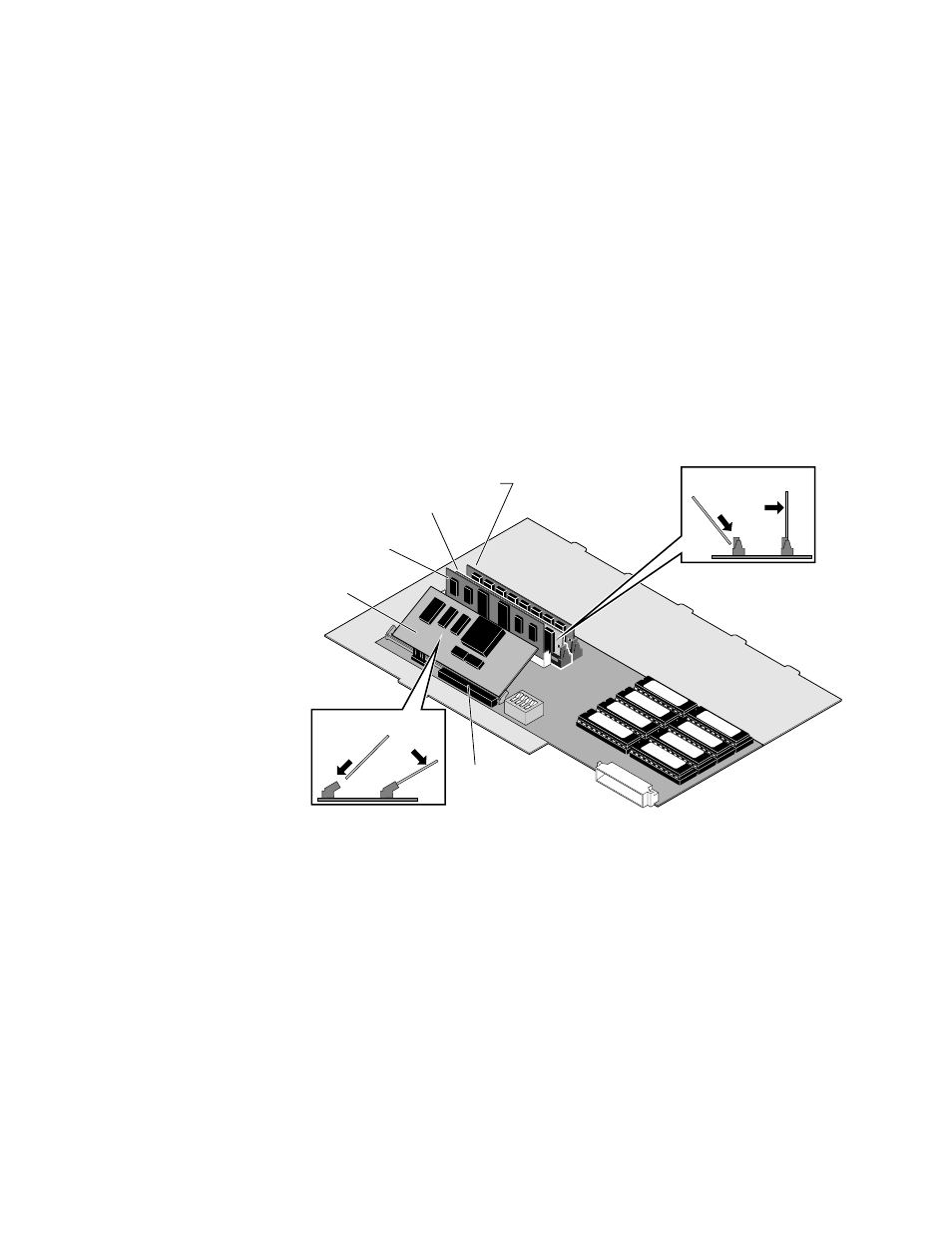

SIMM installation on the new image processor board
1. If installed, remove the font module by spreading the pawls at each
end of the font module connector securing the module in place.
2. Installing the RAM SIMM. Insert the RAM SIMM in connector J7 ( a ), and
tilt the card upright until it locks in place ( b ). When properly inserted,
a tab on each end of the connector slips into a hole on each end of the
card. Also, a pawl on each end of the connector latches around each
end of the card to lock it in place.
3. Installing the Ethernet card. Insert the Ethernet card in connector J30 ( a ),
and tilt the card upright until it locks in place ( b ). When properly
inserted, a tab on each end of the connector slips into a hole on each
end of the card. Also, a metal pawl on each end of the connector
latches around each end of the card to lock it in place.
4. Reinstall the font module, if removed. Like the RAM SIMM, when
properly inserted, a tab on each end of the connector slips into a hole
on each end of the card. Also, a pawl on each end of the connector
latches around each end of the card to lock it in place.
16-0
00-0
16-1
00-1
16-2
00-2
16-3
00-3
Standard
RAM SIMM
Optional
RAM SIMM
Font
module
Ethernet
card
I/O board
connector
31865-04
a b
a b
