Getting start with your Powerline Device

Before installing your Powerline networking device, please examine and familiarize yourself with

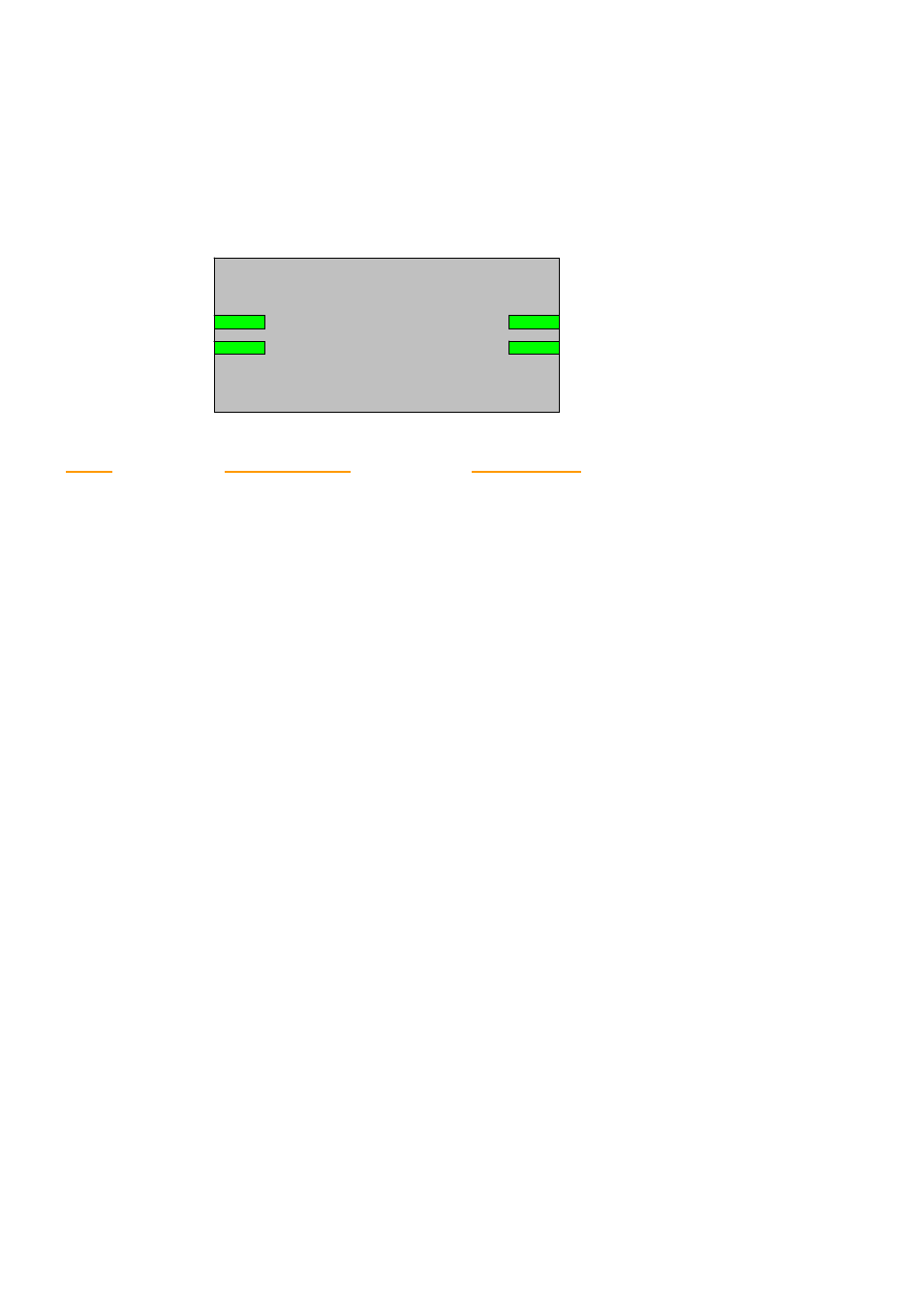

it. Below is a diagram of the TPL-110AP along with a brief description of what each LED

and slot represent.

Collisions

Activity

Power

WLAN

Collisions

Activity

Power

WLAN

LED

LED STATUS

INDICATION

Collisions (COL) Blinking Collisions Detected

OFF No Collisions Detected

Activity (ACT) Blinking Looking for Powerline Devices

Fast Blinking Transmit/receive data

OFF No Network Traffic

Power ON Power On

Off Power Off

WLAN ON Wireless Connection

Blinking Transmitting/Receiving wireless data traffic


What This Package Contains?

Upon you receive your wireless access point, please check that

the following contents are packaged:

- HomePlug Wireless Access Point (TPL-110AP)

- CD-Rom (User’s Guide)

- Multi-Language Quick Install Guide

Necessary Equipment?

- One or more computers with wireless device, and it's software already installed

- Microsoft TCP/IP networking protocol installed on each PC

- Web browser installed on each PC
