Dimensions
and Weights

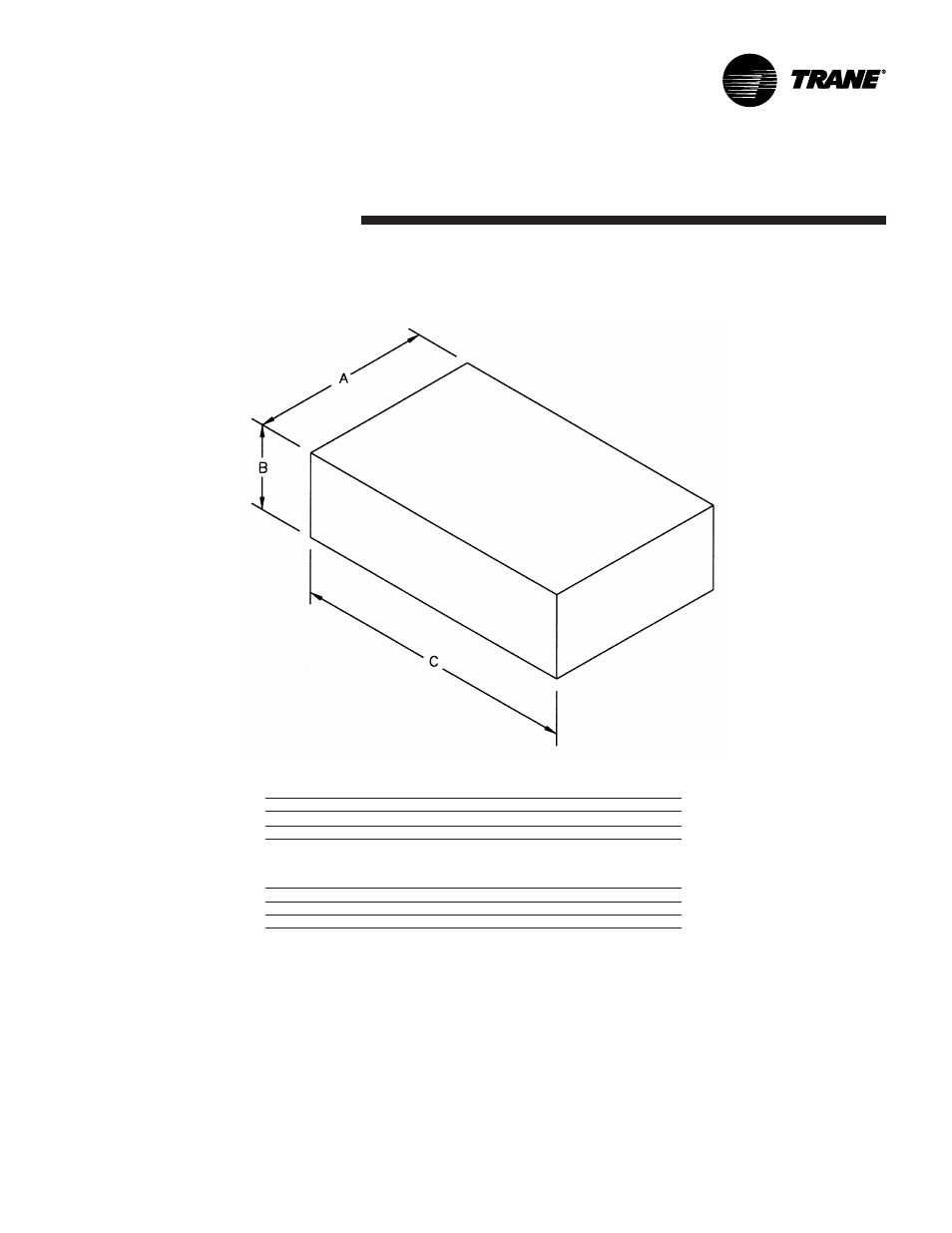

Flexible Horizontal Discharge Plenum Dimensions - English - (inches)
20-35 Tons
A
B
C
Low Height
35
17
1
/
4
86
1
/
2
Standard Height
35
25
1
/
4
86
1
/
2
Flexible Horizontal Discharge Plenum Dimensions - Metric (mm)
20-35 Tons
A
B
C
Low Height
889
438
2197
Standard Height
889
641
2197
Flexible Horizontal Discharge
Plenum
Installation
