11
ASSEMBLY INSTRUCTIONS

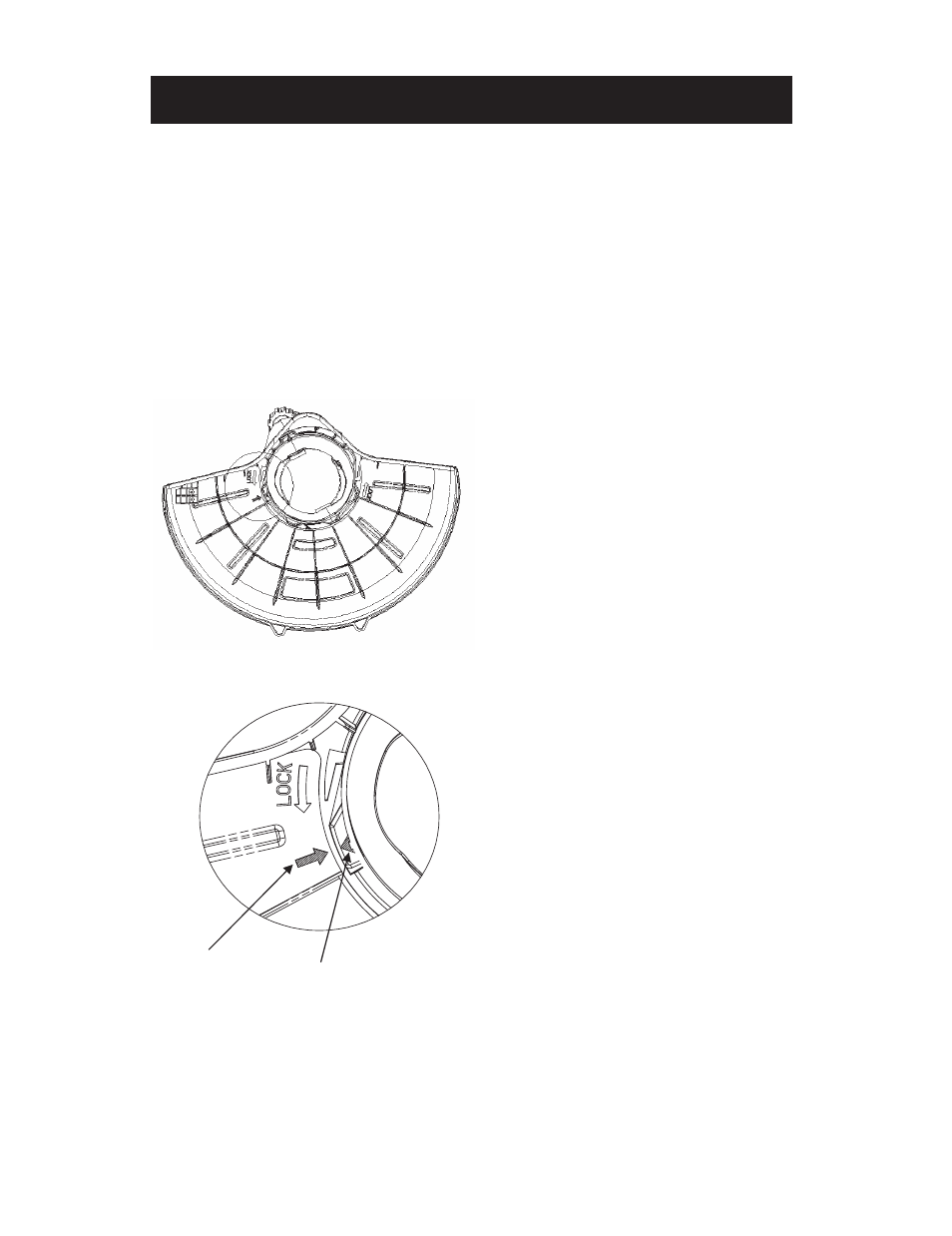

DEBRIS SHIELD INSTALLATION
1. Align the installation arrow 1 on the
debris shield with the installation arrow
2 on the housing as shown. (Fig.5 and
Fig. 6.)
2. Twist the debris shield in the LOCK
direction shown, until it snaps securely
into place (Fig.6). Make sure the debris
shield is assembled to the unit as shown
in the KNOW YOUR TRIMMER
section of the manual.
Fig. 5
arrow 1 arrow 2
Fig. 6
