Assembly & Set-Up
3
7
Contents of Carton
• One Snow Thrower • One 20 oz. Bottle 5W-30 Oil • Two Ignition Keys
• One Chute Assembly • One Chute Rotation Control (If equip.) • One Set of Drift Cutters (If equip.)
• One Snow Thrower Operator’s Manual • One Engine Operator’s Manual
NOTE: This Operator’s Manual covers several models. Snow
thrower features may vary by model. Not all features in this
manual are applicable to all snow thrower models and the snow
thrower depicted may differ from yours.
NOTE: All references to the left or right side of the snow thrower
are from the operator’s position. Any exceptions will be noted.

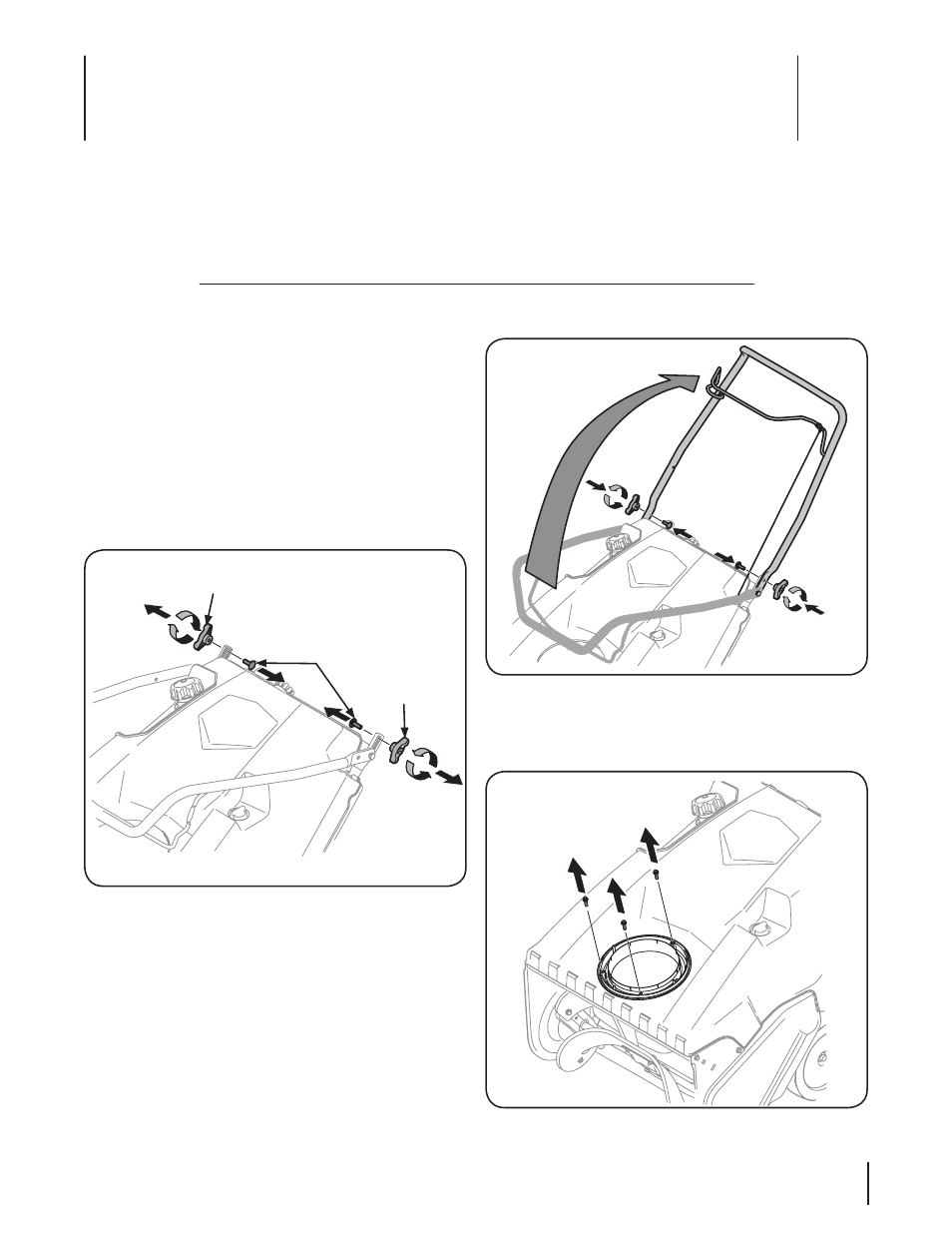

Assembly
Positioning the Upper Handle
1. Remove the wing knob and carriage bolt from the top of
the lower handle. See Fig. 3-1. It is not necessary to remove
the shoulder screw and flange lock nut below the wing
knob and carriage bolt.
2. Pivot the upper handle into the operating position. Be sure
not to pinch any of the cables in the process. See Fig. 3-2.
Installing the Chute
1. Remove the hex washer screws in the chute base. See Fig. 3-3.
Wing Knob
Wing Knob
Carriage Bolts
Figure 3-1
Figure 3-2
Figure 3-3
