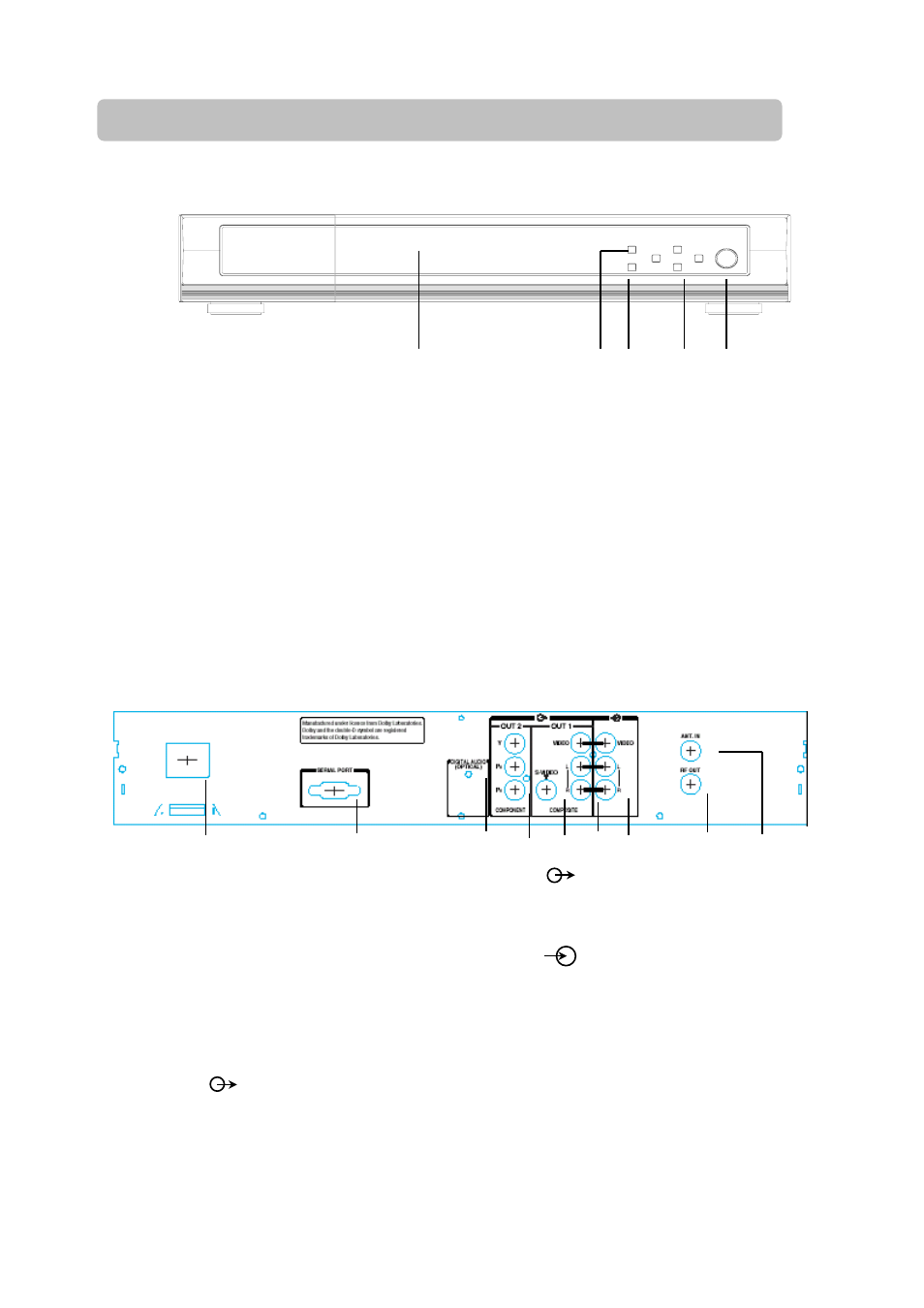

IDENTIFICATION OF CONTROLS
Front Panel
LED Display
Four-digit channel number, time or video format
Two LEDs:
Green for power; Red for signal indication (OFF –signal captured, ON –no signal)
MENU / ENTER (Please refer to pp. 17 for more details)
EXIT / V.OUTPUT
→ OUT1 & OUT2 description (Zinwell)
Direction Keys
Power on / off
Rear Panel
AC MAINS SUPPLY (OUT1) Composite- VIDEO / L
/ R
100~240 V
AC
, 50/60 Hz For connection to TV monitor’s Video/L/R
inputs
SERIAL PORT
For connection to PC for software upgrade For connection to DVD or VCR Video/L/R
output
DIGITAL AUDIO (OPTICAL) RF OUT
For connection to an amplifier equipped For connection to analogue TV’s ANT. IN
with Dolby® Digital decoder
(OUT2) Component – Y/Pb/Pr ANT.IN
For connection to TV monitor’s For connection to UHF/VHF antenna
component video inputs
S-VIDEO (OUT1)
For connection to TV monitor’s S-Video input
