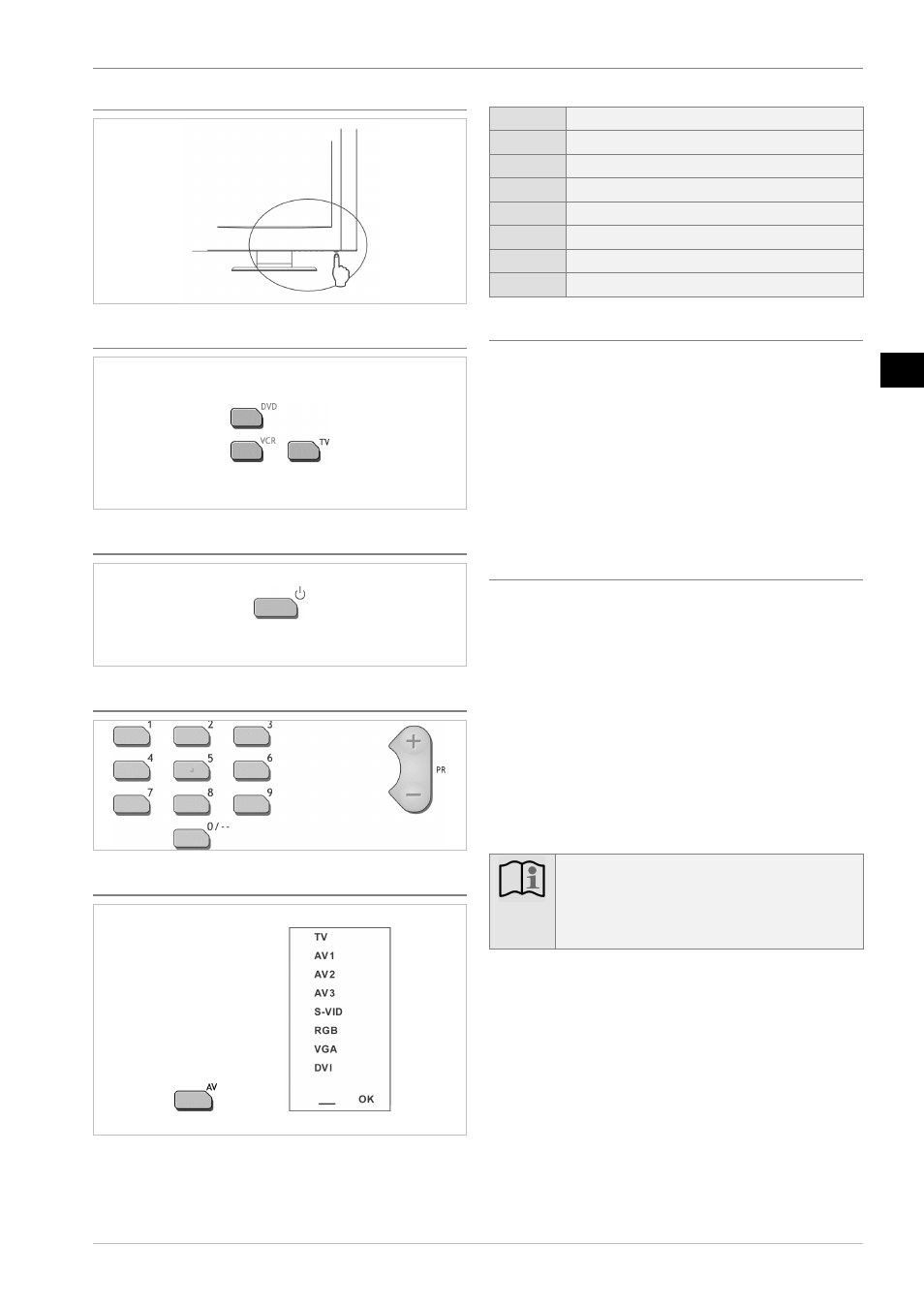

Quick guide
5
Switching on the unit
Selecting TV mode on the remote control
Switching the TV on and to standby mode
Selecting channels
Selecting inputs
1. Select the input using arrow buttons Ÿ / ⁄.
2. Press the OK button 24 to store the setting.
TV Antenna (75 Ohm)
AV 1 Signal input and output
AV 2 Signal input
AV 3 Signal input (only 23LB020S4 and 30LB020S4)
S-VHS S-VHS input (via Scart 2)
RGB Signal with maximum picture quality (via Scart 1)
VGA VGA input
DVI DVI input
Television reception via the antenna cable
1. Connect domestic antenna or cable system
(see no. 7 Sockets on the rear of the unit page 4).
2. Connect TV set to the power supply
(see Connecting to the mains power supply page 4).
3. Select TV input (see Selecting sockets page 26).
4. Start automatic search
(see Initial startup procedure page 13).
5. Select channels: use the arrow buttons Ÿ / ⁄ or numerical
buttons 28 (see Channel selection page 13).
Television reception via Scart socket (e.g. SAT or cable
receiver)
1. Connect SAT receiver (see no. 4, 5 or 6 Sockets on the rear of
the unit page 4).
2. Connect TV set to the power supply
(see Connecting to the mains power supply page 4).
3. Select Scart input (AV 1, AV 2 or AV 3, see Selecting sockets
page 26).
Usually the Scart input is assigned to the first TV channel po-
sition and adjusted via the arrow buttons Ÿ / ⁄.
4. Set up and switch on SAT receiver (see SAT receiver instruc-
tion manual).
5. Select channels:
Do not use PR + / - buttons or numerical buttons, instead use
the SAT receiver (see SAT receiver instruction manual).
Note:
If the television reception is input via a SAT receiver
and the channel position in the TV changes, the correct
Scart input must be assigned to the new channel posi-
tion (see Point 3).
