Status leds, Dip switches – Tripp Lite SNMP Solo MT-SE-37/02 User Manual
Page 10
SNMP Solo
4
SNMP Solo Package
Network connection ports—SNMP Solo provides a BNC
connector for 10Base-2 connection and a UTP (RJ-45)
connector for 10Base-T networks.
Power connection port–SNMP Solo provides a connector for
a 9VDC power supply.
The following illustration shows the serial port and the DIP
switch. The serial port serves two purposes—adapter
configuration and UPS communication.

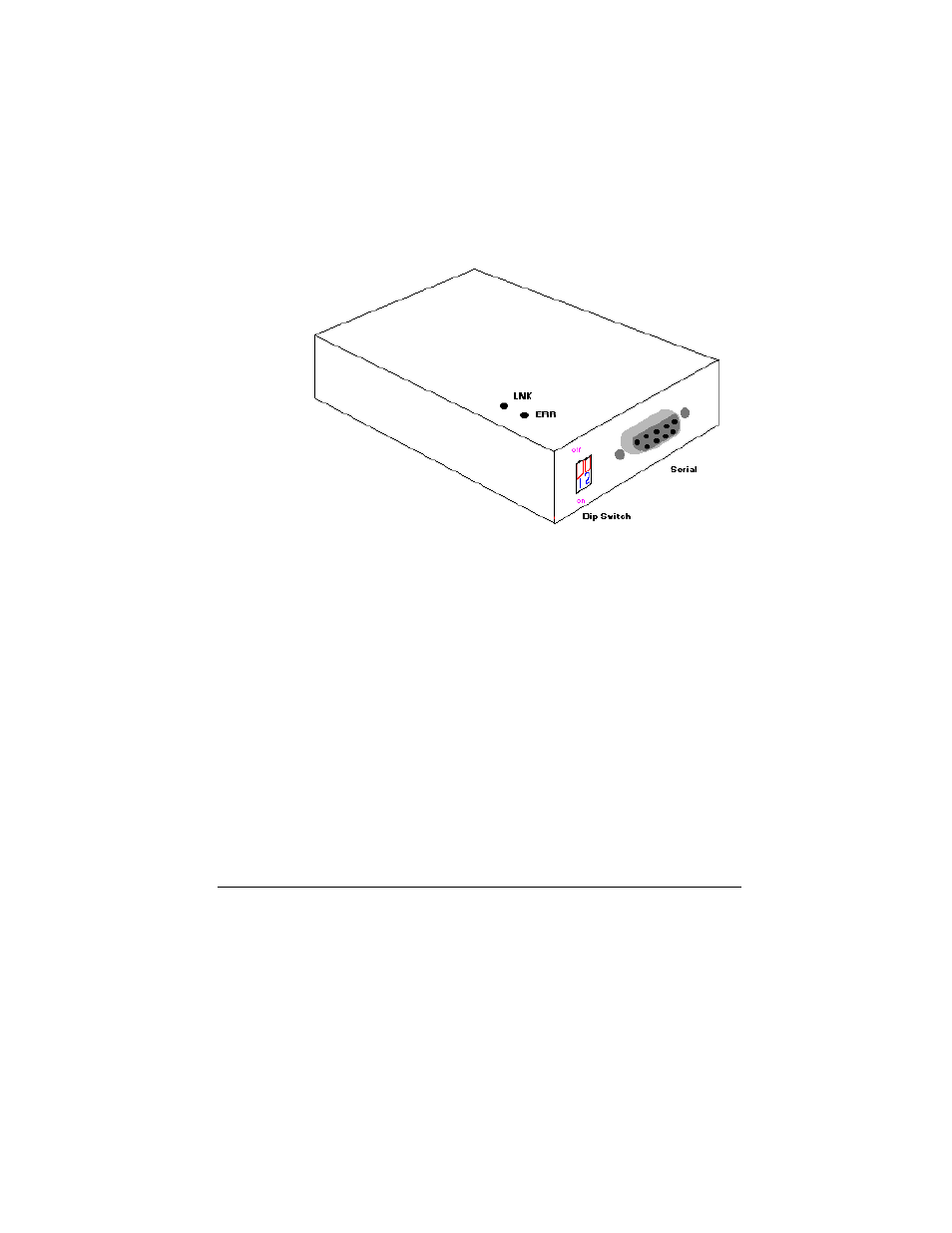

Figure 3 SNMP Solo Serial Port Panel
Status LEDs
The LED indicators inform you of network activity, which is the
green LNK light, and the UPS status, which is the red ERR light.
DIP Switches
Use the DIP switch to configure with a dumb terminal or to
communicate with the UPS for status monitoring.
