Remoting Antennas: It will be necessary to
remote both the transmit and receive antennas
on the BTR-300 when it is rack mounted.
Connect the coax cable assembly (not sup-
plied), to the receive antenna receptacle and
mount the 5/8-wave antenna. The antenna can
be attached to either a wall mount bracket or a
microphone stand bracket (not supplied). See
“Accessory” section for order information.
You will also need to remote the transmit an-
tenna in the same manner. Connect a coax ca-
b l e a s s e m b l y t o t h e t r a n s m i t a n t e n n a
receptacle. Mount the 5/8-wave antenna by at-
taching it to a bracket (not supplied).

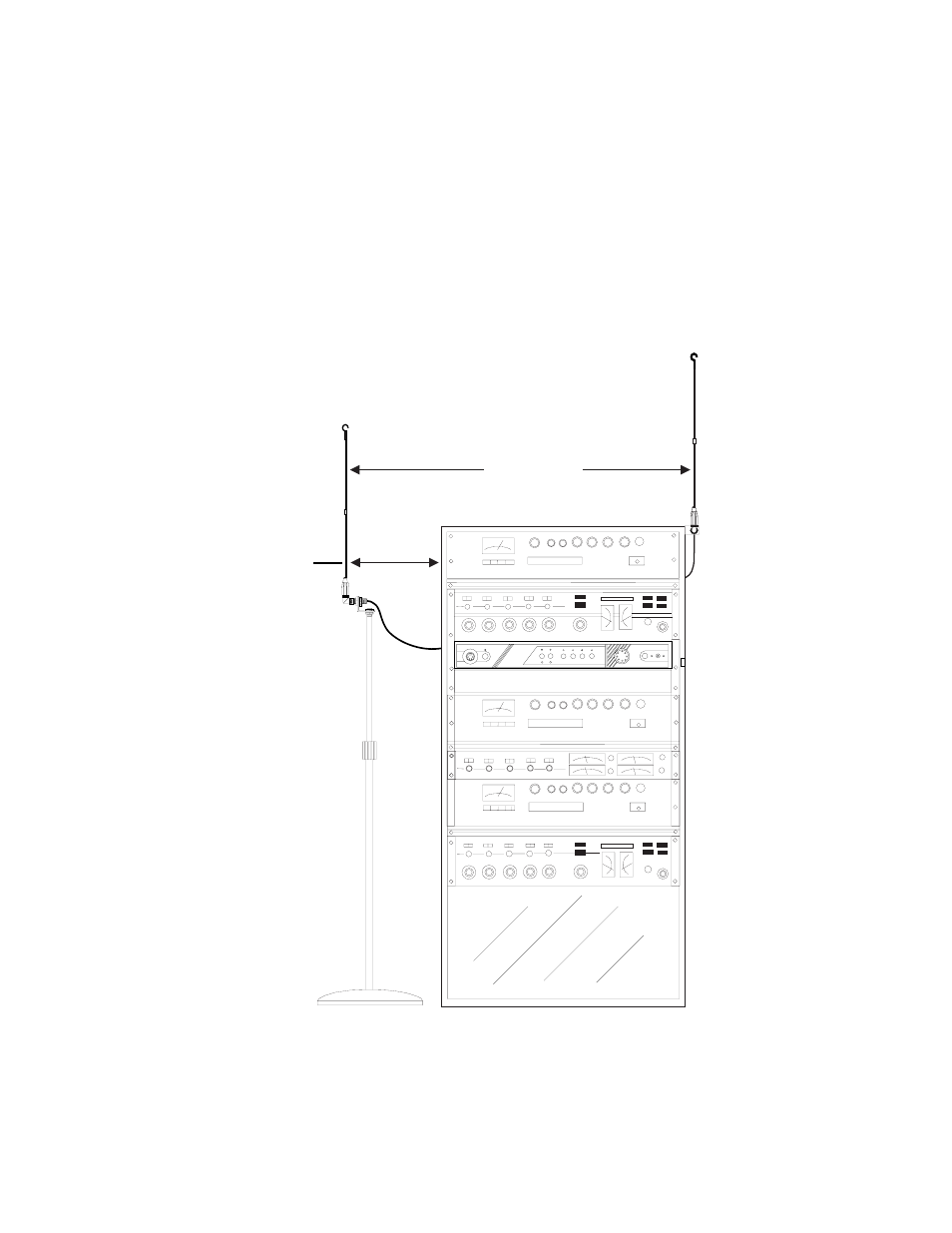

Figure 12
Remoting Antennas when Rack Mounted
-17-
Ext Intercom Aux Audio 1 3 4 2 Portable Station Connect
BTR-300
Talk Headset Controls
Volume Power Headset
Portable Transmit On
Gain O/M Push Twice to Latch
RadioCom ä
6 FT (2m)
or more
is best
2 FT (60cm)
minimum
distance
