MAKING THE CONNECTIONS

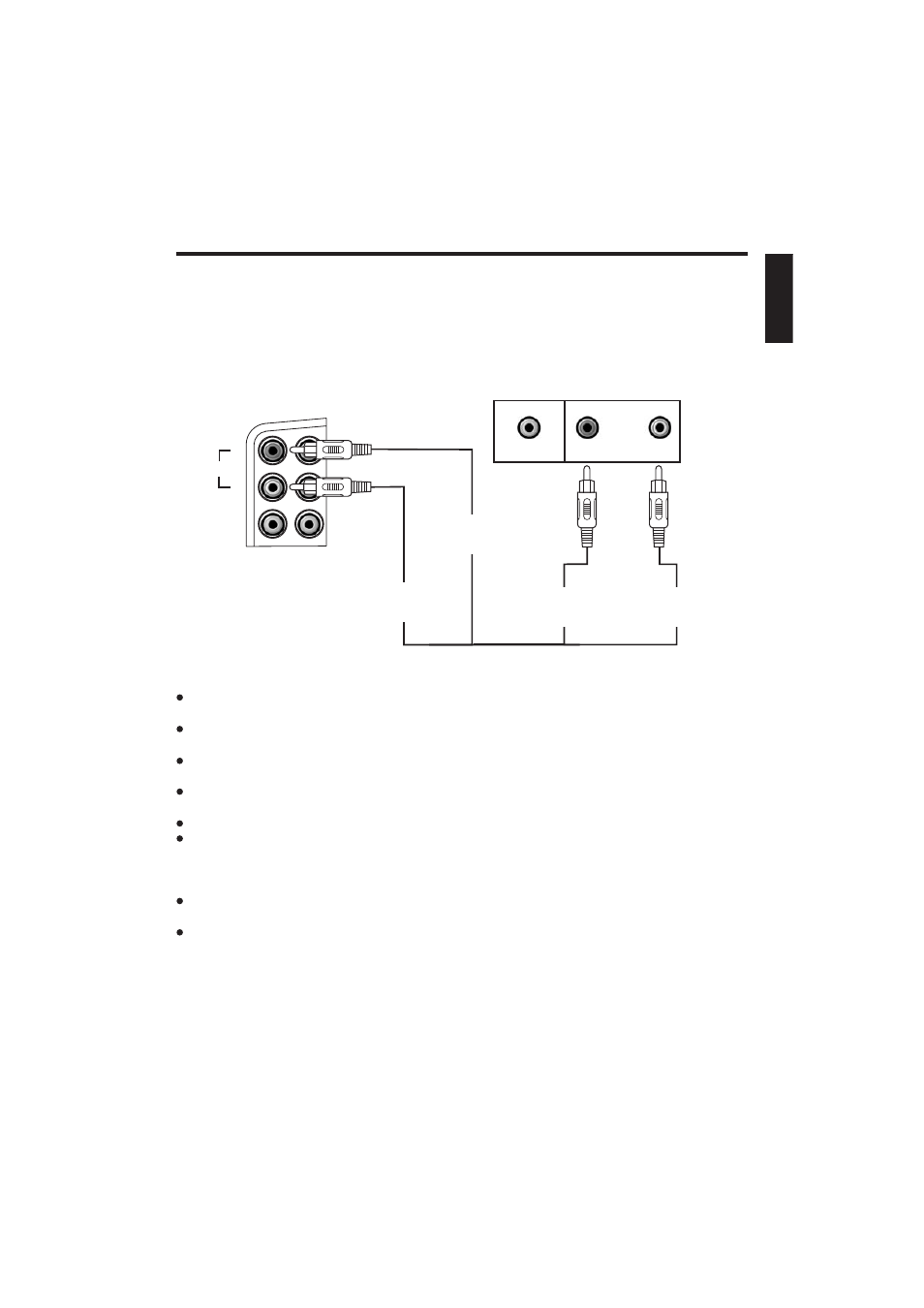

CONNECTING AN AUDIO COMPONENT FOR INPUT
To connect another audio source (such as a Tuner, an AV Receiver or a VCR) so you can sing
along with its music, simply connect the Audio Output jacks (Red & White RCA jacks) to the
Singing Machine’s AUX IN L & R jacks.
MONITOR SELECTOR
To play a CDG disc, set the Monitor Selector to either CAMERA, iPod/CDG , AUX or OFF
mode.
To display CDG lyrics on the Singing Machine’s monitor, set the Monitor Selector to
iPod/CDG mode.
To display your image on the Singing Machine’s monitor, set the Monitor Selector to
CAMERA mode.
To display a video signal from another A/V component, set the Function Selector to AUX
mode and Monitor Selector to AUX mode.
To turn off the TFT on the Singing Machine, set the Monitor Selector to OFF mode.
Adjust the LCD ADJ. buttons located under the LCD monitor of the Singing Machine for the
best picture quality. (#23 noted on the control locations on page E8)
VIDEO OUT SELECTOR
To display image on the TV, set Function Selector to iPod, CDG or AUX position and set the
Video Out Selector to CAMERA mode.
To display CDG lyrics on the TV, set Function Selector to CDG position and set the Video Out
Selector to iPod/CDG mode.
E14
ANOTHER
AUDIO COMPONENT
R L
VIDEO OUT AUDIO OUT
SIDE VIEW OF
SINGING MACHINE
AUDIO OUTPUT
L
(WHITE JACK)
AUDIO OUTPUT
R
(RED JACK)
AUX INPUT
L
(WHITE JACK)
AUX INPUT
R
(RED JACK)
IN OUT
VIDEO
AUX
R
L
