MAKING THE CONNECTIONS
CONNECTING POWER
You can power the system from a standard AC outlet by using the supplied power cord.
CAUTION: The supplied AC power cord has a polarized plug that fits into the wall outlet only one
way. If the plug does not fit properly, turn it over and try again. Do not force it.
CONNECTING TO YOUR HEADPHONE
A headphone jack is provided for using headphones instead of the built-in speaker.
(Headphones are sold separately.)
WARNING: Excessive sound pressure from headphones can cause hearing loss.
CONNECTING TO YOUR TV
The Singing Machine includes RCA cords to provide you the option of either connecting an
external audio/sound system and/or video device. The cords have three RCA plugs at each end;
the White and Red are for left and right audio connections, the Yellow is to connect the video.
It is recommended that a CDG disc is playing while connecting your TV or VCR. The display of
the Singing Machine logo or lyrics on your TV screen will insure you have connected your TV or
VCR properly.
VIDEO CONNECTION
Please follow the steps below to display CDG lyrics on the TV screen:
(1) Locate the multicolored patch cords.
(2)
(3) Connect the other end of the Video Cable (yellow) to the Video Input on your TV or
VCR.
Connect video cable (yellow) to the Video Out jack on the side of the Singing Machine.
E11
IN OUT
VIDEO
AUX
R
L

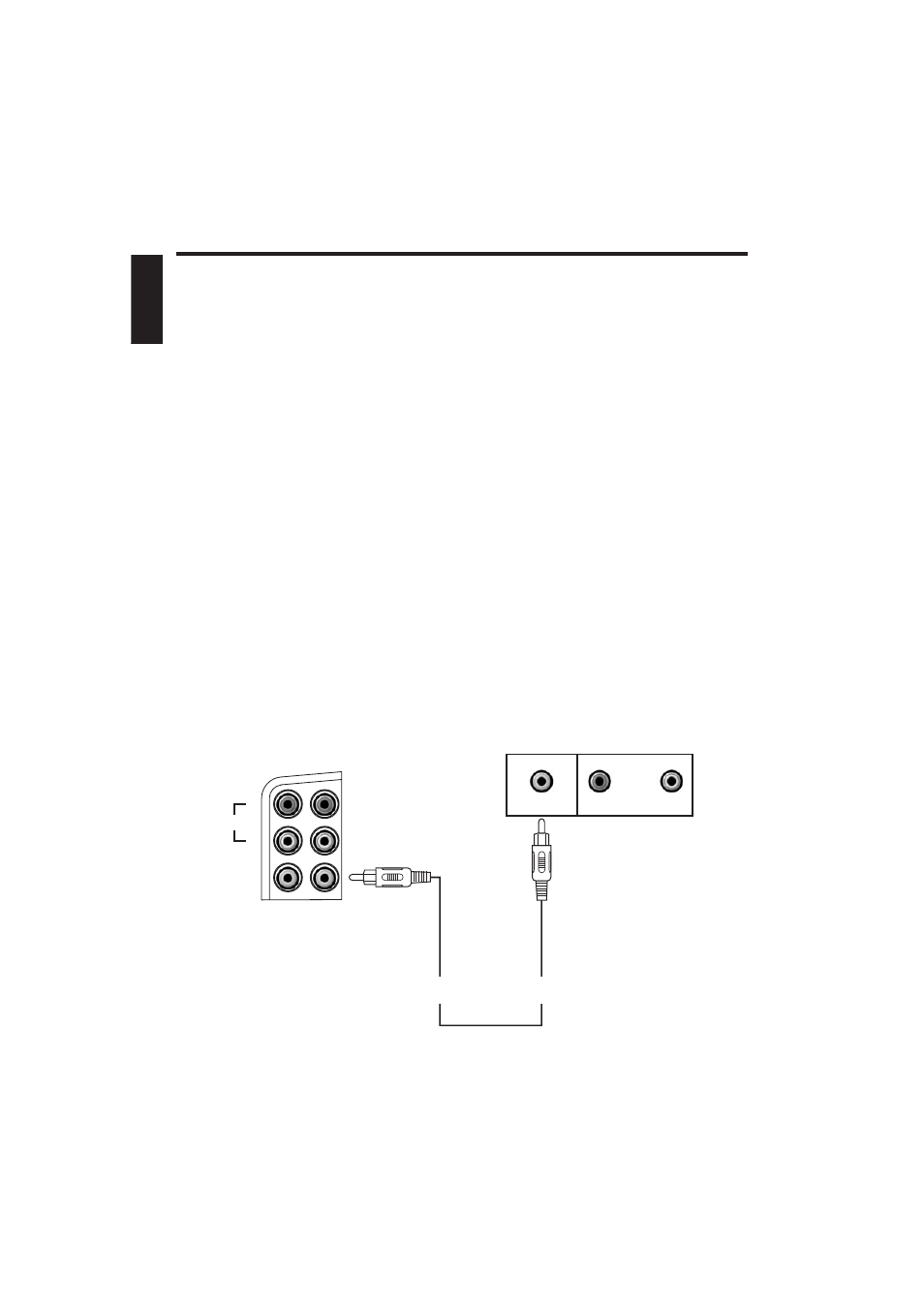

VIDEO OUTPUT
(YELLOW JACK)
VIDEO INPUT
(YELLOW JACK)
SIDE VIEW OF
SINGING MACHINE REAR VIEW OF TV
R L
VIDEO IN AUDIO IN
