11

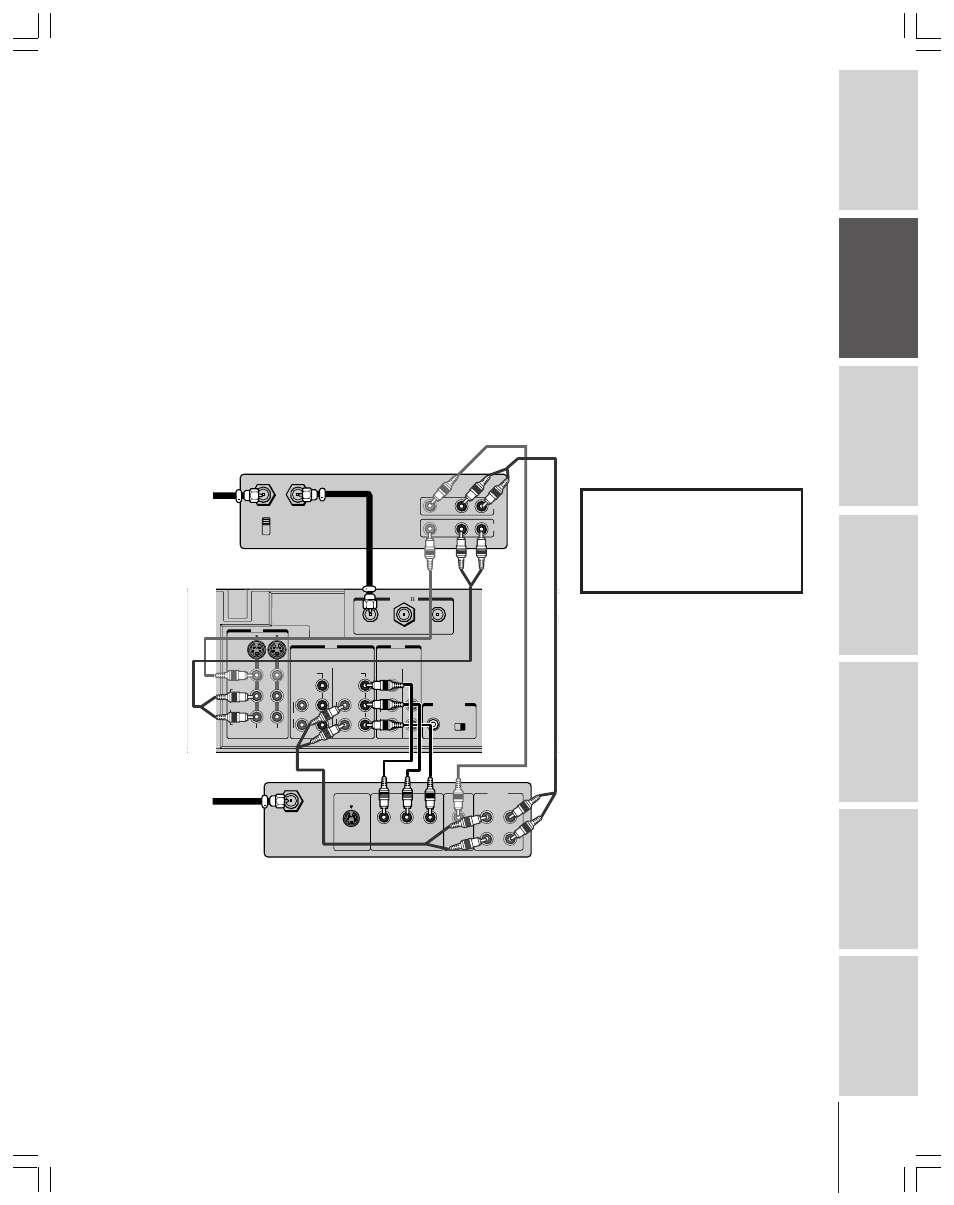

Connecting a DTV receiver/set-top box with
component video and a VCR
This connection allows you to watch DTV (digital TV broadcast),
VCR, and TV programs, and record DTV and TV programs. You can
record from one source while watching a program from another
source.
Your TV has ColorStream (component video) inputs. Connecting
your TV to a DTV receiver with component video can greatly
enhance picture quality and realism.
You will need:
• three coaxial cables (one or more may be provided by your cable
company)
• three pairs of audio cables (two single and one pair of audio
cables for a mono VCR)
• two video cables
• one set of component video cables (one S-video cable for a non-
component video DTV receiver; see notes at right)
VIDEO
OUT
S-VIDEO
AUDIO
COMPONENT VIDEO
OUT
L
R
L
R
P R P B Y
Satelite IN
IN from ANT OUT to TV
CH 3
CH 4
VIDEO AUDIO
L R
IN
OUT
ANT-1 OUT ANT-2
ANT(75 )
S-VIDEO
VIDEO
L/MONO
AUDIO
R
VIDEO-2 VIDEO-1
Y
P B
P R
L
Y
P B
P R AUDIO
COLOR
STREAM
HD - 2 COLOR
STREAM
HD - 1
R
L
AUDIO
R
OUT
AUDIO CENTER
CHANNEL IN
L/
MONO
AUDIO
ON OFF
VIDEO
VAR
AUDIO
L
R R
I N
I N
DTV receiver with component video
VCR
From
Antenna
From
DTV Antenna
TV
Note:
For the highest possible picture quality, use
component video cables between the TV and
DTV receiver. You can connect the
component video cables from the DTV
receiver to either ColorStream jack on the TV
(HD1 or HD2).
The ColorStream HD1 and HD2 jacks can be
used with Progressive (480p) and Interlace
(480i,1080i) scan systems.
If your DTV receiver is not component video
compatible, use the S-video connections
(plus the standard audio connections) instead
of the ColorStream connections. Do not
connect an S-Video cable and component
video cable between the TV and DTV receiver
at the same time or the picture performance
will be unacceptable.
The unauthorized recording, use, distribution,
or revision of television programs, videotapes,
DVDs, and other materials is prohibited under
the Copyright Laws of the United States and
other countries, and may subject you to civil
and criminal liability.
