10

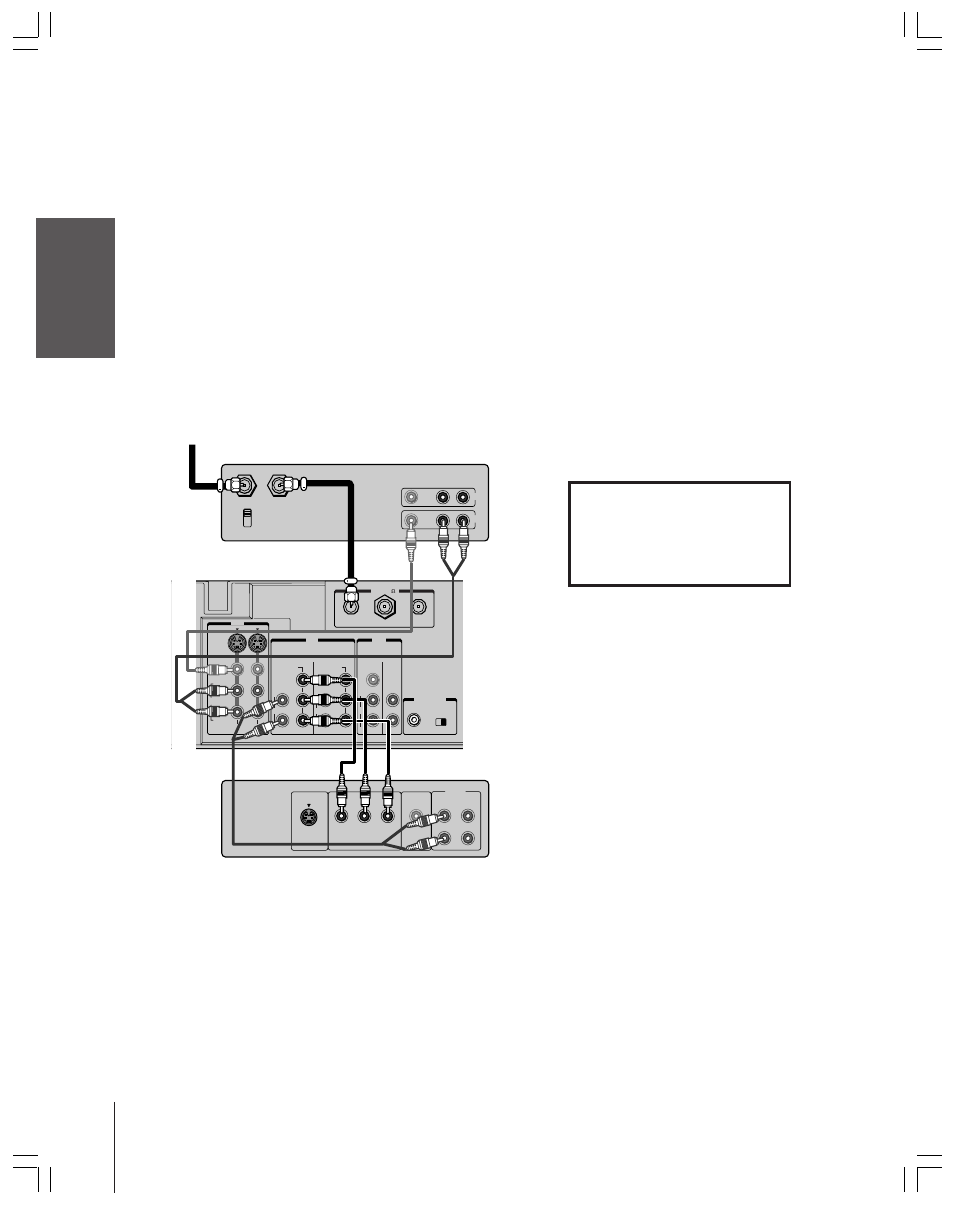

Connecting a DVD player with ColorStream ®
(component video) and a VCR
This connection allows you to watch DVD, VCR, and TV programs,
and record TV programs. You can record one channel while watching
another channel.
Your TV has ColorStream (component video) inputs. Connecting
your TV to a component video-compatible DVD player (such as a
Toshiba DVD player with ColorStream
® ) can greatly enhance picture
quality and realism.
You will need:
• two coaxial cables (one or more may be provided by your cable
company)
• three pairs of audio cables (two single and one pair of audio cables
for a mono VCR)
• two video cables
• one set of ColorStream (component video) cables (one S-video
cable for a non-ColorStream DVD player; see notes at right)
IN from ANT OUT to TV
CH 3
CH 4
VIDEO AUDIO
L R
IN
OUT
Satelite IN
VIDEO
OUT
S-VIDEO
AUDIO
COMPONENT VIDEO
OUT
L
R
L
R
P R P B Y
ANT-1 OUT ANT-2
ANT(75 )
S-VIDEO
VIDEO
L/MONO
AUDIO
R
VIDEO-2 VIDEO-1
Y
P B
P R
L
Y
P B
P R AUDIO
COLOR
STREAM
HD - 2 COLOR
STREAM
HD - 1
R
L
AUDIO
R
OUT
AUDIO CENTER
CHANNEL IN
L/
MONO
AUDIO
ON OFF
VIDEO
VAR
AUDIO
L
R R
I N
I N
Stereo VCR
From Antenna
TV
DVD player with component video
Note:
For the highest possible picture quality, use
component video cables between the TV and
DVD player. You can connect the
ColorStream cables from the DVD player to
either ColorStream jack on the TV (HD1 or
HD2).
The ColorStream HD1 and HD2 jacks can be
used with Progressive (480p) and Interlaced
(480i,1080i) scan systems.
If your DVD player is not component video
compatible, use the S-video connections
(plus the standard audio connections) instead
of the ColorStream connections. Do not
connect an S-Video cable and component
video cables between the TV and DVD player
at the same time or the picture performance
will be unacceptable.
The unauthorized recording, use, distribution,
or revision of television programs, videotapes,
DVDs, and other materials is prohibited under
the Copyright Laws of the United States and
other countries, and may subject you to civil
and criminal liability.
