TL-R860

Cable/DSL Router User Guide

- 11 -

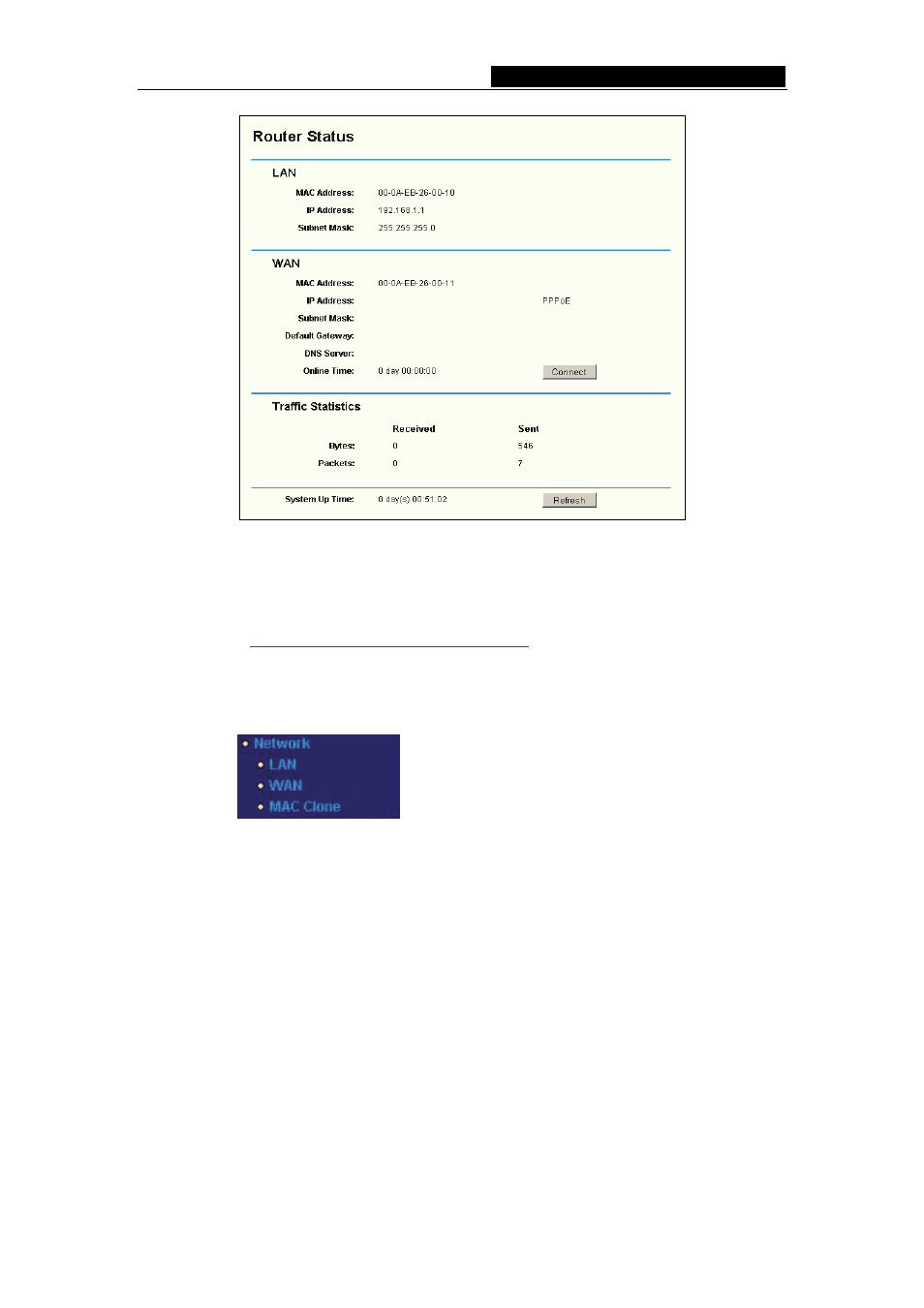

Figure 4-1 Router Status

4.3 Quick Setup

Please refer to

Section 4.2: "Quick Installation Guide."

4.4 Network

Figure 4-2 the Network menu

There are three submenus under the Network menu (shown in Figure 4-2): LAN, WAN
and MAC Clone. Click any of them, and you will be able to configure the corresponding
function. The detailed explanations for each submenu are provided below.

4.4.1 LAN

You can configure the IP parameters of the LAN on this page.
