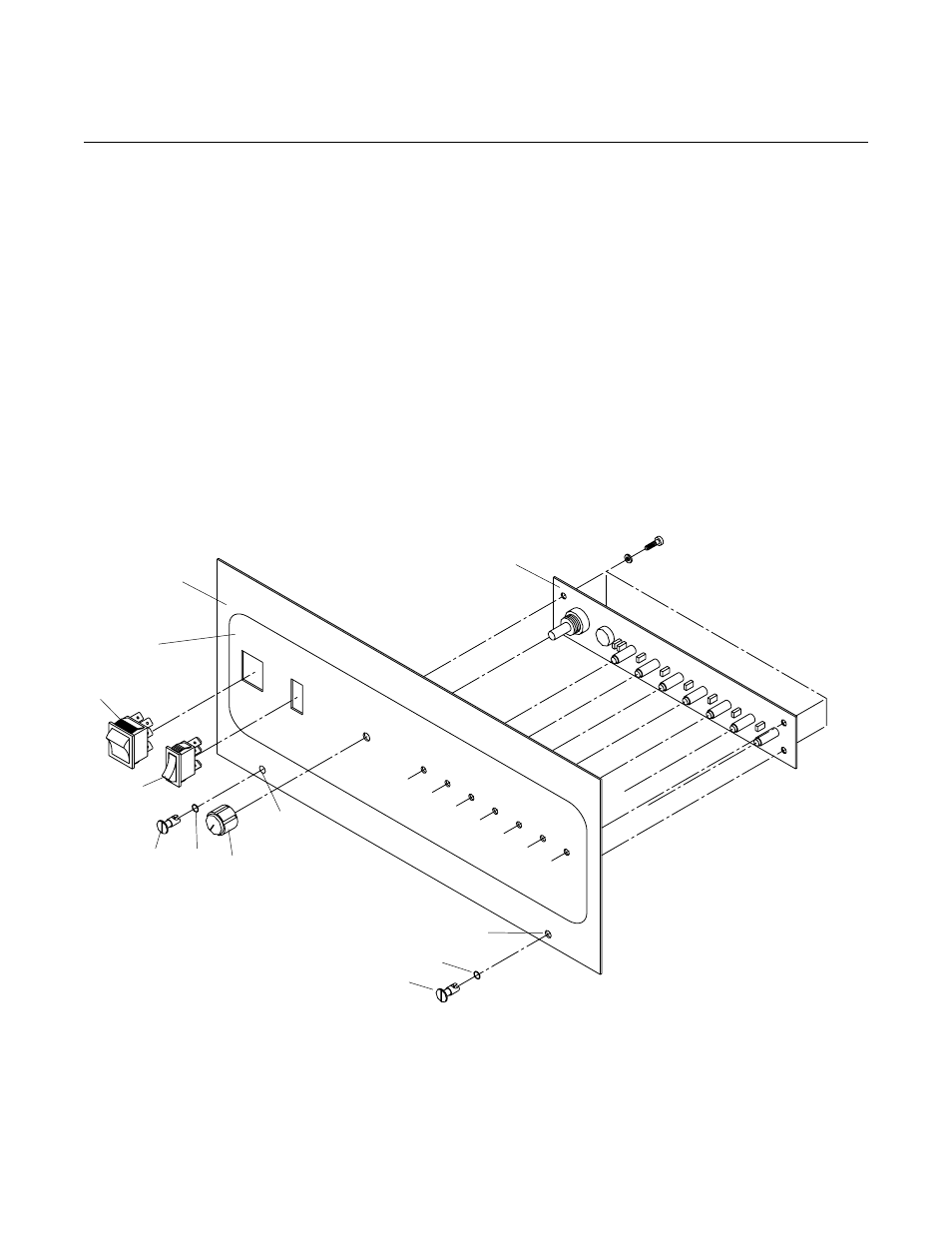

6.04 Access Panel Replacement Parts
Item # Qty. Description Catalog #
1 Access Panel Assembly Includes: 8-3257
1 1 Access Panel With Overlay 8-6302
2 1 Access Panel Overlay 8-3306
3 1 ON/OFF Rocker Switch, DPST 8-3258
4 1 Switch, Rocker, SPDT, Center Off 8-3259
5 1 LED/Current Control PC Board Assembly 9-5759
6 1 Knob, Inner Concentric 9-4146
7 2 Fastener Receptacle 9-3995
8 2 "DZUS" Stud 9-4346
9 2 "DZUS" Retaining Ring 9-4347
A-00967
1
2
3
4
5
6
7
8 9
8
9
7
