8

TAPCO TH-15A Features

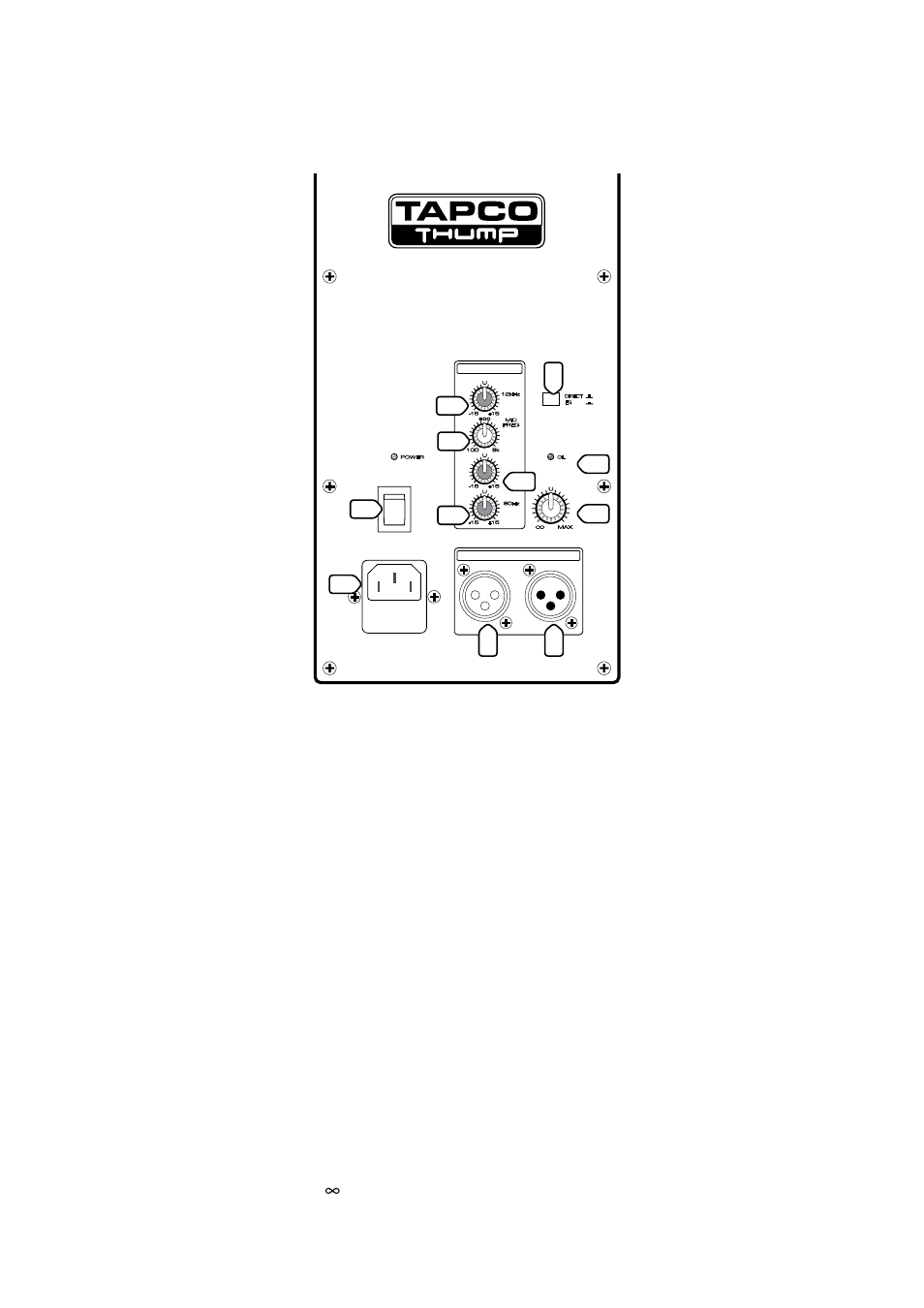

REAR PANEL DESCRIPTION

• The TH-15A is designed to operate with a

+4 dBu signal when the LEVEL control is at

the U (center) position.

• The TH-15A can accept up to a +20 dBu

signal by turning down the INPUT LEVEL

control accordingly.

• NEVER connect the output of an amplifier

directly to the input of the TH-15A. This

could damage the active input circuitry

of the loudspeaker.

4. OL Indicator

The OL (overload) indicator lights when

the amplifiers in the TH-15A are near the

clipping point. It is okay if the OL indicator

blinks occasionally, because this means that

the transient peaks are just reaching the

maximum output of the amplifiers and you

are getting the most from your TH-15As.

If the OL indicator is blinking frequently or

lighting continuously, turn down the LEVEL

control [3] on the TH15A or turn down the

signal at it source (e.g., the mixing console)

until the OL indicator blinks occasionally or

not at all.

U

POWER

OL

LEVEL

MID

FREQ

8k

100

+15

-15

U

+15

-15

U

HIGH

12kHz

LOW

80Hz

+15

-15

U

MID

DIRECT
EQ

OUT

EQ

IN

TH-15A

ACTIVE SOUND

REINFORCEMENT LOUDSPEAKER

MAX

O

1

6

7

8

9

10

11

3

4

5

This is where you connect your signal to

the loudspeaker and make adjustments to

the frequency response of the speaker to

match the loudspeaker’s location and your

room’s environment.

1. INPUT

This is a female XLR-type connector that

accepts a balanced mic or line-level signal

from a mixing console or other signal source.

. OUTPUT

This is a male XLR-type connector that

produces exactly the same signal that is

connected to the input jack. Use it to daisy-

chain several TH-15A’s together off the

same signal source.

3. LEVEL

The LEVEL control adjusts the overall

signal level at the input to the built-in power

amplifiers. It ranges from Off ( ) to MAX

(maximum gain), with unity gain at the

center position (12 o’clock).
