Data Sheet: Veta
iHA48040A033V*, 3.3V/40A Output Half Brick Series
©2007 TDK Innoveta Inc.
iHA Datasheet 040207
'
(877) 498-0099
4/17

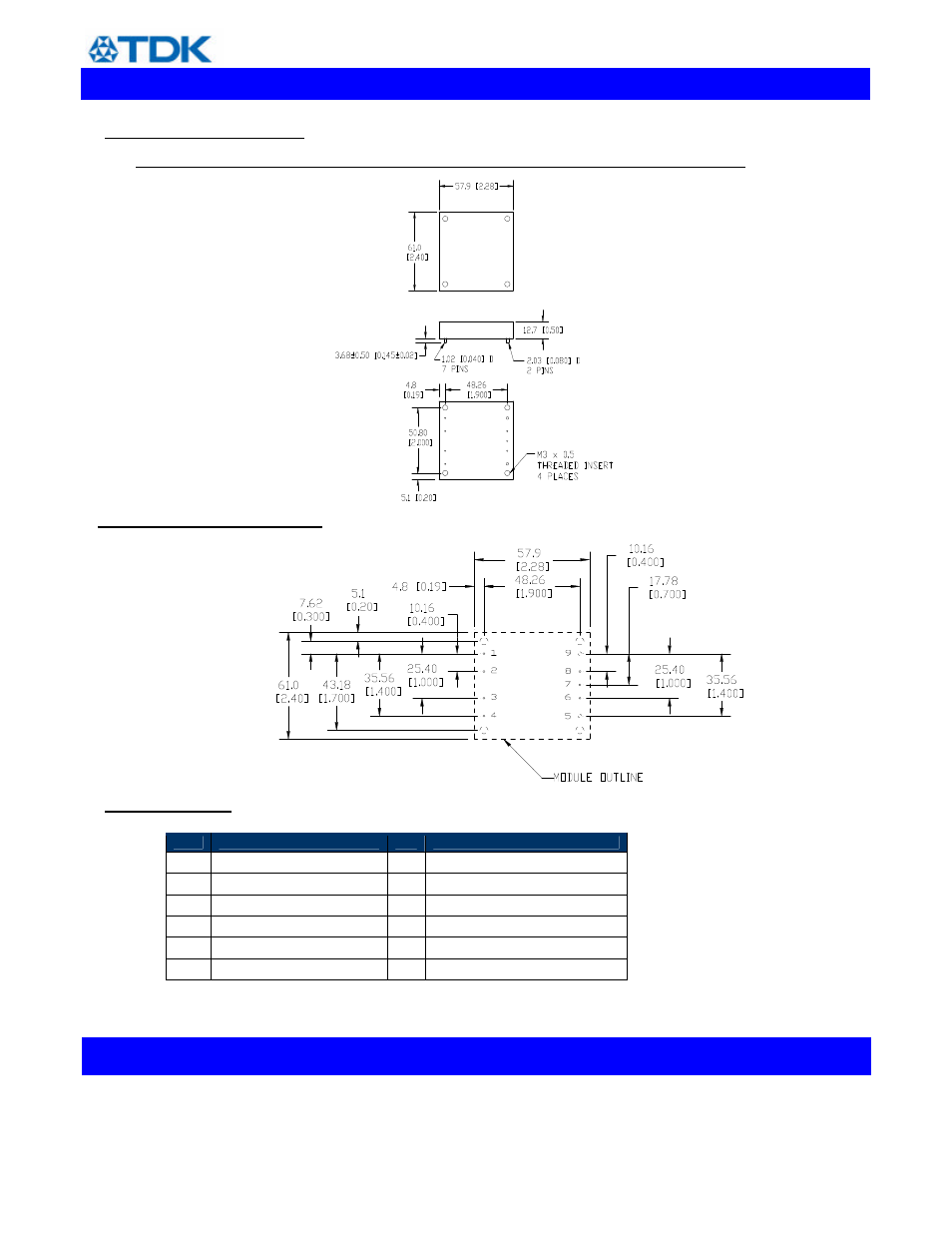

Mechanical Specification:
Unless otherwise specified tolerances are: x.x ± 0.5 mm [x.xx ± 0.02 in.], x.xx +/- 0.25 mm [x.xxx +/- 0.010 in.]
Recommended Hole Pattern:
(top view)
Pin Assignment:
PIN
FUNCTION
PIN
FUNCTION
1
Vin (+)
7
Trim
2
On/Off
8
Sense (+)
3
Case (Omit – optional)
9
Vout (+)
4
Vin (-)
5
Vout (-)
6
Sense (-)
