RT-PRC007-EN 36
Dimensional
Data

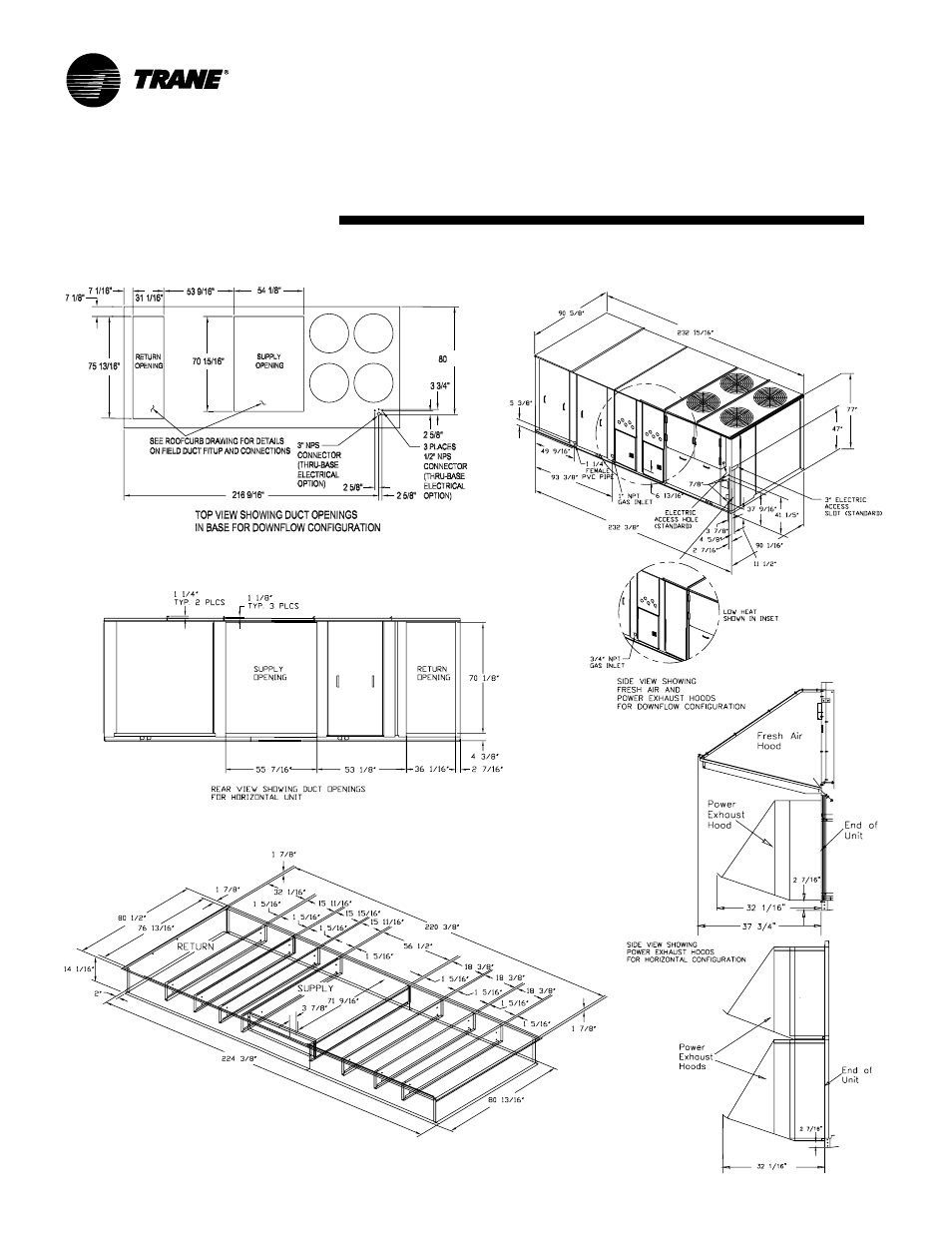

Figure DD-3 — 40-50 Tons (TC, TE, YC Low & High Heat) NOTES:
1. ALL DIMENSIONS INCHES.
2. THRU-BASE ELECTRICAL LOCATIONS
ARE PRESENT ONLY WHEN OPTION
IS ORDERED.
1/16
4”
NOTE: The Two Horizontal Power
Exhaust Hoods and the three
Horizontal Fresh Air Hoods are
located side by side. The Fresh
Air Hoods (not shown) only extend
23 15/16” from the end of the unit.
