TD-W8920G 108M Wireless ADSL2+ Router User Guide

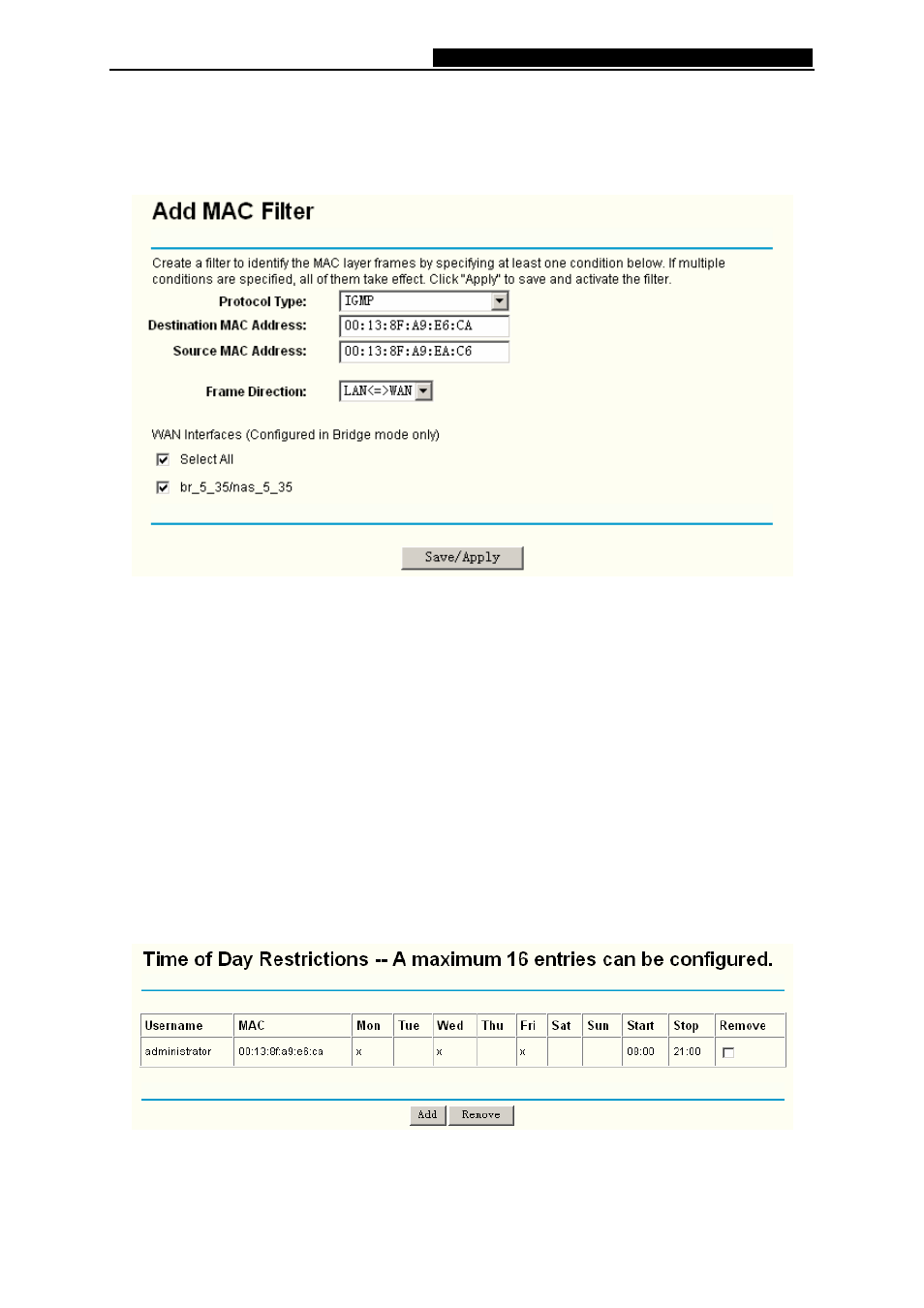

To setup a MAC Filtering rule:
1. Click the Add button (pop-up Figure 5-28), then you will set the new rule in the next screen
(shown in Figure 5-29).
Figure 5-29
2. Select Protocol Type in the drop-down list for the rule.
3. Enter Destination MAC Address and Source MAC Address in the text box.
4. Select Frame Direction in the drop-down list for the rule.
5. Select the WAN interfaces, you can leave the default settings also.
6. Click the Save/Apply button to save this entry.
Note:
MAC Filtering is only effective on ATM PVC(s) configured in Bridge mode.
5.4.4.3. Parental Control
Choose “Advanced Setup” Æ“Security”Æ“Parental Control”. You can configure the Parental
Control rules on the screen (shown in Figure 5-30). This section allows you add time of day
restriction to a special LAN device connected to the Router.
Figure 5-30
46
