TD-W8920G 108M Wireless ADSL2+ Router User Guide

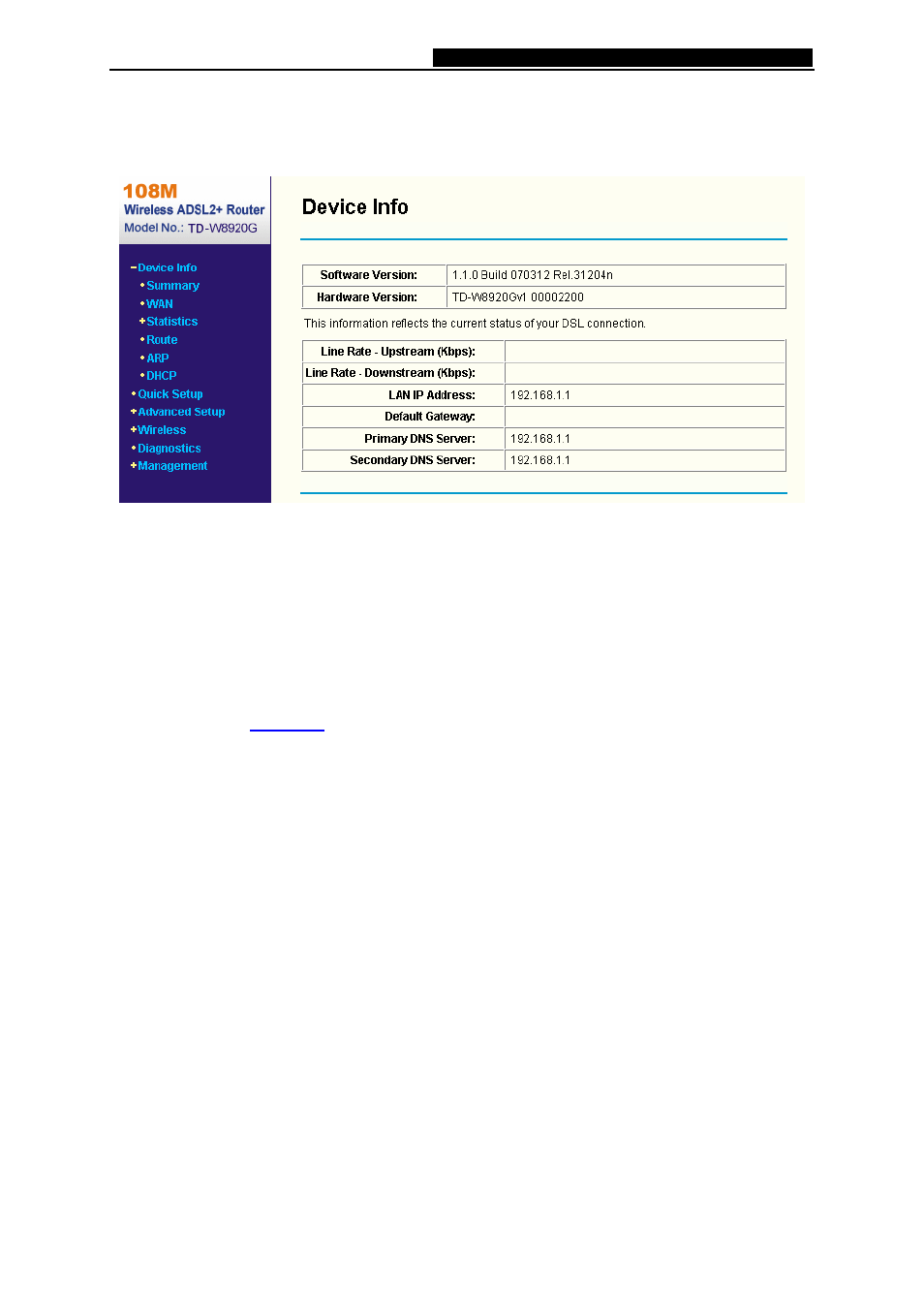

The first table indicates the information about the version including Software and Hardware, the
second table displays the current status of the TD-W8920G connection, this information will vary
depending on the settings of the Router configured on the Advanced Setup screen.
Figure 5-3
Note:
Click the other submenus under the main menu Device Info, you will be able to view the
corresponding information about WAN, Statistics, Route, ARP and DHCP.
5.3 Quick Setup
Please refer to the Chapter 4 to get the detailed information.
5.4 Advanced Setup
Choose “Advanced Setup”, there are many submenus under the main menu. Among the
submenus, WAN, LAN, Routing, DSL and Port Mapping are default menus, while NAT,
Security, Quality of Service and DNS will appear only when you select some corresponding
functions, click any one of them, and you will be able to configure the corresponding function.
This Advanced Setup section mainly introduces how to configure the Router for adequate use.
The detailed explanations for each subsection are provided below.
5.4.1 WAN
Choose “Advanced Setup” Æ“WAN”, and you will see the WAN screen (shown in Figure 5-4), the
section shows the configuration information of WAN port.
25
